Standard Grade Prism
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description
Prisms are essential components in the field of optics, known for their ability to manipulate light in various ways. These transparent optical blocks are crafted with precision, featuring at least two flat, polished sides that are inclined at controlled angles. This unique design allows prisms to deflect, deviate, and rotate beams of light, as well as disperse their wavelengths. Each type of prism is shaped to perform specific optical tasks, making them invaluable in a wide range of applications.
Tower Optical is renowned for its extensive range of high-quality prisms, including Penta Prisms, Right Angle Prisms, Dove Prisms, Roof Prisms, Corner Cube Reflectors, Anamorphic Prisms, Wedge Prisms, and specialized polarizers such as Glan-Taylor Prisms, Wollaston Prisms, and Rochon Prisms. These prisms are meticulously crafted to meet the diverse needs of various industries, ensuring optimal performance and reliability.
For those seeking right angle prisms, Tower Optical offers three distinct quality standards: Standard Grade, High Grade, and Laser Grade. Each grade is designed to meet specific requirements, with variations in dimensional tolerance, flatness, surface quality, angle tolerance, pyramid error, and bevel specifications. Additionally, these prisms are available in UV grade Fused Silica and other materials, with optional optical coatings for anti-reflection, mirror, or beamsplitter applications.
At Tower Optical, customization is key. We offer custom versions of all our products, tailored to your specific drawings or specifications. Our commitment to quality and precision ensures that every prism we produce meets the highest standards, providing you with the tools you need for success in your optical endeavors.

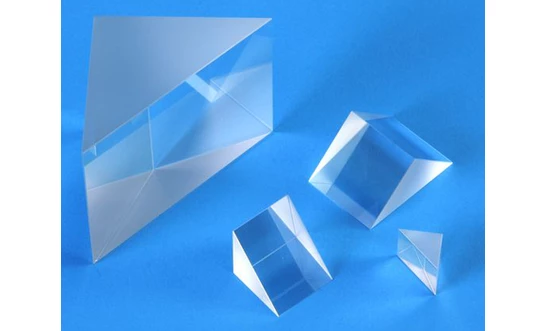

Standard Grade Prism
Specifications |
|
|---|---|
| Material: | BK7 |
| Dimensions (A): | 25 mm |
| Dimensions (B): | 25 mm |
| Dimensions (C): | 25 mm |
| Dimensional Tolerance: | ±0.2mm |
| Flatness: | λ/2 @ 632.8nm |
| Surface Quality: | 60/40 Scratch/Dig |
| Angle Tolerance: | ±3 arc minutes |
| Pyramid Error: | < 10 arc minutes |
| Bevel: | 0.2~0.5mm x 45° |
Features
- High-Quality Optical Prisms: Tower Optical offers a wide range of prisms, including Penta Prisms, Right Angle Prisms, Dove Prisms, Roof Prisms, Corner Cube Reflectors, Anamorphic Prisms, Wedge Prisms, and Polarizers such as Glan-Taylor Prisms, Wollaston Prisms, and Rochon Prisms.
- Material: All prisms are made from BK7 grade A glass, ensuring superior optical performance.
- Dimensional Tolerance: Available in three quality standards with tolerances of ±0.2mm for Standard Grade and ±0.1mm for both High Grade and Laser Grade.
- Flatness: Achieve precise optical performance with flatness specifications of λ/2 @ 632.8nm for Standard Grade, λ/4 @ 632.8nm for High Grade, and λ/10 @ 632.8nm for Laser Grade.
- Surface Quality: Enhanced surface quality with 60/40 Scratch/Dig for Standard Grade, 40/20 Scratch/Dig for High Grade, and 20/10 Scratch/Dig for Laser Grade.
- Angle Tolerance: Precision angle tolerance of ±3 arc minutes for Standard Grade and ±30 arc seconds for both High Grade and Laser Grade.
- Pyramid Error: Minimized pyramid error of < 10 arc minutes for Standard and High Grades, and < 5 arc minutes for Laser Grade.
- Bevel: Bevel specifications include 0.2~0.5mm x 45° for Standard and High Grades, and 0.25mm x 45° for Laser Grade.
- Material Options: Prisms are also available in UV grade Fused Silica and other materials.
- Optical Coatings: Custom optical coatings are available for AR, Mirror, or beamsplitter applications.
- Customization: Custom versions are available upon request. Send your drawings or specifications for a quotation.
Applications
- Optical Systems: Beam deflection, deviation, and reflection in imaging and instrumentation.
- Laser Optics: High-precision alignment and beam steering in laser setups.
- Scientific Research: Accurate light manipulation for laboratory experiments.
- Metrology & Sensing: Ensures precision in measurement and inspection systems.
- Imaging Devices: Used in cameras, telescopes, and microscopy for image rotation.
Frequently Asked Questions
A prism is a transparent optical block with at least two flat polished sides inclined relative to each other, used to deflect, deviate, and rotate beams of light as well as dispersing their wavelengths.
Tower Optical offers Penta Prisms, Right Angle Prisms, Dove Prisms Roof Prisms, Corner Cube Reflectors, Anamorphic Prisms, Wedge Prisms and Polarizers called Glan-Taylor Prisms, Wollaston Prisms and Rochon Prisms.
Tower Optical offers three different quality standards for right angle prisms: Standard Grade, High Grade and Laser Grade.
The basic specifications for the Standard Grade right angle prism are: Material - BK7 grade glass, Dimensional Tolerance - ±0.2mm, Flatness - λ/2 @ 632.8nm, Surface Quality - 60/40 Scratch/Dig.
The contact information for Tower Optical is: Email - sales@toweroptical.com, Phone - 1-561-740-2525.
