Description
The OPTOMAN PP-UVFS-38.1-6.35-LLM270 is a premium non-degrading UV laser mirror engineered for demanding 355 nm laser applications. Manufactured on a UV fused silica substrate and coated using advanced Ion Beam Sputtering (IBS) technology, this mirror delivers greater than 99.5% reflectivity at a 45° angle of incidence while maintaining exceptional resistance to laser-induced degradation.
Its precision optical surface, featuring better than λ/8 flatness over a 25 mm aperture, ensures outstanding beam quality, making it ideal for high-power UV laser systems used in scientific research, precision manufacturing, semiconductor processing, and medical laser equipment. The durable IBS coating provides excellent environmental stability, low absorption, and long-term optical performance even in continuous industrial operation.

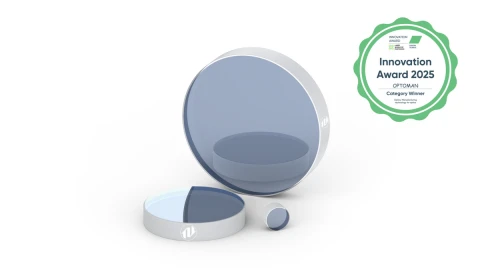

PP-UVFS-38.1-6.35-LLM270 Non-Degrading 355 nm UV Laser Mirror
Specifications
| Substrate Material: | UV Fused Silica |
|---|---|
| Diameter: | 38.1 mm |
| Thickness: | 6.35 mm |
| Wavelength Range: | 355 – 355 nm |
| Angle Of Incidence (AOI): | 45 – 45 deg |
| Surface Quality, S1 (scratch-dig): | 20-10 |
| Surface Quality, S2 (scratch-dig): | 20-10 |
| Surface Flatness Over CA, S1 (@633 Nm Or Per Manufacturer): | Lambda/8 |
| Surface Flatness Over CA, S2 (@633 Nm Or Per Manufacturer): | Unspecified |
| Parallelism: | 5 arcmin |
| S1 Surface: | Coated |
| S2 Surface: | Uncoated |
| Reflectivity (HRa @ AOI, @ Peak Wavelength): | 99.5 % |
| Manufacturer Part Number (MPN): | PP-UVFS-38.1-6.35-LLM270 |
| FindLight SKU: | FL-24550 |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Manufacturer Part Number: PP-UVFS-38.1-6.35-LLM270
- Non-degrading high-reflectivity coating optimized for 355 nm UV lasers
- Greater than 99.5% reflectivity at 45° angle of incidence
- Precision 38.1 mm diameter with 6.35 mm thickness
- UV fused silica substrate for excellent thermal and optical stability
- Surface flatness < λ/8 over 25 mm clear aperture for superior wavefront preservation
- Advanced Ion Beam Sputtering (IBS) coating technology for low absorption and high durability
- Designed for high-power, pulsed, Q-switched, and industrial UV laser systems
- Excellent resistance to humidity, temperature changes, and mechanical wear
Applications
- UV laser micromachining
- Semiconductor wafer processing
- PCB drilling and laser trimming
- Medical and ophthalmic laser systems
- Scientific laser research laboratories
- Precision spectroscopy instruments
- Industrial laser beam delivery
- Laser material processing and engraving
- OEM UV laser integration
- High-power photonics systems
Export & Trade Information
| ECCN: | EAR99 |
|---|---|
| HTS Code: | 9001.90.6000 |
| Estimated US Tariff: | 10% |
