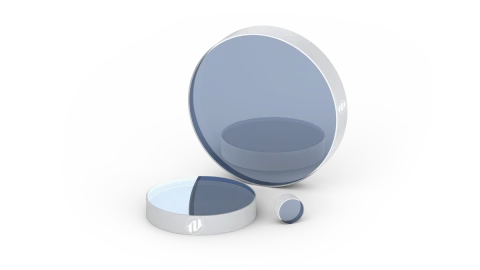

Thumbnail of PP-UVFS-25.4-3.1-MW51 Multiwavelength IBS Laser Mirror photo 1
Thumbnail of PP-UVFS-25.4-3.1-MW51 Multiwavelength IBS Laser Mirror photo 2
Thumbnail of PP-UVFS-25.4-3.1-MW51 Multiwavelength IBS Laser Mirror photo 3

Description

The OPTOMAN PP-UVFS-25.4-3.1-MW51 is a premium multiwavelength laser mirror engineered for demanding industrial, scientific, and OEM laser systems. Manufactured on a UV fused silica substrate and coated using advanced Ion Beam Sputtering (IBS) technology, it delivers exceptional reflectivity at 1064 nm, 532 nm, and 635–650 nm while maintaining outstanding optical stability and durability.

Designed for a 45° angle of incidence, this mirror is ideal for beam steering in Nd:YAG laser platforms where multiple laser wavelengths are present simultaneously.Its precision-polished optical surface, excellent flatness, low scatter characteristics, and high coating reliability make it an excellent choice for laser marking, micromachining, medical instrumentation, spectroscopy, and research applications requiring consistent long-term performance.

PP-UVFS-25.4-3.1-MW51 Multiwavelength IBS Laser Mirror

Visit the Optoman Store

Specifications

Substrate Material: UV Fused Silica
Diameter: 25.4 mm
Thickness: 3.1 mm
Wavelength Range: 1064 – 1064 nm
Angle Of Incidence (AOI): 45 – 45 deg
Surface Quality, S1 (scratch-dig): 20-10
Surface Quality, S2 (scratch-dig): Inspection Polished
Surface Flatness Over CA, S1 (@633 Nm Or Per Manufacturer): Lambda/8
Surface Flatness Over CA, S2 (@633 Nm Or Per Manufacturer): Unspecified
Parallelism: 5 arcmin
S1 Surface: Coated
S2 Surface: Uncoated
Reflectivity (HRs @ AOI, @ Peak Wavelength): 99.9 %
Reflectivity (HRp @ AOI, @ Peak Wavelength): 99.4 %
Manufacturer Part Number (MPN): PP-UVFS-25.4-3.1-MW51
FindLight SKU: FL-24558

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Multiwavelength IBS dielectric coating optimized for 1064 nm, 532 nm, and 635–650 nm
  • High reflectivity exceeding 99.9% at 1064 nm, 99.8% at 532 nm, and 95% at 635–650 nm
  • Precision UV fused silica substrate for excellent thermal and optical stability
  • Designed for 45° angle of incidence in laser beam delivery systems
  • 25.4 mm diameter with 3.1 mm thickness for compatibility with standard optomechanical mounts
  • High-quality optical finish featuring 20-10 scratch-dig on the coated surface● Low-scatter Ion Beam Sputtering coating technology for long operational lifetime
  • Suitable for industrial, medical, scientific, and OEM laser integration

Applications

  • Nd:YAG laser beam steering
  • Laser marking and engraving systems
  • Laser micromachining equipment
  • Medical laser instruments
  • Precision spectroscopy setups
  • Scientific research laboratories
  • Optical alignment systems
  • Multiwavelength laser beam delivery
  • Semiconductor and electronics manufacturing
  • OEM photonics and laser integration

Export & Trade Information

ECCN: EAR99
HTS Code: 9001.90.6000
Estimated US Tariff: 10%

Importing, tariffs & codes (Quick Guide) →

Frequently Asked Questions

What wavelengths is the PP-UVFS-25.4-3.1-MW51 optimized for?
The mirror is designed to provide high reflectivity at 1064 nm, 532 nm, and throughout the 635–650 nm wavelength range, making it ideal for systems utilizing fundamental and second-harmonic Nd:YAG laser wavelengths together with visible alignment lasers.
Why is Ion Beam Sputtering (IBS) coating beneficial?
IBS coatings produce dense, low-loss optical films with excellent environmental stability, minimal scattering, and outstanding long-term durability. These characteristics help maintain consistent optical performance even in demanding laser applications.
What laser systems can this mirror be used with?
This mirror is suitable for a broad range of Nd:YAG-based laser systems operating at 1064 nm and 532 nm, particularly those incorporating a visible red alignment beam between 635 and 650 nm. It is commonly integrated into laser marking, micromachining, and scientific laser platforms.
Is this mirror intended for 45° beam steering?
Yes. The optical coating is specifically optimized for operation at a 45° angle of incidence, ensuring high reflectivity and stable performance in standard folded optical paths and beam delivery systems.
What industries commonly use this laser mirror?
The PP-UVFS-25.4-3.1-MW51 is widely applicable in industrial laser manufacturing, photonics research, medical devices, semiconductor processing, precision instrumentation, and OEM laser equipment where reliable multiwavelength reflection is required.

Got more questions? Use the inquiry form to ask the supplier directly.
