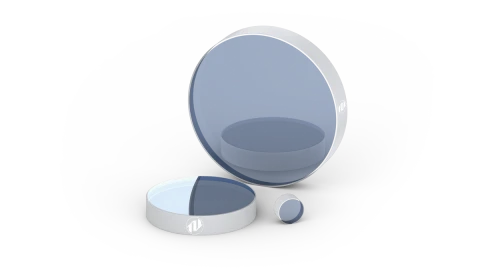

PP-UVFS-25.0-6.35-MW64 Multiwavelength Laser Mirror

Name: PP-UVFS-25.0-6.35-MW64 Multiwavelength Laser Mirror
Brand: Optoman
SKU: FL-24560
Price: 511.00 USD
Availability: InStock

Description

The OPTOMAN PP-UVFS-25.0-6.35-MW64 Multiwavelength Laser Mirror is a precision optical component designed for demanding laser systems requiring efficient reflection across multiple wavelength regions. Manufactured from high-quality UV fused silica substrate, this 25 mm class mirror features an ion beam sputtered (IBS) dielectric coating that provides excellent reflectivity, low optical losses, and reliable performance under high-power laser conditions.

With its optimized surface quality, high dimensional accuracy, and durable coating structure, the PP-UVFS-25.0-6.35-MW64 is suitable for advanced photonics applications including laser beam delivery, optical research systems, industrial laser platforms, and precision instrumentation. Its UV fused silica construction provides excellent thermal stability and broad spectral performance for demanding optical environments.

Specifications

Substrate Material:	UV Fused Silica
Diameter:	25 mm
Thickness:	6.35 mm
Wavelength Range:	1064 – 1064 nm
Angle Of Incidence (AOI):	45 – 45 deg
Surface Quality, S1 (scratch-dig):	20-10
Surface Quality, S2 (scratch-dig):	Inspection Polished
Surface Flatness Over CA, S1 (@633 Nm Or Per Manufacturer):	Lambda/8
Surface Flatness Over CA, S2 (@633 Nm Or Per Manufacturer):	Unspecified
Parallelism:	0.17 arcmin
S1 Surface:	Coated
S2 Surface:	Uncoated
Reflectivity (HRs @ AOI, @ Peak Wavelength):	99.9 %
Reflectivity (HRp @ AOI, @ Peak Wavelength):	99.8 %
Manufacturer Part Number (MPN):	PP-UVFS-25.0-6.35-MW64
FindLight SKU:	FL-24560

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

High-Performance Multiwavelength Reflection – Designed for efficient laser beam management across multiple wavelength ranges, providing flexibility for advanced optical setups.
UV Fused Silica Substrate – Provides excellent transmission characteristics, thermal stability, and resistance to laser-induced degradation.
Ion Beam Sputtered (IBS) Coating – Advanced dielectric coating technology enables high reflectivity, low absorption, and long-term optical reliability.
Precision Optical Surface Quality – Manufactured with tight surface specifications to minimize scattering and maintain beam quality.
High Laser Damage Resistance – Optimized coating performance supports demanding high-power and high-energy laser applications.
Compact 25 mm Diameter Format – A convenient optical size for integration into laboratory and industrial laser assemblies.

Applications

Laser Beam Steering Systems – Used for directing and controlling laser paths in precision optical assemblies.
Industrial Laser Processing – Suitable for laser cutting, marking, engraving, and material processing systems requiring reliable optical components.
Scientific Research Instruments – Supports advanced laser experiments, spectroscopy, and photonics research platforms.
Ultrafast and High-Power Laser Systems – Designed for applications where low optical loss and stable reflection performance are critical.
Optical Alignment and Calibration Equipment – Provides accurate beam positioning in complex optical setups.

Export & Trade Information

ECCN:	EAR99
HTS Code:	9001.90.6000
Estimated US Tariff:	10%

Importing, tariffs & codes (Quick Guide) →

$511.00

Volume Pricing:

Qty	Unit Price	Extended Price
5	$485.45	$2,427.25
10	$434.35	$4,343.50

Discounts apply automatically in cart.

Shipping:: $75.00 ⓘ
Ships from:: Lithuania
Est. US Tariff:: $51.10 ⓘ
Processing:: 1 days (Est. arrival by Nov 6)
Delivers to:: United States

Made by:: Optoman
Made in:: Lithuania
Warranty:: View full terms
Returns:: View return policy
Sold by:: Optoman
On FindLight:: since 2026

Got Questions? Ask Below ▼

Message the supplier directly
No signup or account needed
Expect a fast reply

Ask a Question

To: Optoman
Re: PP-UVFS-25.0-6.35-MW64 Multiwavelength Laser Mirror

Name

Work Email

Organization

Country

Qty.

Your message to supplier

Thank you, your message was sent successfully.

Frequently Asked Questions

What type of optical component is the OPTOMAN PP-UVFS-25.0-6.35-MW64?

The OPTOMAN PP-UVFS-25.0-6.35-MW64 is a multiwavelength laser mirror manufactured using a UV fused silica substrate with an advanced dielectric coating designed for high-performance laser reflection applications.

What material is used for the PP-UVFS-25.0-6.35-MW64 mirror substrate?

This laser mirror uses UV fused silica, a material widely selected for laser optics because of its excellent thermal stability, low expansion characteristics, and reliable performance across a broad wavelength range.

What coating technology is used on this OPTOMAN laser mirror?

The mirror utilizes ion beam sputtering (IBS) coating technology, which provides highly durable optical coatings with excellent reflectivity, low absorption, and strong resistance to demanding laser environments.

Can the PP-UVFS-25.0-6.35-MW64 be used in high-power laser systems?

Yes. The mirror is designed for demanding laser applications where high optical efficiency, coating durability, and resistance to laser-induced damage are important performance requirements.

What are common applications for this multiwavelength laser mirror?

Typical applications include laser beam delivery systems, industrial laser equipment, scientific research setups, spectroscopy instruments, and precision photonics systems requiring reliable wavelength-selective reflection.
