Description
The OPTOMAN PP-UVFS-25.4-6.35-MW50 is a premium ion beam sputtered (IBS) multiwavelength laser mirror engineered for demanding Er:YAG laser systems. Designed with a UV fused silica substrate and optimized for a 45Β° angle of incidence, it delivers greater than 99% reflectivity at both 2940 nm and 1535 nm, while maintaining over 85% transmission at 635 nm for visible aiming beam alignment. This unique coating combination makes it an excellent solution for medical laser systems and other precision photonic applications requiring simultaneous infrared reflection and visible beam transmission.
Manufactured to stringent optical quality standards, the mirror features excellent surface quality, high flatness, and stable coating performance for reliable operation in high-performance laser environments. The durable IBS coating technology ensures long-term optical stability and consistent performance under demanding operating conditions. Product specifications are based on the manufacturer's published data.

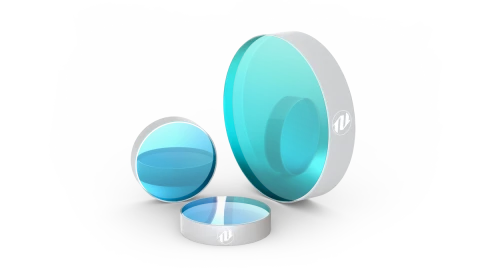

PP-UVFS-25.4-6.35-MW50 Multiwavelength IBS Laser Mirror
Specifications
| Substrate Material: | UV Fused Silica |
|---|---|
| Diameter: | 25.4 mm |
| Thickness: | 6.35 mm |
| Wavelength Range: | 2940 β 2940 nm |
| Angle Of Incidence (AOI): | 45 β 45 deg |
| Surface Quality, S1 (scratch-dig): | 20-10 |
| Surface Quality, S2 (scratch-dig): | Inspection Polished |
| Surface Flatness Over CA, S1 (@633 Nm Or Per Manufacturer): | Lambda/4 |
| Surface Flatness Over CA, S2 (@633 Nm Or Per Manufacturer): | Unspecified |
| Parallelism: | 0.5 arcmin |
| S1 Surface: | Coated |
| S2 Surface: | Uncoated |
| Reflectivity (HRa @ AOI, @ Peak Wavelength): | 99 % |
| Manufacturer Part Number (MPN): | PP-UVFS-25.4-6.35-MW50 |
| FindLight SKU: | FL-24531 |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Manufacturer Part Number: PP-UVFS-25.4-6.35-MW50
- High Reflectivity: >99% at 2940 nm and 1535 nm
- Visible Beam Transmission: >85% transmission at 635 nm for alignment lasers
- Optimized for 45Β° Angle of Incidenceβ Ion Beam Sputtered (IBS) Coating for exceptional durability and optical stability
- UV Fused Silica (UVFS) Substrate with excellent optical performance
- 25.4 mm Diameter with 6.35 mm Thickness
- 20 mm Minimum Clear Aperture
- Surface Quality: 20-10 Scratch-Dig
- Surface Flatness: Better than Ξ»/4 at 633 nm over 15 mm clear aperture
- Uncoated Rear Surface for flexible system integration
- Designed for High-Precision Medical and Industrial Laser Systems
Applications
- Er:YAG medical laser systems
- Dermatology and aesthetic laser equipment
- Dental laser instruments
- Surgical laser beam delivery systems
- Multiwavelength infrared laser systems
- Laser beam steering assemblies
- Optical research laboratories
- Scientific instrumentation
- Precision photonics and OEM laser integration
- Visible beam alignment systems using 635 nm aiming lasers
Export & Trade Information
| ECCN: | EAR99 |
|---|---|
| HTS Code: | 9001.90.6000 |
| Estimated US Tariff: | 10% |
Frequently Asked Questions
What is the primary purpose of the PP-UVFS-25.4-6.35-MW50 laser mirror?
Why is IBS coating beneficial?
Can this mirror be used with visible alignment lasers?
What optical substrate is used?
Is this mirror suitable for custom laser equipment integration?
Got more questions? Use the inquiry form to ask the supplier directly.
