Description
The OPTOMAN PP-UVFS-25.4-6.35-LLM395 is a high-performance 1064 nm laser mirror engineered for demanding Nd:YAG laser systems and high-intensity beam steering applications. Featuring a UV fused silica substrate and an ion beam sputtered (IBS) high-reflectivity coating, this optical mirror provides exceptional reflectance above 99.9% at a 45° angle of incidence while maintaining superior durability under high laser power conditions.
Designed as part of OPTOMAN’s SuperHero Power mirror series, this 25.4 mm diameter mirror delivers outstanding laser-induced damage resistance with an LIDT greater than 60 J/cm² at 1064 nm, 10 ns, and 100 Hz. Its precision surface quality, excellent flatness, and low scattering performance make it suitable for industrial laser processing, scientific research, and advanced photonics systems requiring reliable optical beam control.

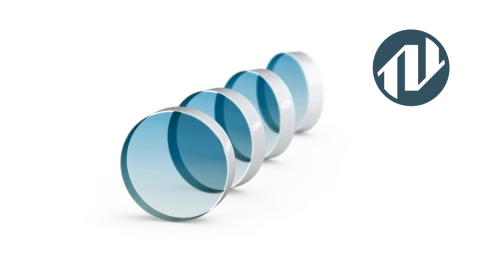

PP-UVFS-25.4-6.35-LLM395 1064nm High Power Laser Mirror
Specifications
| Substrate Material: | UV Fused Silica |
|---|---|
| Diameter: | 25.4 mm |
| Thickness: | 6.35 mm |
| Wavelength Range: | 1064 – 1064 nm |
| Angle Of Incidence (AOI): | 45 – 45 deg |
| Surface Quality, S1 (scratch-dig): | 10-5 |
| Surface Quality, S2 (scratch-dig): | Unspecified |
| Surface Flatness Over CA, S1 (@633 Nm Or Per Manufacturer): | Lambda/10 |
| Surface Flatness Over CA, S2 (@633 Nm Or Per Manufacturer): | Unspecified |
| Parallelism: | 0.17 arcmin |
| S1 Surface: | Coated |
| S2 Surface: | Uncoated |
| Reflectivity (HRa @ AOI, @ Peak Wavelength): | 99.9 % |
| Manufacturer Part Number (MPN): | PP-UVFS-25.4-6.35-LLM395 |
| FindLight SKU: | FL-24530 |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- High reflectivity exceeding 99.9% at 1064 nm wavelength for efficient laser beam transmission and minimal energy loss.
- UV fused silica substrate provides excellent thermal stability, low expansion characteristics, and superior optical performance.
- Ion beam sputtered (IBS) high-reflectivity coating ensures coating durability and long-term reliability.
- High laser-induced damage threshold (LIDT) supports demanding high-power pulsed laser applications.
- Optimized for 45° angle of incidence beam reflection in precision laser systems.
- Precision surface quality with excellent flatness and low scatter for accurate optical alignment.
- Compact 25.4 mm diameter design suitable for integration into various laser assemblies.
Applications
- High-power Nd:YAG laser systems operating at the 1064 nm fundamental wavelength.
- Industrial laser processing equipment including laser marking, engraving, welding, and cutting systems.
- Medical laser platforms requiring stable and reliable beam steering optics.
- Scientific research lasers and laboratory optical setups.
- Laser beam delivery systems, optical cavities, and precision photonics assemblies.
- Advanced manufacturing and high-energy laser applications requiring durable high-reflectivity mirrors.
Export & Trade Information
| ECCN: | EAR99 |
|---|---|
| HTS Code: | 9001.90.6000 |
| Estimated US Tariff: | 10% |
Frequently Asked Questions
What wavelength is the OPTOMAN PP-UVFS-25.4-6.35-LLM395 designed for?
What is the reflectivity of this high-power laser mirror?
What substrate material is used in this laser mirror?
Can this mirror handle high-power pulsed laser operation?
What are the typical applications of this OPTOMAN laser mirror?
