Description

The OPTOMAN PP-UVFS-25.4-6.35-LLM391 is a precision-engineered high-reflectivity laser mirror designed for demanding laser applications operating at 1900 nm. Fabricated on a premium UV fused silica substrate and enhanced with a durable Ion Beam Sputtered (IBS) dielectric coating, this optic delivers greater than 99.5% reflectivity at normal incidence (0° AOI) while maintaining exceptionally low optical losses and outstanding long-term stability. The dense IBS coating provides excellent resistance to humidity, temperature fluctuations, and mechanical wear, making the mirror suitable for both laboratory research and industrial laser environments.Manufactured to tight optical tolerances, the mirror features a 25.4 mm diameter, 6.35 mm thickness, λ/10 surface flatness, and a high-quality 10-5 scratch-dig surface finish, ensuring minimal wavefront distortion and low scatter. These characteristics make it an ideal choice for precision optical systems where beam quality and alignment stability are critical.The PP-UVFS-25.4-6.35-LLM391 is well suited for integration into thulium fiber lasers, solid-state laser systems, optical resonators, beam delivery assemblies, spectroscopy instruments, and advanced photonics equipment. Its combination of high reflectivity, excellent thermal performance, and robust coating durability makes it a reliable solution for OEM manufacturers, research laboratories, medical laser developers, and industrial laser integrators seeking consistent optical performance under demanding operating conditions. Designed to deliver long service life and dependable performance, this mirror is an excellent component for next-generation near-infrared laser systems operating around the 1900 nm wavelength.

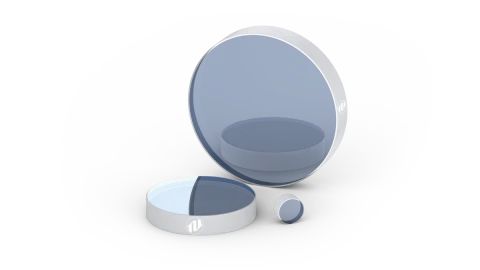

PP-UVFS-25.4-6.35-LLM391 High Reflectivity 1900 nm Laser Mirror,

Specifications

Substrate Material: UV Fused Silica
Diameter: 25.4 mm
Thickness: 6.35 mm
Wavelength Range: 1900 – 1900 nm
Angle Of Incidence (AOI): 0 – 0 deg
Surface Quality, S1 (scratch-dig): 10-5
Surface Quality, S2 (scratch-dig): Unspecified
Surface Flatness Over CA, S1 (@633 Nm Or Per Manufacturer): Lambda/10
Surface Flatness Over CA, S2 (@633 Nm Or Per Manufacturer): Unspecified
Parallelism: 0.17 arcmin
S1 Surface: Coated
S2 Surface: Uncoated
Reflectivity (HRa @ AOI, @ Peak Wavelength): 99.5 %
Manufacturer Part Number (MPN): PP-UVFS-25.4-6.35-LLM391
FindLight SKU: FL-24538

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Manufacturer Part Number: PP-UVFS-25.4-6.35-LLM391
  • Optimized for 1900 nm near-infrared laser systems
  • High reflectivity >99.5% at 1900 nm, 0° angle of incidence
  • Durable Ion Beam Sputtered (IBS) coating for superior environmental stability
  • UV fused silica substrate with excellent thermal and mechanical properties
  • Precision 25.4 mm diameter and 6.35 mm thickness
  • Surface flatness better than λ/10 @ 633 nm over any 10 mm area within the clear aperture
  • High-quality 10-5 scratch-dig coated surface for minimal scattering
  • Low absorption coating suitable for high average power laser operation
  • Ideal for scientific research, industrial laser integration, and OEM optical assemblies

Applications

  • Thulium fiber laser systems
  • 1900 nm medical laser equipment
  • Mid-infrared and near-infrared optical systems
  • Laser resonators and optical cavities
  • High-power laser beam delivery
  • Precision beam steering and folding optics
  • Industrial laser processing systems
  • Spectroscopy instrumentation
  • Scientific and university research laboratories
  • OEM laser manufacturing and photonics integration

Export & Trade Information

ECCN: EAR99
HTS Code: 9001.90.6000
Estimated US Tariff: 10%

Importing, tariffs & codes (Quick Guide) →

Frequently Asked Questions

What wavelength is the PP-UVFS-25.4-6.35-LLM391 optimized for?
This laser mirror is specifically designed for maximum performance at 1900 nm, providing reflectivity greater than 99.5% at normal (0°) incidence for near-infrared laser applications.
What coating technology is used on this mirror?
The mirror features a high-performance Ion Beam Sputtered (IBS) dielectric coating, which offers excellent coating density, low optical absorption, outstanding environmental durability, and stable long-term performance.
Can this mirror be used in high-power laser systems?
Yes. The IBS coating is designed to minimize optical losses and withstand demanding operating conditions, making the mirror well suited for high-power and high-average-power laser applications around 1900 nm.
What optical substrate is used?
The optic is manufactured from high-quality UV fused silica, chosen for its excellent transmission, low thermal expansion, outstanding optical homogeneity, and high resistance to laser-induced thermal effects.
What applications is this mirror best suited for?
The PP-UVFS-25.4-6.35-LLM391 is ideal for thulium laser systems, beam steering, optical cavities, laser resonators, spectroscopy, scientific research, industrial laser processing, and OEM photonics equipment requiring reliable high reflectivity at 1900 nm.

Got more questions? Use the inquiry form to ask the supplier directly.
