Description
The OPTOMAN PP-UVFS-25.4-6.35-LLM323 is a high-performance deep ultraviolet (DUV) laser mirror designed for precision beam steering applications at a wavelength of 206 nm. Manufactured with a UV-grade fused silica substrate and coated using advanced ion beam sputtering (IBS) technology, this optical mirror delivers high reflectivity, low absorption, and excellent long-term stability for demanding UV laser systems.
Featuring a 25.4 mm diameter and 6.35 mm thickness, the mirror is optimized for operation at a 45° angle of incidence and provides reflectivity above 98% at 206 nm. The high-quality fused silica substrate offers excellent surface flatness, thermal stability, and durability, making it suitable for advanced deep-UV applications requiring accurate optical alignment and reliable performance.
The IBS dielectric coating technology used in this DUV mirror minimizes optical losses while providing enhanced resistance against environmental degradation, helping maintain consistent performance in high-precision laser environments.

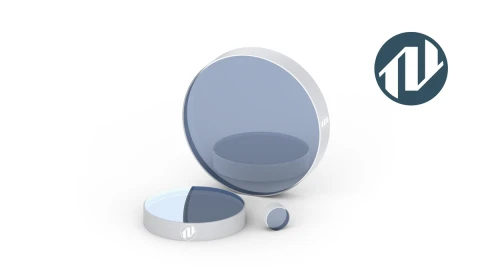

PP-UVFS-25.4-6.35-LLM323 206nm Deep UV Laser Mirror with IBS Coating
Specifications
| Substrate Material: | UV Fused Silica |
|---|---|
| Diameter: | 25.4 mm |
| Thickness: | 6.35 mm |
| Wavelength Range: | 206 – 206 nm |
| Angle Of Incidence (AOI): | 45 – 45 deg |
| Surface Quality, S1 (scratch-dig): | 10-5 |
| Surface Quality, S2 (scratch-dig): | Inspection Polished |
| Surface Flatness Over CA, S1 (@633 Nm Or Per Manufacturer): | Lambda/10 |
| Surface Flatness Over CA, S2 (@633 Nm Or Per Manufacturer): | Unspecified |
| Parallelism: | 0.17 arcmin |
| S1 Surface: | Coated |
| S2 Surface: | Uncoated |
| Reflectivity (HRa @ AOI, @ Peak Wavelength): | 98.6 % |
| Manufacturer Part Number (MPN): | PP-UVFS-25.4-6.35-LLM323 |
| FindLight SKU: | FL-24540 |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- High reflectivity at 206 nm wavelength with optimized IBS dielectric coating for efficient deep UV laser beam reflection and reduced optical losses.
- UV fused silica substrate provides excellent thermal stability, low expansion, and reliable performance in demanding ultraviolet environments.
- Ion beam sputtered (IBS) coating technology ensures high durability, low absorption, and long-term optical stability.
- Precision optical polishing delivers excellent surface quality for accurate beam alignment and consistent performance.
- Optimized design for 45° angle of incidence applications in deep UV laser systems.
- Compact 25.4 mm diameter format allows easy integration with standard optical mounts and laser assemblies.
Applications
- Deep UV laser beam steering and beam folding applications requiring high-efficiency optical reflection at 206 nm.
- Semiconductor inspection, metrology, and manufacturing systems that rely on stable deep UV optical components.
- UV laser micromachining processes requiring precise beam control and minimal optical losses.
- Photolithography, UV imaging, and alignment systems using deep ultraviolet illumination.
- Scientific research instruments and industrial photonics systems requiring reliable DUV mirror performance.
Export & Trade Information
| ECCN: | EAR99 |
|---|---|
| HTS Code: | 9001.90.6000 |
| Estimated US Tariff: | 10% |
Frequently Asked Questions
What wavelength is the OPTOMAN PP-UVFS-25.4-6.35-LLM323 mirror designed for?
What type of coating does this deep UV laser mirror use?
What substrate material is used for the PP-UVFS-25.4-6.35-LLM323?
Can this OPTOMAN mirror be used in semiconductor manufacturing applications?
Why are IBS-coated mirrors preferred for deep UV laser systems?
Got more questions? Use the inquiry form to ask the supplier directly.
