Description
The OPTOMAN PP-UVFS-12.7-6.35-LLM247 is a premium ion beam sputtered (IBS) laser mirror engineered for high-power laser systems operating at 2100 nm. Manufactured on high-quality UV fused silica (Corning 7980 0F), this precision optic delivers greater than 99.9% reflectivity at normal incidence, minimizing optical losses while maintaining excellent resistance to laser-induced damage. Its advanced IBS coating technology provides exceptional coating density, long-term environmental stability, and reliable performance in demanding industrial, scientific, and medical laser applications.
Featuring a 12.7 mm diameter, λ/10 surface flatness at 633 nm, 10-5 scratch-dig surface quality, and a clear aperture exceeding 90%, the mirror supports outstanding beam quality and consistent optical performance. The uncoated rear surface allows seamless integration into custom optical assemblies, making this mirror an excellent choice for Ho:YAG laser systems, infrared beam delivery, laser laboratories, and OEM photonics equipment requiring durable, precision-coated reflective optics.

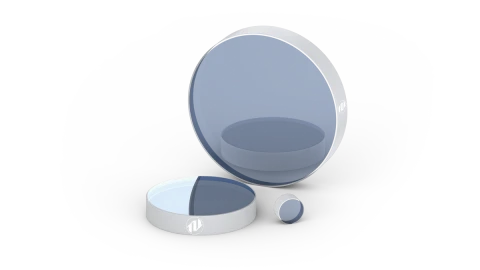

PP-UVFS-12.7-6.35-LLM247 IBS Laser Mirror for 2100 nm Ho:YAG Lasers
Specifications
| Substrate Material: | UV Fused Silica |
|---|---|
| Diameter: | 12.7 mm |
| Thickness: | 6.35 mm |
| Wavelength Range: | 2100 – 2100 nm |
| Angle Of Incidence (AOI): | 0 – 0 deg |
| Surface Quality, S1 (scratch-dig): | 10-5 |
| Surface Quality, S2 (scratch-dig): | Inspection Polished |
| Surface Flatness Over CA, S1 (@633 Nm Or Per Manufacturer): | Lambda/10 |
| Surface Flatness Over CA, S2 (@633 Nm Or Per Manufacturer): | Unspecified |
| Parallelism: | 0.17 arcmin |
| S1 Surface: | Coated |
| S2 Surface: | Uncoated |
| Reflectivity (HRa @ AOI, @ Peak Wavelength): | 99.9 % |
| Manufacturer Part Number (MPN): | PP-UVFS-12.7-6.35-LLM247 |
| FindLight SKU: | FL-24542 |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- High-reflectivity IBS coating providing >99.9% reflectance at 2100 nm
- Optimized for 0° angle of incidence in Ho:YAG and near-infrared laser systems
- UV fused silica substrate (Corning 7980 0F) for excellent optical transmission and thermal stability
- λ/10 surface flatness at 633 nm for superior wavefront preservation
- 10-5 scratch-dig surface quality minimizes scattering and optical defects
- High laser-induced damage threshold (LIDT) optimized for high-energy laser operation
- >90% clear aperture for efficient beam utilization
- Precision-manufactured 12.7 mm diameter with 6.35 mm thickness for compatibility with standard optomechanical mounts
- Dense ion beam sputtered coating ensures outstanding durability and environmental stability
Applications
- Ho:YAG laser systems operating at 2100 nm
- Medical and surgical laser equipment
- Scientific spectroscopy and infrared research
- Industrial laser processing systems
- OEM laser modules and photonics instrumentation
- Optical laboratories and beam steering assemblies
- High-power infrared beam delivery systems
- Precision laser development and R&D projects
Export & Trade Information
| ECCN: | EAR99 |
|---|---|
| HTS Code: | 9001.90.6000 |
| Estimated US Tariff: | 10% |
Frequently Asked Questions
What wavelength is the PP-UVFS-12.7-6.35-LLM247 designed for?
Why is ion beam sputtering (IBS) beneficial for laser mirrors?
Can this mirror be used in high-power laser applications?
What substrate material is used in this mirror?
Which laser systems commonly use 2100 nm mirrors like this?
