Description

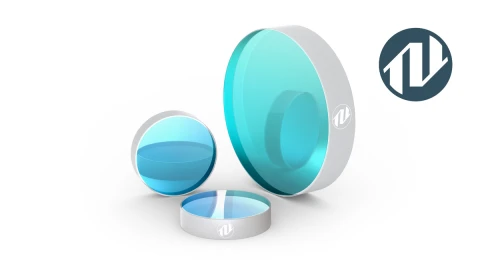

The OPTOMAN PP-UVFS-12.7-3.0-LLM226 is a precision laser mirror engineered for high-performance laser systems operating at 2940 nm. Manufactured on a UV-grade fused silica (UVFS) substrate, this mirror delivers greater than 99.8% reflectivity at normal incidence (0° AOI), making it an excellent choice for Er:YAG laser applications and other mid-infrared optical systems requiring minimal optical loss.
Designed with premium optical quality, the mirror features a 12.7 mm diameter, 3 mm thickness, and surface flatness better than λ/5 over an 8 mm area, helping maintain beam quality and stable optical performance. Its durable dielectric coating provides reliable long-term operation in demanding laboratory, industrial, and medical laser environments. Combining excellent reflectivity, precision manufacturing, and compact dimensions, the PP-UVFS-12.7-3.0-LLM226 is an ideal optical component for high-efficiency laser beam steering and cavity applications
PP-UVFS-12.7-3.0-LLM226 2940 nm High-Reflectivity Laser Mirror
Specifications
| Substrate Material: | UV Fused Silica |
|---|---|
| Diameter: | 12.7 mm |
| Thickness: | 3 mm |
| Wavelength Range: | 2940 – 2940 nm |
| Angle Of Incidence (AOI): | 0 – 0 deg |
| Surface Quality, S1 (scratch-dig): | 20-10 |
| Surface Quality, S2 (scratch-dig): | Inspection Polished |
| Surface Flatness Over CA, S1 (@633 Nm Or Per Manufacturer): | Other |
| Surface Flatness Over CA, S2 (@633 Nm Or Per Manufacturer): | Unspecified |
| Parallelism: | 0.17 arcmin |
| S1 Surface: | Coated |
| S2 Surface: | Uncoated |
| Reflectivity (HRa @ AOI, @ Peak Wavelength): | 99.8 % |
| Manufacturer Part Number (MPN): | PP-UVFS-12.7-3.0-LLM226 |
| FindLight SKU: | FL-24534 |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Manufacturer Part Number: PP-UVFS-12.7-3.0-LLM226
- High-reflectivity dielectric coating with HR >99.8% at 2940 nm
- Designed for 0° angle of incidence (normal incidence)
- UV-grade fused silica (UVFS) substrate for excellent optical stability
- 12.7 mm diameter with 3.0 mm thickness for compact optical assemblies
- Surface flatness better than λ/5 over an 8 mm optical area
- Precision optical polishing suitable for demanding laser systems
- Low optical losses for improved laser efficiency
- Ideal for Er:YAG and other mid-infrared laser applications
Applications
- Er:YAG laser systems operating at 2940 nm
- Medical and dental laser equipment
- Mid-infrared laser beam delivery systems
- Laser resonators and optical cavities
- Beam steering and beam folding assemblies
- Scientific spectroscopy instrumentation
- Research laboratories and photonics development
- Industrial laser processing systems
Export & Trade Information
| ECCN: | EAR99 |
|---|---|
| HTS Code: | 9001.90.6000 |
| Estimated US Tariff: | 10% |
Frequently Asked Questions
What wavelength is the PP-UVFS-12.7-3.0-LLM226 optimized for?
What angle of incidence is this mirror designed for?
What substrate material is used?
Which laser systems commonly use this mirror?
Why is high reflectivity important for laser mirrors?
Got more questions? Use the inquiry form to ask the supplier directly.
