Description
High reflectivity, R>99.5%
High damage threshold
RoHS Compliant

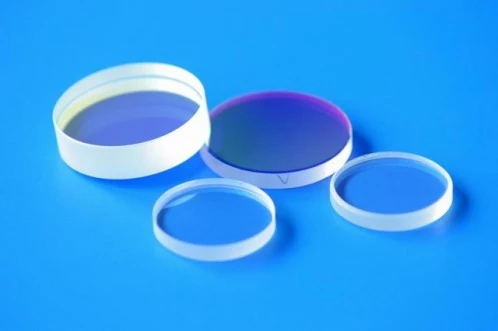

Dielectric Laser Line Mirror
Specifications
Substrate Material: | BK7, Fused Silica, UV Fused Silica, IR Fused Silica, Custom |
---|---|
Wavelength Range: | 260 – 1570 nm |
Angle Of Incidence (AOI): | Not Specified |
Flatness (Coated Surface): | lambda/4 |
Surface Quality: | 60-40 scratch-dig |
Reflectivity (Rs, Rp): | 99.5 % |
Diameter: | 25.4 mm |
Thickness: | 3 mm |
Features
Dimension Tolerance +0.0/-0.2mm
Thickness Tolerance ±0.2mm
Clear Aperture >90%
Flatness λ/10@632.8nm per 25mm range
Surface Quality 60/40 scratch and dig
Coating Dielectric HR coating on one surface, R>99.5% for random polarization, rear surface ground or inspection polished
Damage Threshold >5J/cm2, 20ns, 20Hz, @1064nm
Frequently Asked Questions
What is the coating on the mirror?
The mirror has a Dielectric HR coating on one surface, with R>99.5% for random polarization, and the rear surface is either ground or inspection polished.
What is the damage threshold of the mirror?
The damage threshold of the mirror is >5J/cm2, 20ns, 20Hz, @1064nm.
What is the reflectivity of the Dielectric Laser Line Mirror?
The reflectivity of the Dielectric Laser Line Mirror is R>99.5%.
What is the surface quality of the mirror?
The surface quality of the mirror is 60/40 scratch and dig.
What is the clear aperture of the mirror?
The clear aperture of the mirror is >90%.
