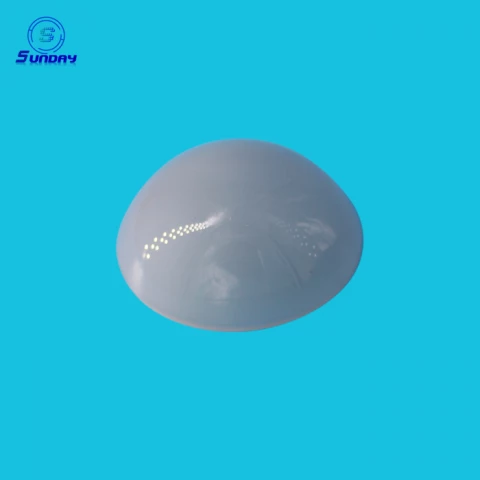

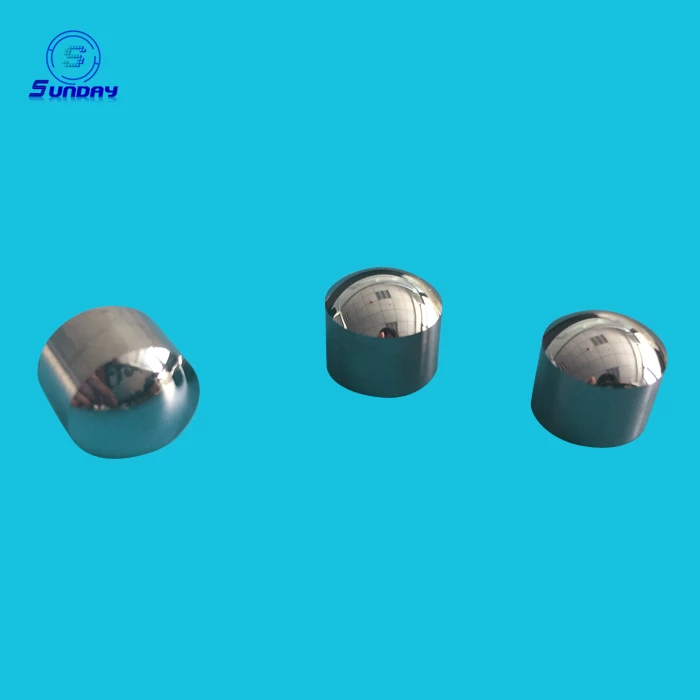

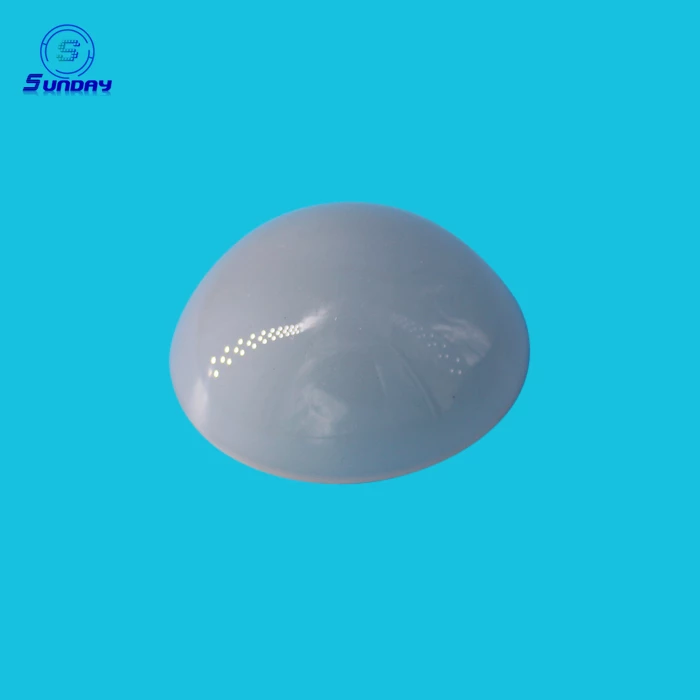

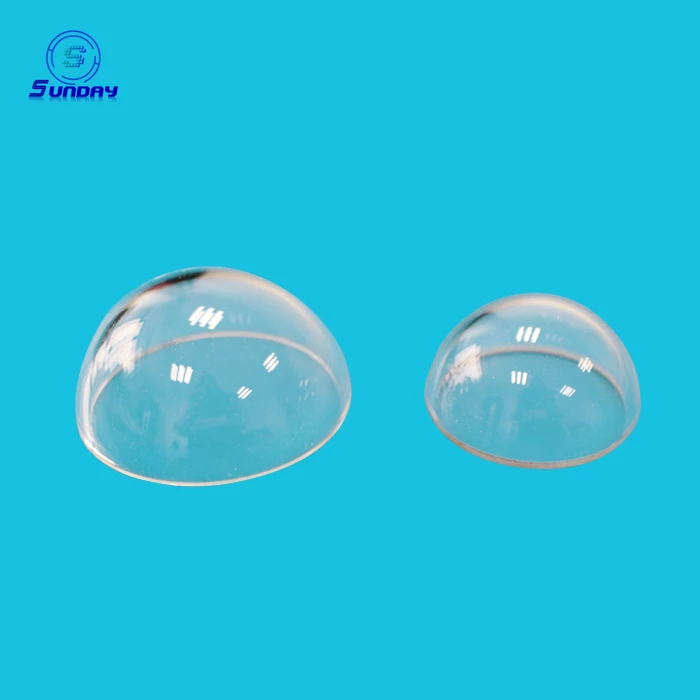

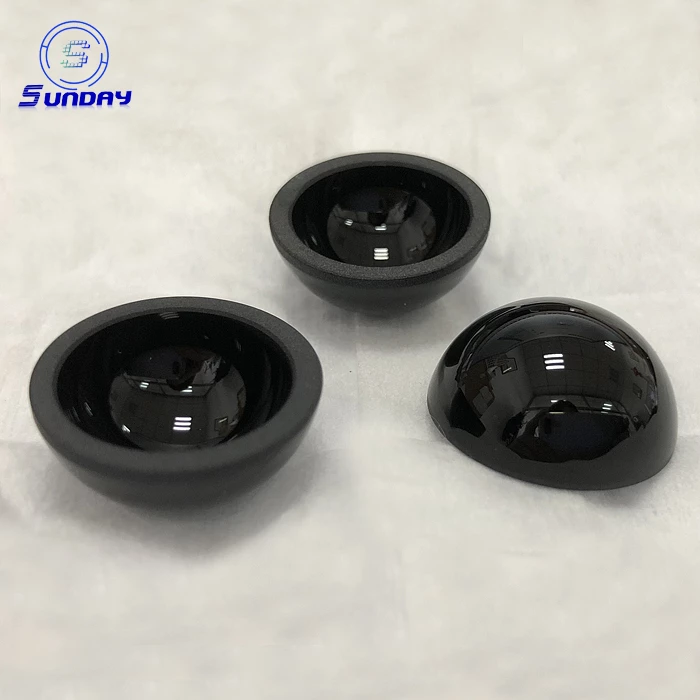

Custom Optical Dome 200mm in Diameter
Description
Changchun Sunday Optics Co., Ltd. provides high-quality optical components crafted from materials like H-K9L, JGS1, and Sapphire, suitable for a variety of demanding applications. These components are available in a wide range of diameters from 8mm to 400mm, with a diameter tolerance of +0.00/-0.05mm, or customized according to client specifications. The surface quality of these lenses is rated at 60-40, and surface irregularity is maintained at λ/4 at 632.8nm, also customizable per client needs.
The thickness tolerance is controlled within +/-0.05mm, ensuring precise performance in critical applications. The clear aperture exceeds 90% of the diameter, maximizing the usable surface area of the lens. Chamfers range from 0.05-0.5mm at a 45-degree angle, tailored to customer requirements. Additionally, these components are treated with a Broad-Band Anti-Reflective (BBAR) coating effective within the 400-700nm range, enhancing their efficiency in various optical systems.
Custom Optical Dome 200mm in Diameter
Specifications |
|
|---|---|
| Size: | 200 mm |
| F-Number: | Not Specified |
| Radius Of Reference Surface: | Not Specified |
| Max Test Diameter (Convex): | 400 mm |
| Transmitted Wavefront (PV): | Not Available |
| Quality Of Reference Surface: | <= Lambda/4 |
Features
- Material: H-K9L, JGS1, Sapphire
- Diameters Available: 8-400mm
- Diameter Tolerance: +0.00/-0.05mm or customer design
- Surface Quality: 60-40
- Surface Irregularity: λ/4 @632.8nm or customer design
- Thickness tolerance: +/-0.05mm
- Clear Aperture: >90% of Diameter
- Chamfer: 0.05-0.5mm x 45degree, according to customer's need.
- Coating: BBAR 400-700nm
Applications
- High-Performance Imaging Systems: Ideal for use in cameras, telescopes, and other optical devices where clarity and precision are paramount, these lenses improve image quality across various wavelengths.
- Laser Systems: Suitable for laser applications where beam shaping and control are necessary, enhancing laser cutting, engraving, and marking systems.
- Scientific Research: Utilized in laboratory instruments, including spectrometers and interferometers, where precise optical measurements are required.
- Aerospace and Defense: Employed in high-end optical systems used in satellites, spacecraft, and military equipment for navigation, targeting, and surveillance.
- Optical Communication: Enhances the performance of fiber optic communication systems by improving light transmission and reducing losses.
- Medical Devices: Used in diagnostic and therapeutic equipment, such as endoscopes and laser surgery tools, where high optical precision is critical for patient care.
