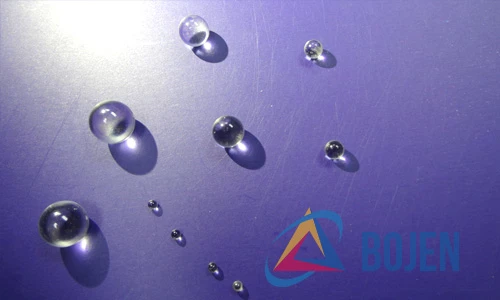

Ball Lens
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2015
Description
Ball Lenses are commonly used to improve signal quality in fiber coupling applications, or for use in endoscopy or bar code scanning applications. Ball Lenses feature short back focal lengths to minimize the distance needed from the Ball Lens to the optical fiber.
The focal length can be calculated as the following equation:
f= Rn/2(n-1),
where n is the index of refraction and R is the radius of the ball.
At present, we just can provide uncoated ball lens.
Ball Lens
Specifications |
|
|---|---|
| Material: | BK7 |
| Diameter: | 5 mm |
| Focal Length: | 3.7 mm |
| Edge Thickness, Te: | Not Specified |
| Lens Type: | Bi-Convex |
| Spherical Error: | 5 um |
Features
Ball lens
Coupler to fiber
Applications
Optical communications
Frequently Asked Questions
Ball Lenses are commonly used to improve signal quality in fiber coupling applications, or for use in endoscopy or bar code scanning applications.
The focal length can be calculated as the following equation: f= Rn/2(n-1), where n is the index of refraction and R is the radius of the ball.
Ball Lenses feature short back focal lengths to minimize the distance needed from the Ball Lens to the optical fiber.
At present, we just can provide uncoated ball lens.
Ball Lenses are used in optical communications.
