Description
The LS-0628SA-5MP lens by Fujian Lumens Solution Co., Ltd is a high-performance optical lens designed to meet the demanding requirements of modern imaging applications. With a focal length of 6mm and a resolution of 5MP, this lens offers exceptional clarity and detail, making it suitable for a wide range of uses from industrial inspection to surveillance. The lens supports a 2/3" sensor format, providing a versatile solution for various camera systems. Its fixed aperture of F2.8 ensures consistent image quality and performance across different lighting conditions.
Engineered for reliability, the LS-0628SA-5MP features an IR650nm filter, enhancing its capability for day and night operations. The lens structure comprises 8 glass elements, ensuring durability and superior image quality. Its compact dimensions (φ25*25.1mm) and lightweight design make it easy to integrate into existing systems. Additionally, the lens can operate within a wide temperature range (-20°C to 85°C), ensuring consistent performance in various environmental conditions.

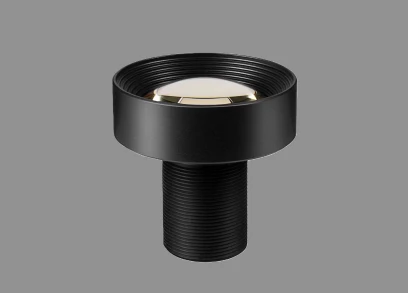

LS-0628SA-5MP 6mm Focal Length 5MP Lens
Specifications
| Focal Length: | 6 – 6 mm |
|---|---|
| F/no: | 2.8 – 4 |
| Format Size (dia.): | 2/3 inch |
| Resolution: | 5 mega pixels |
| Angle Of View: | 50 – 80 degrees |
| Iris Type: | Manual Adjust |
Download Data Sheet
Features
- High Resolution: Provides 5-megapixel clarity for detailed and high-quality images
- Optimal Focal Length: 6mm focal length offers a broad field of view, making it suitable for various applications
- Versatile Sensor Format: Compatible with 2/3" sensors, allowing integration with different camera systems
- Fixed Aperture: F2.8 aperture for consistent image brightness and quality
Wide Field of View (FOV):83.8° (Diagonal), 67.25° (Horizontal), 50.5° (Vertical) for extensive coverage - High Relative Illumination: 60.56% ensuring uniform illumination across the image
- Low Chief Ray Angle: <10° minimizes optical distortion, maintaining image accuracy
- Minimal TV Distortion: < -1.58% for precise image reproduction
- Close Focusing Capability: Minimum Object Distance (MOD) of 0.2m for capturing close-up details
- Standard Mount: M12*0.5 mount for easy and secure attachment to cameras

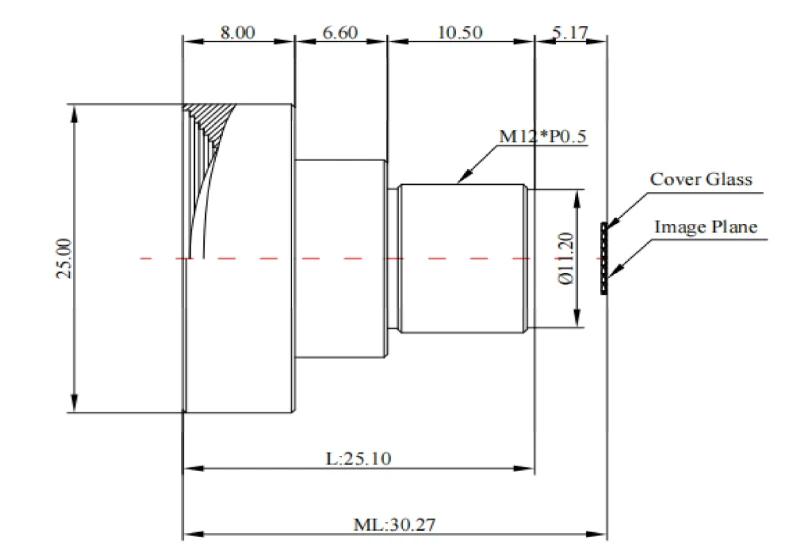

- Compact Size: Dimensions of φ25*25.1mm, making it suitable for space-constrained applications
- Robust Construction: 8 glass elements design for durability and high optical performance
- IR Filter Integration: IR650nm filter for enhanced performance in various lighting conditions
- Wide Operating Temperature Range: Reliable performance from -20°C to 85°C, suitable for harsh environments
Applications
- Industrial Inspection: Ideal for high-precision imaging in quality control and manufacturing processes
- Surveillance and Security: Provides clear and detailed images for monitoring and security systems
- Machine Vision Systems: Enhances image processing and analysis in automated inspection and sorting systems
- Robotics Vision: Suitable for integration in robotic vision systems for navigation and manipulation tasks
- Medical Imaging: Ensures high-resolution images for diagnostic equipment and monitoring devices
- Traffic Monitoring: Effective in capturing detailed images in traffic surveillance and management systems
- Agricultural Monitoring: Used in drones and equipment for precision agriculture, crop, and field analysis
- Aerospace and Defense: Supports critical applications requiring high reliability and image clarity in defense and aerospace sectors
- Scientific Research: Provides detailed imaging for various research applications, including microscopy and remote sensing
Frequently Asked Questions
What is the focal length of the LS-0628SA-5MP lens?
The LS-0628SA-5MP lens has a focal length of 6mm, providing a broad field of view suitable for various imaging applications.
What resolution does this lens support?
This lens supports a resolution of 5 megapixels, ensuring high-quality and detailed images.
What sensor format is compatible with this lens?
The lens is compatible with 2/3" sensors, making it versatile for different camera systems.
What is the aperture size of the LS-0628SA-5MP lens?
The lens has a fixed aperture size of F2.8, providing consistent image brightness and quality.
What are the field of view (FOV) angles for this lens?
The LS-0628SA-5MP lens has a field of view of 83.8° (Diagonal), 67.25° (Horizontal), and 50.5° (Vertical).
How does the lens perform in terms of relative illumination?
The lens offers relative illumination of greater than 60.56%, ensuring uniform illumination across the image.
What is the chief ray angle of this lens?
The chief ray angle of the LS-0628SA-5MP lens is less than 10°, minimizing optical distortion and maintaining image accuracy.
What is the TV distortion value for this lens?
The TV distortion value is less than -1.58%, ensuring precise image reproduction.
What is the minimum object distance (MOD) for this lens? `
The minimum object distance (MOD) is 0.2 meters, allowing for close-up imaging.
What type of mount does the LS-0628SA-5MP lens use?
The lens uses an M12*0.5 mount for easy and secure attachment to cameras.
