Description

Our SC series lenses are crafted through advanced injection molding and compression molding technologies, insuring a superior surface quality and by that optical performance.

The unique design of our polymer Fresnel lenses not only ensures optimal optical performance but also offers significant advantages. Compared to traditional glass lenses our lenses provide substantial weight, space and cost reductions making them indispensable in lighting, sensor, and machine vision applications.

At ORAFOL Fresnel Optics we take pride in offering comprehensive solutions, from optical design and prototyping to tooling and high-volume production. Whether you choose one of our standard products or opt for a custom solution, including high-volume production, we are committed to meet your specific requirements.

Customization options include precise trimming to desired shape, changing of thickness (>0.8 mm) and material (PMMA, Polycarbonate, silicone on glass), optical coating (reflective and anti-reflective coating of various kinds) and combination with other components (diffusive microstructures, microlens arrays) directly into the plano side of the lens. A completely new design of the microstructure specificly made for your application including tooling and prototyping is also possible. Contact us for details.

Positive Fresnel Lens SC 242

Visit the ORAFOL Fresnel Optics Store

Specifications

Material: PMMA Acrylic
Lens Type: Non-Imaging - Spot, Positive
Focal Length: 101.1 mm
Facet Spacing: 0.305 mm

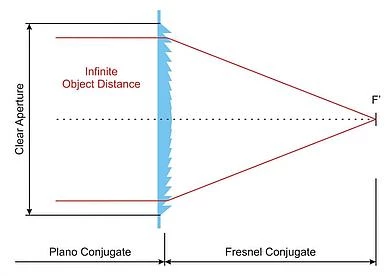

Fresnel Conjugate: 101.1 mm
Clear Aperture: 85.8 mm
Thickness: 1.8 mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Lightweight, volume-efficient design
  • High apertures and optically effective surfaces
  • Cost-effective solutions for diverse applications
  • Expertly crafted with cutting-edge technology
  • Backed by ORAFOL Fresnel Optics' legacy of top-quality manufacturing

Applications

  • Advanced lighting applications
  • Optical sensor technology
  • Machine vision systems

Frequently Asked Questions

What is the standard material used for the lenses?
The standard material used is PMMA (Polymethyl methacrylate) with a refractive index of 1.49. Other materials are available upon request.
What are the available focal lengths for these Fresnel lenses?
The focal lengths range from 6.3 mm to 764 mm, offering a wide variety of options for different applications.
What is the thickness of the lenses?
The standard thickness is 1.8 mm, but other thicknesses, starting from 0.8 mm, are available upon request.
Are custom designs available for these lenses?
Yes, special designs, customized dimensions, and special trimmings can be realized based on specific requirements.
What wavelength are the lenses optimized for?
The lenses are optimized for a wavelength of 546 nm with a tolerance of ±5%.
How can the number of lines per mm be calculated?
The number of lines per mm can be determined by using the reciprocal of the facet spacing.
Can these lenses be used in solar energy applications?
Yes, these lenses are ideal for solar energy concentration, providing precise light focusing for enhanced energy efficiency.
What is the clear aperture range for these lenses?
The clear aperture ranges from 6.4 mm to 657 mm, depending on the specific part number.
Can these lenses handle high temperatures or environmental stress?
The lenses are made from PMMA, which provides durability and stability for use in various environments, though specific temperature tolerances depend on the application.
Are other thickness options available?
Yes, thickness options starting from 0.8 mm are available, depending on your specific design and application needs.

Got more questions? Use the inquiry form to ask the supplier directly.
