Description

The ORAFOL Positive Fresnel Lens SC 231 is designed to efficiently focus light with minimal distortion, making it an essential component in various optical applications. This lens combines high optical performance with a lightweight, compact design, allowing for easy integration into existing systems. Crafted from durable optical-grade polymer, the SC 231 lens ensures excellent clarity and longevity, even under varying environmental conditions.

This lens is particularly effective in applications requiring precise light manipulation, such as in imaging systems, projectors, and solar energy applications. Its positive focal properties allow it to converge light rays, resulting in a concentrated beam that enhances the performance of optical systems. With a thickness of just 2.5 mm and a diameter of 200 mm, the SC 231 lens is lightweight yet robust, making it ideal for both commercial and industrial uses.

Designed for versatility, the ORAFOL Positive Fresnel Lens SC 231 is suitable for a wide range of wavelengths, ensuring that it meets the needs of various industries, including telecommunications, medical devices, and entertainment technology.

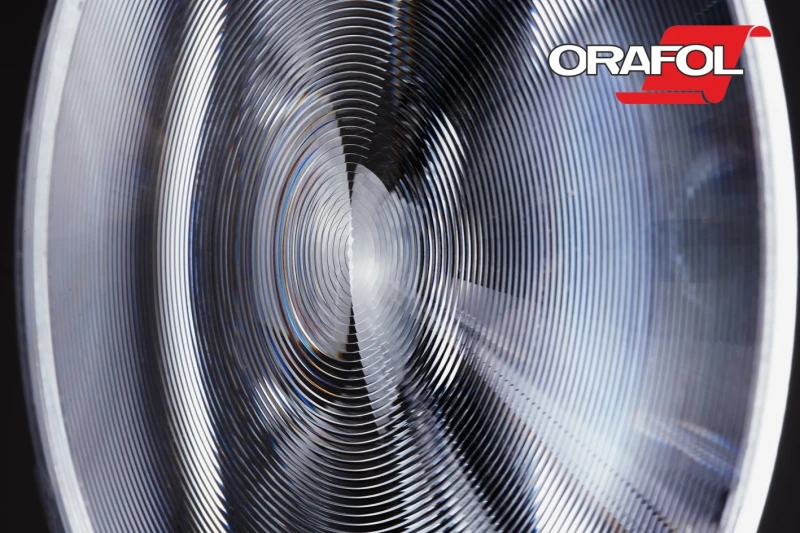

Positive Fresnel Lens SC 231

Visit the ORAFOL Fresnel Optics Store

Specifications

Material: PMMA Acrylic
Lens Type: Non-Imaging - Spot, Positive
Focal Length: 13.6 mm
Facet Spacing: 0.127 mm

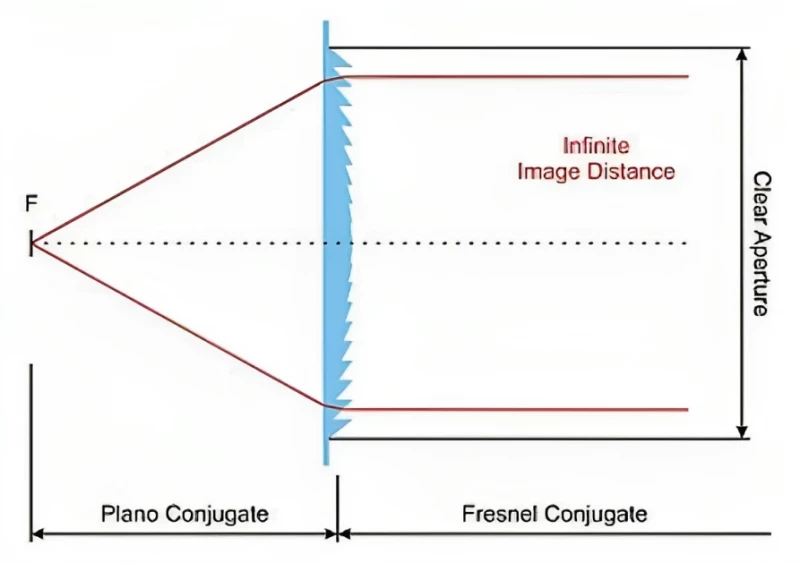

Fresnel Conjugate: Not Specified
Clear Aperture: 18 mm
Thickness: 1.8 mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Lightweight, volume-efficient design
  • High apertures and optically effective surfaces
  • Cost-effective solutions for diverse applications
  • Expertly crafted with cutting-edge technology
  • Backed by ORAFOL Fresnel Optics' legacy of top-quality manufacturing

Applications

  • Advanced lighting applications
  • Optical sensor technology
  • Machine vision systems

Frequently Asked Questions

What material is the lens made of?
The lens is made from high-quality optical-grade polymer for excellent clarity and durability.
What is the diameter of the lens?
The lens has a diameter of 200 mm.
What is the thickness of the lens?
The lens is 2.5 mm thick, making it lightweight and easy to handle.
Can this lens be used in outdoor applications?
Yes, the lens is designed to withstand various environmental conditions and is suitable for outdoor use.
Is the lens compatible with multiple wavelengths?
Yes, the ORAFOL Positive Fresnel Lens SC 231 is compatible with a broad range of wavelengths.
How does this lens enhance imaging systems?
The lens converges light rays effectively, improving light collection and resulting in clearer images.
What industries can benefit from using this lens?
It is suitable for industries such as telecommunications, medical devices, and solar energy.
How does the lens perform in terms of durability?
The lens is resistant to environmental factors, ensuring long-term reliability and performance.
Is this lens easy to integrate into existing systems?
Yes, its lightweight design allows for straightforward integration into various optical systems.
What applications are ideal for this lens?
Ideal applications include imaging systems, projectors, solar energy solutions, and optical instruments.

Got more questions? Use the inquiry form to ask the supplier directly.
