Description
Discover the precision and quality of our cylindrical lenses, expertly crafted to meet the demanding needs of various optical applications. Our lenses are available in both plano-convex and plano-concave configurations, providing versatility for a wide range of optical setups. Each lens is meticulously designed with a focus on delivering exceptional performance, ensuring that you receive a product that is both reliable and efficient.
Our cylindrical lenses are made from high-quality BK7 material or its equivalent, ensuring durability and excellent optical clarity. With a design wavelength of 587.6nm, these lenses are optimized for superior performance in their intended applications. The dimensional tolerance of ±0.2mm and focal length tolerance of ±2% reflect our commitment to precision engineering, while the centering tolerance of 5~15 arc minutes guarantees optimal alignment and functionality.
We take pride in offering lenses with a clear aperture of 90%, which maximizes light transmission and minimizes distortion. The surface quality of 60-40 S/D ensures a smooth finish, reducing scattering and enhancing image quality. Our lenses are designed with a bevel of 0.2mm x 45°, providing added protection against chipping and ensuring safe handling. Although these lenses come without coating, they are ready to be customized to meet your specific requirements.
At Tower Optical Corporation, we understand that quality is not just a feature—it's a necessity. Our motto, "Quality is not expensive, it is Priceless," reflects our dedication to delivering products that exceed expectations. Whether you need standard lenses or custom solutions, our team is ready to assist you. Simply send us your drawings or specifications, and we will provide a tailored quotation to meet your needs.

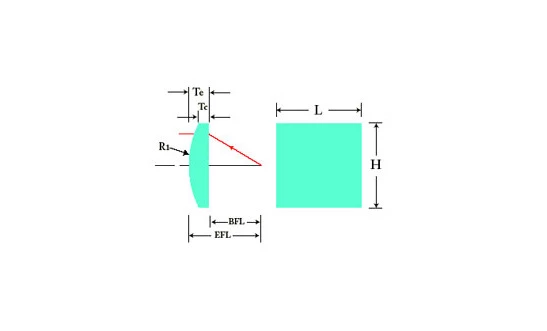

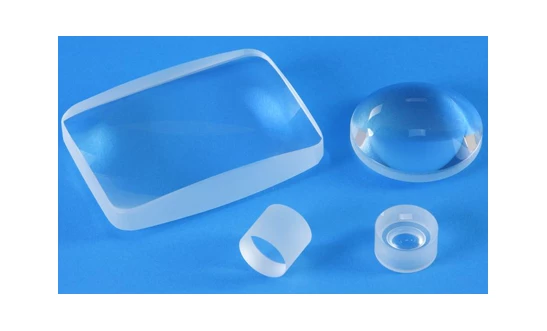

Cylindrical Lens - CYX15-040-150
Specifications |
|
|---|---|
| Lens Type: | Positive |
| Material: | BK7 |
| Size: | 40 mm |
| Focal Length: | 150 mm |
| Design Wavelength: | 587.6nm |
| Dimensional Tolerance: | ±0.2mm |
| Focal Length Tolerance: | ±2% |
| Centering Tolerance: | 5~15 arc min |
| Clear Aperture: | 90% |
| Surface Quality: | 60-40 S/D |
| Bevel: | 0.2mm x 45° |
Features
- High-Quality Material: Crafted from BK7 or equivalent, ensuring durability and precision.
- Optimized Design Wavelength: Designed for optimal performance at 587.6nm.
- Precision Dimensional Tolerance: Maintains a tight tolerance of ±0.2mm for accurate applications.
- Focal Length Accuracy: Focal length tolerance of ±2% for reliable focusing.
- Centering Precision: Centering tolerance between 5 to 15 arc minutes for enhanced alignment.
- High Clear Aperture: Offers a clear aperture of 90% for maximum light transmission.
- Surface Quality: Features a surface quality of 60-40 S/D, ensuring minimal imperfections.
- Bevel Design: Includes a 0.2mm x 45° bevel for safe handling and installation.
- Uncoated Surface: No coating applied, allowing for custom applications and coatings as needed.
- Customizable Options: Custom versions available upon request to meet specific requirements.
Applications
- Optical Systems: Cylindrical lenses are used in optical systems to focus light into a line or to change the aspect ratio of an image.
- Laser Applications: These lenses are often used in laser applications to shape the laser beam into a line or to correct astigmatism in the beam.
- Imaging Systems: Cylindrical lenses can be used in imaging systems to compress or expand images in one dimension, which is useful in anamorphic lens systems.
- Projection Systems: They are used in projection systems to correct distortion or to create wide-screen images.
- Medical Devices: Cylindrical lenses are used in various medical devices, including diagnostic equipment and laser surgery tools, to focus or shape light.
- Scientific Research: These lenses are used in scientific research for experiments requiring precise control of light paths and beam shaping.
- Industrial Applications: In industrial settings, cylindrical lenses are used in laser cutting, welding, and scanning systems to focus or shape laser beams.
- Telecommunications: They are used in fiber optic systems to focus light into fibers or to collimate light exiting fibers.
Frequently Asked Questions
The material used for the cylindrical lens from Tower Optical is BK7 or equal.
The dimensional tolerance of the cylindrical lens is ±0.2mm.
The surface quality of the cylindrical lens is 60-40 S/D.
Yes, custom versions are available for the cylindrical lens.
You can send your drawings or specifications to Tower Optical and they will provide a quotation.
