Cylindrical Lens - CYV16-010-012

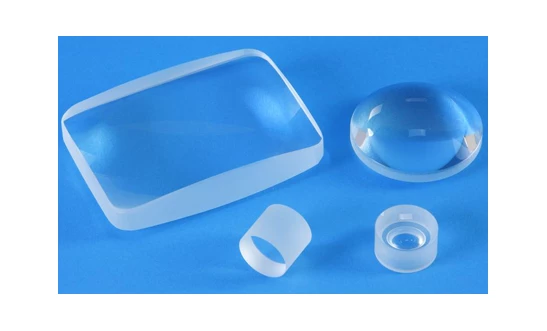

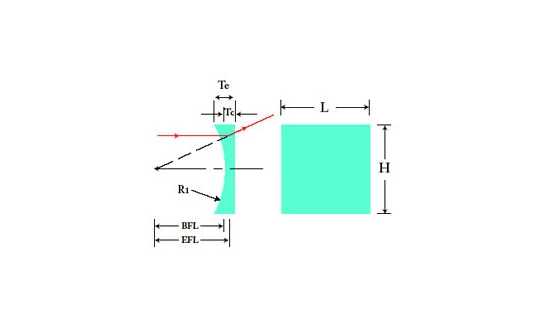

Specifications |
|
|---|---|
| Lens Type: | Negative |
| Material: | BK7 |
| Size: | 10 mm |
| Focal Length: | -12.7 mm |
| Design Wavelength: | 587.6nm |
| Design Wavelength: | 587.6nm |
| Dimensional Tolerance: | ±0.2mm |
| Focal Length Tolerance: | ±2% |
| Centering Tolerance: | 5~15 arc min |
| Clear Aperture: | 90% |
| Surface Quality: | 60-40 S/D |
| Bevel: | 0.2mm x 45° |
Features
- High-Quality Material: Made from BK7 or equivalent, ensuring durability and precision.
- Design Wavelength: Optimized for 587.6nm for superior performance in optical applications.
- Dimensional Tolerance: Precise manufacturing with a tolerance of ±0.2mm.
- Focal Length Tolerance: Accurate focal lengths with a tolerance of ±2%.
- Centering Tolerance: Maintained between 5~15 arc min for optimal alignment.
- Clear Aperture: 90% clear aperture for maximum light transmission.
- Surface Quality: High-quality surface finish with a 60-40 scratch-dig specification.
- Bevel: 0.2mm x 45° bevel for safe handling and integration.
- Coating: None, allowing for custom coating options as per your requirements.
- Custom Solutions: Custom versions available upon request. Send your drawings or specifications for a quotation.
