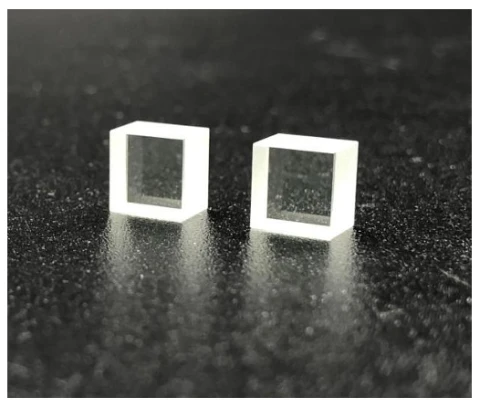

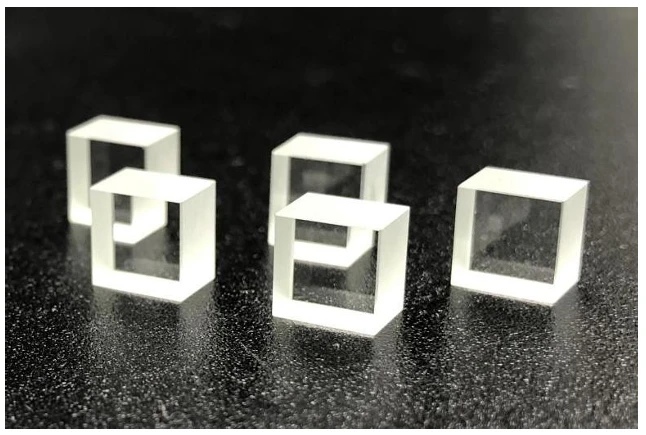

KTA Crystal for Laser Ranging and Mid IR OPO Applications

Specifications

Crystal Type: KTA (KTiOAsO4)
Phase Mathcing Type: Type II, Type I
Mounting: Unmounted, Mounted
Width: 2 mm
Height: 2 mm
Length: 1 mm
Flatness: <= Lambda/10
Surface Quality (Scratch-Dig): 10-5
AR Coating: Not Coated, Both Sides, One side
Dimension Tolerance: W(+/-0.1)*H(+/-0.1)*L(+0.5/-0.1)mm
Angle Tolerance: +/-0.25°
Surface Quality: 20/10
Document icon Download Data Sheet Download icon

Features


  • Transmission Curve: High transmittance at 3000–5000nm

  • Advantages:

    • High Damage Threshold

    • Broad Temperature Acceptance

    • High Efficiency



  • Specifications:

    • Dimension Tolerance: W(+/-0.1)*H(+/-0.1)*L(+0.5/-0.1)mm

    • Angle Tolerance: +/-0.25°

    • Surface Quality: 20/10

    • Parallelism: High precision

    • Flatness: Ensures optimal performance

    • Wavefront Distortion: Minimal distortion

    • Coatings: High quality coatings available

    • Damage Threshold: High resistance



  • Non-Standard Products: Please contact us for customized products.

  • Standard Products:

    • P/N: KTA-O-5520-C1/C1

    • P/N: KTA-O-7720-C1/C1

    • P/N: KTA-O-8820-C1/C1



Applications


  • Laser Ranging

  • Mid IR OPO

  • Research
