Description

LBO (Lithium Triborate, LiB3O5) crystal is recognized as one of the most exceptional non-linear crystals, particularly esteemed for its role in noncritical phase-matched laser frequency doubling. This crystal stands out in the ultraviolet spectrum, having been effectively utilized in the second and third harmonic generation of YLF, YAG, and YAP lasers.

The LBO crystal is characterized by its broad transmission band and excellent ultraviolet transmittance, paired with slightly deliquescent properties. Its superior physical and chemical stability, combined with a moderate non-linear optical coefficient and high optical uniformity, make it a preferred choice for various optical applications. Moreover, it boasts a high damage threshold, a large allowable angle, and a minimal walk-off angle, which collectively contribute to its widespread use in high-average power harmonic generation and parametric oscillation fields.

The standout feature of the LBO crystal is its ability to utilize temperature tuning for achieving non-critical phase matching (NCPM). In this configuration, the walk-off angle between the fundamental frequency light and the second harmonic is zero, theoretically allowing the effective length of the LBO crystal to extend to infinity. This property compensates for its relatively small non-linear coefficient. The crystal's substantial damage threshold enables high-power fundamental wave pumping, significantly enhancing the conversion efficiency of fundamental frequency light in extra-cavity frequency doubling of pulsed lasers. This results in markedly improved beam quality and frequency light stability.

Overall, the LBO crystal's unique properties and advantages make it an invaluable component in the field of laser technology, particularly for applications requiring high precision and efficiency in frequency conversion processes.

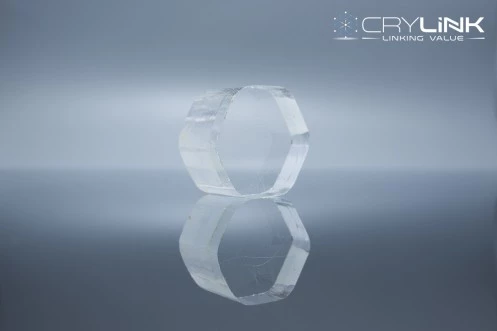

LBO Nonlinear Crystal

Specifications

Crystal Type: LBO (Lithium Triborate)
Phase Mathcing Type: Not Applicable
Mounting: Unmounted
Width: 3 mm
Height: 3 mm
Length: 10 mm
Flatness: <= Lambda/10
Surface Quality (Scratch-Dig): 20-10
AR Coating: One side
Chemical Formula: LiB3O5
Lattice Parameter: a=8.4473Å ,b=7.3788Å, c=5.1395Å, Z=2
Transparency Range: 169 – 2600 nm
SHG Phase Matchable Range: 551 ~ 2600nm (Type I);790-2150nm (Type II)
NLO Coefficients: deff(I)=d32cosΦ (Type I in XY plane)
NLO Coefficients: deff(I)=d31cos2θ+d32sin2θ (Type I in XZ plane)
NLO Coefficients: deff(II)=d31cosθ (Type II in YZ plane)
NLO Coefficients: deff(II)=d31cos2θ+d32sin2θ (Type II in XZ plane)

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High Damage Threshold: LBO crystals can withstand high-power laser applications without damage, making them ideal for high-intensity laser processes.
  • Wide Transparency Range: These crystals offer a broad transmission band, suitable for applications across a wide spectrum of wavelengths.
  • Wide Acceptance Angle: LBO crystals provide a large acceptance angle, enhancing their efficiency in frequency conversion processes.
  • Large Range of Tunable Wavelengths: The ability to tune across a wide range of wavelengths makes LBO crystals versatile for various laser applications.
  • Small Walk-Off Angle: The minimal walk-off angle ensures high beam quality and stability in frequency-doubled outputs.

Applications

  • Second & Third Harmonic Generation (SHG, THG): Efficient frequency doubling and tripling for UV and visible laser output.
  • Optical Parametric Oscillators (OPO): Tunable wavelength generation for spectroscopy and sensing.
  • Optical Parametric Amplification (OPA): High-gain amplification for ultrafast laser systems.
  • Noncritical Phase Matching (NCPM) SHG & THG: Enhanced beam quality with zero walk-off.
  • Electro-Optic Modulation: Stable modulation for advanced photonics systems.

Frequently Asked Questions

What applications is LBO crystal suitable for?
LBO crystal is suitable for applications such as SHG (second-harmonic generation), THG (third-harmonic generation), OPO (optical parametric oscillator), OPA (optical parametric amplification), NCPA SHG, THG, electro-optic modulator, material processing, optical communication, holography, and medical applications.
What are the features of LBO crystal?
The features of LBO crystal include low sensitivity to moisture, small dispersive angle, high optical homogeneity, large range of tunable wavelengths, wide transparency range, high damage threshold, and wide acceptance angle.
What is LBO crystal used for?
LBO crystal is used for noncritical phase matched laser frequency doubling, second and third harmonic generation of YLF, YAG, YAP lasers, high average power second harmonic, sum frequency, difference frequency, third harmonic, fourth harmonic and parametric oscillation field.
What is the contact information for purchasing LBO crystal?
The contact information for purchasing LBO crystal is available on the datasheet at www.laser-crylink.com and includes email, phone number, and address.
What is the greatest advantage of LBO crystal?
The greatest advantage of LBO crystal is that temperature tuning can be used to achieve non-critical phase matching (NCPM). When the non-critical phase matching relationship is satisfied in the frequency doubling process, the walk-off angle between the fundamental frequency light and the second harmonic of frequency doubling is 0.

Got more questions? Use the inquiry form to ask the supplier directly.
