Description
AgGaS2 is a negative uniaxial crystal: no > ne. The symmetry class is tetragonal D2d, spatial group D2 d12. The transparency range is 0.47–12.5 microns. The nonlinear coefficient d36 = 12.5 pm/V. Birefringence of ne − no = 0.0537 at a wavelength of 1.06 microns. The laser resistance is 20 MW/cm2.

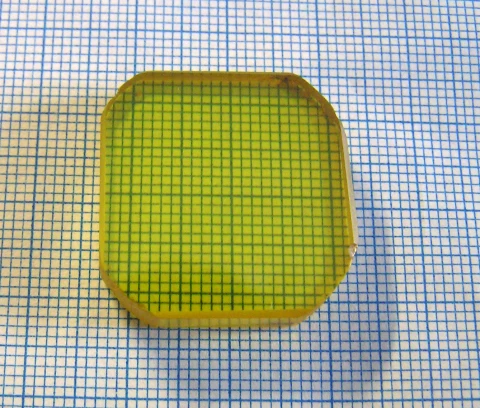

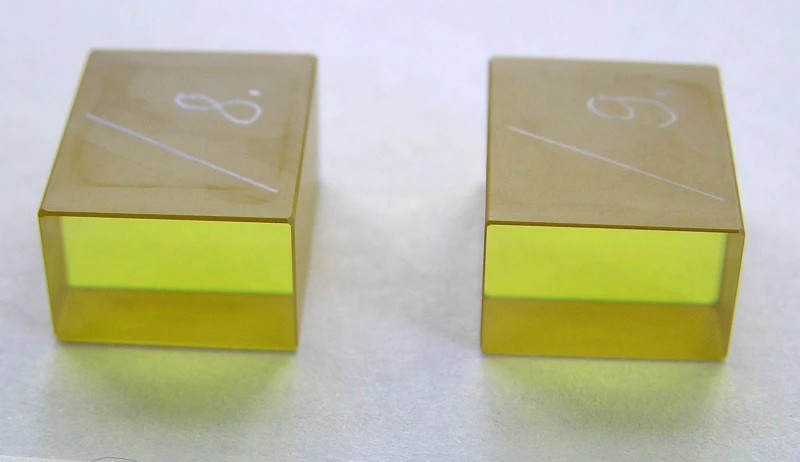

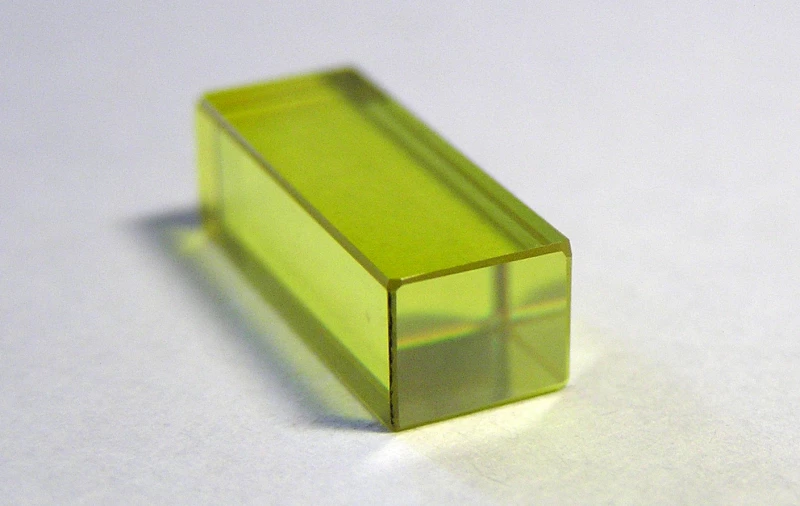

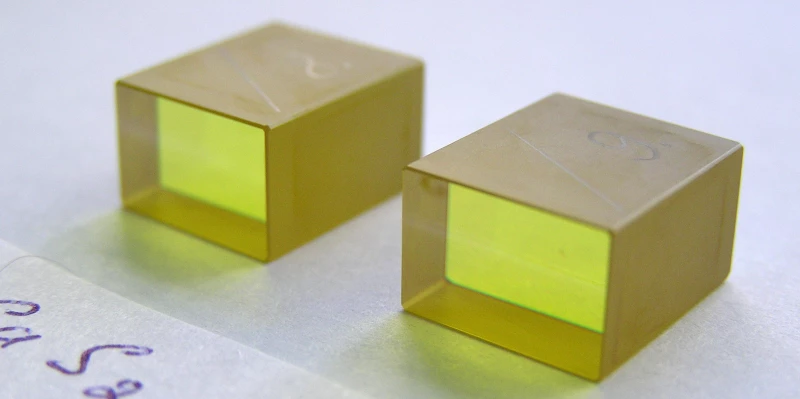

AgGaS2 Negative Uniaxial Crystal
Specifications
| Crystal Type: | AgGaS2 (Silver Gallium Sulfide) |
|---|---|
| Phase Mathcing Type: | Not Applicable |
| Mounting: | Not Specified |
| Width: | 12 mm |
| Height: | 12 mm |
| Length: | 15 mm |
| Flatness: | <= Lambda/6 |
| Surface Quality (Scratch-Dig): | Not Specified |
| AR Coating: | Not Specified |
Download Data Sheet
