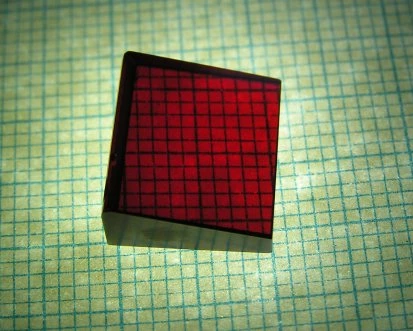

BaGa2GeSe6 Nonlinear Crystal
Description
This is a BaGa2GeSe6 Nonlinear Crystal. It has a nonlinear coefficients of d11 = +23,6, d22 = -18,5, d31 = +18,3 pm/W. Transmission range is 0,522–18 um, The width of the forbidden range is 2.38 eV, resistance to laser radiation is 5.35 J/sq.cm. Scientific research shows that these crystals are capable of generating pulses in the mid-IR region with as much as 18um of octave.
BaGa2GeSe6 (BGGSe) имеет коэффициенты нелинейности d11 = +23,6, d22 = -18,5, d31 = +18,3 пм/В. Диапазон пропускания 0,522–18 мкм, ширина запрещенной зоны 2,38 эВ, сопротивление лазерному излучению 5,35 Дж/см2. Экспериментальные исследования показывают способность материала генерировать импульсы в среднем ИК-диапазоне с охватом октавы до 18 мкм.
BaGa2GeSe6 Nonlinear Crystal
Specifications |
|
|---|---|
| Crystal Type: | |
| Phase Mathcing Type: | Type II |
| Mounting: | Unmounted |
| Width: | 10 mm |
| Height: | 10 mm |
| Length: | 30 mm |
| Flatness: | <= Lambda/6 |
| Surface Quality (Scratch-Dig): | |
| AR Coating: | |
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Russia
-
Sold by:
-
On FindLight:
since 2022
Frequently Asked Questions
The BaGa2GeSe6 Nonlinear Crystal is used for generating pulses in the mid-IR region.
The nonlinear coefficients of the BaGa2GeSe6 crystal are d11 = +23.6, d22 = -18.5, and d31 = +18.3 pm/W.
The transmission range of the BaGa2GeSe6 crystal is 0.522–18 um.
The width of the forbidden range of the BaGa2GeSe6 crystal is 2.38 eV.
The resistance to laser radiation of the BaGa2GeSe6 crystal is 5.35 J/sq.cm.
