Description

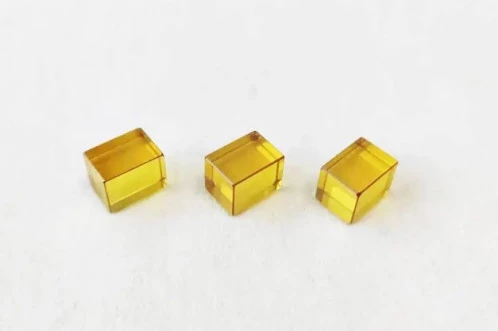

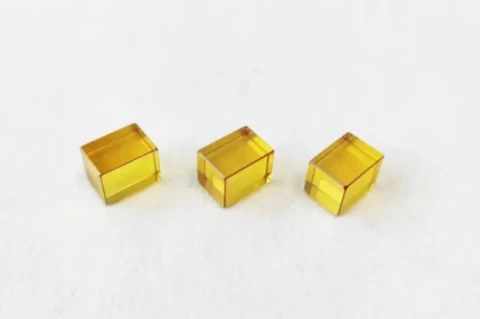

AgGaS2(AGS) crystal is transparent from 0.50 to 13.2 um. AGS crytal\'s high short wavelength transparency edging at 550nm is made use od in OPOs pumped by Nd:YAG laser; in numerous difference frequenty mixing experiments with diod; Ti:Sapphire, Nd:YAG and IR dye lasers covering 3-12um range;in direct infrared countermeasure systems; AGS crytals are also an option for SHG of CO2 laser. Thin AgGaS2(AGS) crystal plates are popular at ultrashort pulse generation in mid IR range by difference frequency generation employing NIR wavelength pulses.

Dimensions of AGS:
Stardard outer size: 8x8mm and 5x5mm, with thickness from 1.0-30.0mm

Specifications

Crystal Type: AgGaS2 (Silver Gallium Sulfide)
Phase Mathcing Type: Type I
Mounting: Unmounted
Width: 5 mm
Height: 5 mm
Length: 1 mm
Flatness: <= Lambda/6
Surface Quality (Scratch-Dig): 20-10
AR Coating: Both Sides
Parallelism: 1 arc Min

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features





Applications

Application of AGS:
. Generation second harmonics on CO and CO2 lasers
. Optical parametric oscilator
. Diffrent frequency generator to middle infrared regions up to 12mkm
. Frequency mixing in the middle IR region from 4.0 to 18.3um
. Tuneable solid state lasers(OPO pumped by Nd:YAG and others lasers operating in 1200-10000nm region with efficiency 0.1 to 10%)
. Optical narrow-band filters in the region near isotropic point (0.4974 at 300°K), transmission band beding tuned at temperature variation
. Up-conversion of CO2 laser radiation image into near-IR or visible region by using Nd:YAG, ruby or dye lasers with efficiency up to 30%



Frequently Asked Questions

What is AgGaS2 crystal used for?
AgGaS2 crystal is utilized for second harmonic generation in CO and CO2 lasers, functioning in optical parametric oscillators, mid-infrared frequency generation (up to 12µm), frequency mixing (4.0-18.3µm), tuning of solid-state lasers (such as Nd:YAG, operating at 1200-10000nm with 0.1-10% efficiency), optical narrow-band filters near isotropic points (0.4974 at 300K), transmission tuning with temperature, and converting CO2 laser imagery to near-IR or visible light through Nd:YAG, ruby, or dye lasers at efficiencies up to 30%.
What is the efficiency range of up-conversion of CO2 laser radiation image into near-IR or visible region using AgGaS2 crystal?
Up-conversion of CO2 laser radiation image into near-IR or visible region using AgGaS2 crystal has an efficiency up to 30%.
What is the size range of AgGaS2 crystal plates?
The standard outer size of AgGaS2 crystal plates is 8x8mm and 5x5mm, with thickness from 1.0-30.0mm.
What is the efficiency range of tuneable solid-state lasers using AgGaS2 crystal?
Tuneable solid-state lasers using AgGaS2 crystal have an efficiency range of 0.1 to 10%.
What is the transparency range of AgGaS2 crystal?
AgGaS2 crystal is transparent from 0.50 to 13.2 um.

Got more questions? Use the inquiry form to ask the supplier directly.
