3photon - LBO (Lithium triborate crystal)

3photon
REQUEST QUOTE

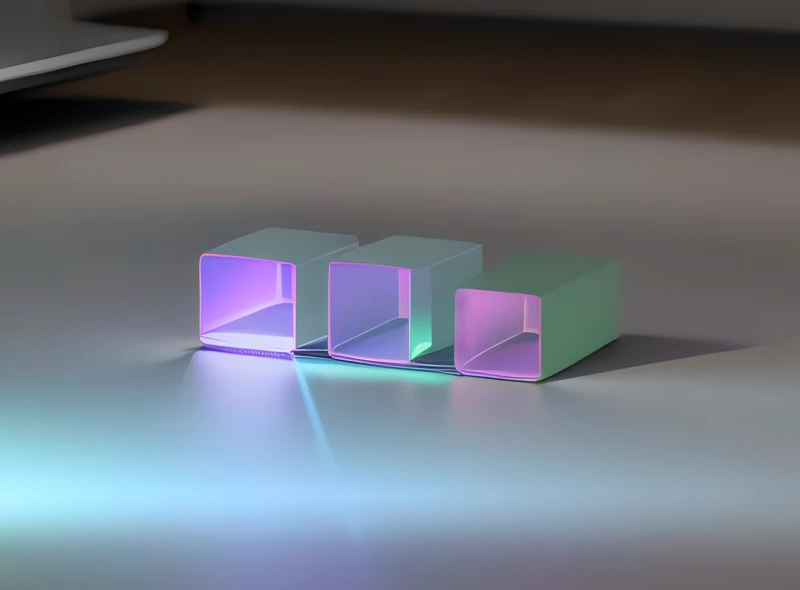

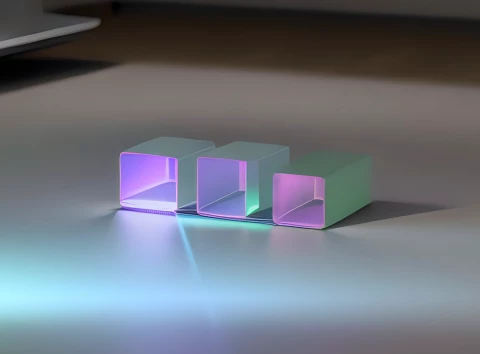

3photon - LBO (Lithium triborate crystal)

OVERVIEW

Due to the high damage threshold, wide transparency rage lithium triborate (LBO) is mostly used for second harmonic generation (SHG) a.k.a. frequency doubling and third harmonic generation (THG). Crystals can be heated up for protection or performance stabilization and then they can be used in high power applications.


3photon leading advantage is high damage threshold of >10 J/cm² @ 355 nm (for single-band) AR coated LBO crystals, which allows great performance at very high intensities with high conversion effectivity.

SPECIFICATION

  • Crystal Type: LBO (Lithium Triborate)
  • Phase Mathcing Type: Type I, Type II, Not Applicable
  • Mounting: Mounted, Unmounted
  • Width: 2-12 mm
  • Height: 2-12 mm
  • Length: 2-35 mm
  • Flatness: <= Lambda/10, <= Lambda/8, <= Lambda/6
  • Surface Quality (Scratch-Dig): 10-5, 20-10
  • AR Coating: One side, Both Sides, Not Coated

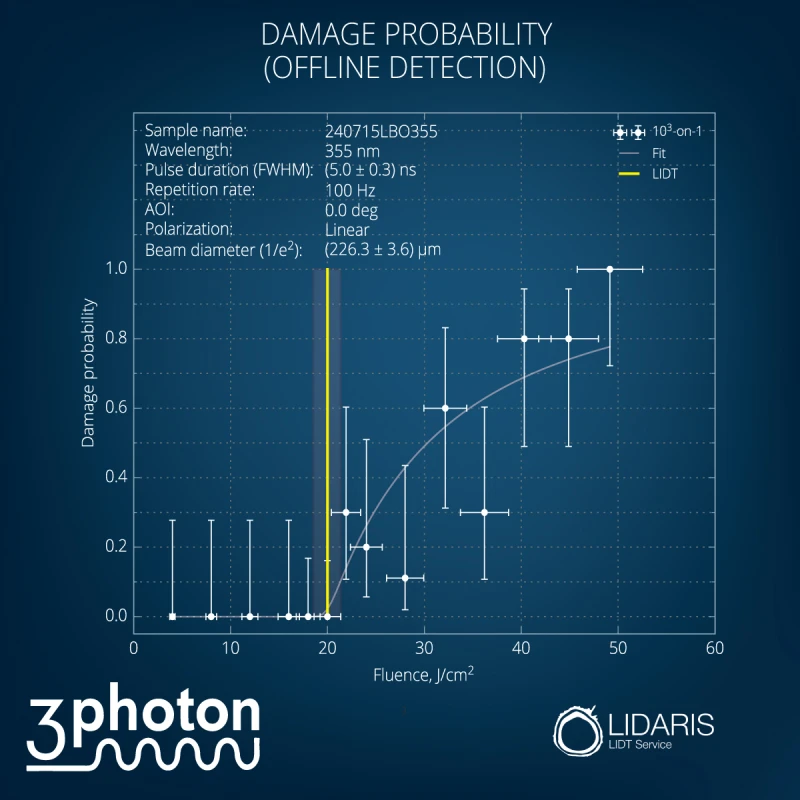

  • Laser Induced Damage Threshold (LIDT): >10 J/cm² @ 355 nm, 10 ns, 10 Hz
Download Data Sheet

Applications

LBO crystals are widely used in various laser systems, diode-pumped, medium and high-power lasers:



  • Industrial Lasers for material processing, cutting, engraving;

  • Research and development (R&D) lasers used by Universities, research centers;

  • Medical lasers, especially in ophthalmology applications and hair or tattoo removal;

  • Military and defense lasers.


Applications in lasers:


Lasers with Neodymium-doped medium (Nd:YAG, Nd:YLF, Nd:YVO4, Nd:YAP, Nd:KGW)



  • High power and/or widely tuned optical parametric amplifiers (OPA) and oscillators (OPO) of both Type I and Type I phase-matching;

  • Frequency doubling and tripling (2nd and 3rd harmonic generation)


CW lasers



  • Efficient and broad non-critical phase-matching (NCPM) frequency conversion of CW and quasi-CW;


Ti:Sapphire (Ti3+:Al2O3), Alexandrite (Cr3+:BeAl2O4), Cr:LiSAF (Cr3+:LiSrAlF6), Cr:LiSAF (Cr3+:LiCaAlF6), and Dye lasers



  • Frequency doubling (2nd harmonic generation)

KEY FEATURES


  • Transparency range from 160 nm to 2600 nm;

  • Low absorption @ 340-1064 nm;

  • No Gray-tracking problem, best for high power second harmonic generations (SHG);

  • Broadband or multi-wavelength anti-reflective (AR) or Protective (P) coatings for OPA/OPO applications;

  • High Laser-Induced Damage Threshold (LIDT) for a third harmonic generation (THG) >10 J/cm² @ 355 nm, 10 ns; 10 Hz;

  • Non-Critical Phase-Matching (NCPM) conditions for SHG @ 1064 nm (150 deg.C), with no walk-off displacement (ovens available upon request).

  • Technical consultation or performance simulations for particular application available upon request
