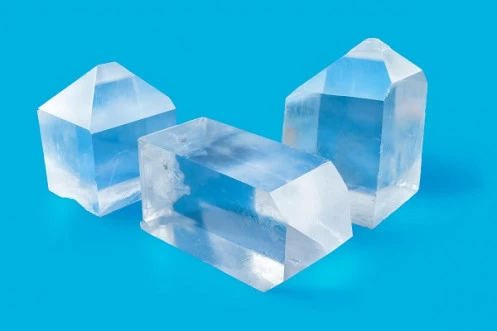

KDP/DKDP (KD*P) Crystals
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2022
Description
Potassium Dihydrogen Phosphate (KDP) and Potassium Deuterium Phosphate (DKDP) are among the most widely-used commercial nonlinear optical (NLO) crystals, recognized for their exceptional frequency conversion and electro-optic properties. These crystals are extensively employed for second-, third-, and fourth-harmonic generation of Nd:YAG lasers at room temperature, making them indispensable in high-power laser systems.
In addition to their nonlinear optical efficiency, KDP and DKDP exhibit high electro-optic coefficients, which make them ideal for electro-optical modulators, Q-switches, and Pockels cells. Their robust UV transmission, high optical damage threshold, and strong birefringence enable reliable performance in demanding laser applications.
Manufactured to precise tolerances with excellent surface quality, these crystals support high-quality beam propagation and consistent phase-matching, ensuring optimal conversion efficiency. DKDP crystals, in particular, are tailored for high-energy laser systems, with a laser damage threshold of 1 GW/cm² at 1064 nm (10 ns, 10 Hz). Non-hygroscopic and durable, KDP and DKDP crystals provide reliable long-term performance in both laboratory and industrial laser applications.
KDP/DKDP (KD*P) Crystals
Specifications |
|
|---|---|
| Crystal Type: | KD*P (Potassium Dideuterium Phosphate) |
| Phase Mathcing Type: | Not Applicable |
| Mounting: | Unmounted |
| Width: | 100 mm |
| Height: | 100 mm |
| Length: | 100 mm |
| Flatness: | <= Lambda/4 |
| Surface Quality (Scratch-Dig): | 40-20 |
| AR Coating: | Both Sides |
Features
- Good UV Transmission: Ensures efficient propagation of ultraviolet laser beams.
- High Optical Damage Threshold: Withstands up to 1 GW/cm² at 1064 nm (10 ns, 10 Hz for DKDP).
- High Birefringence: Provides effective phase-matching for nonlinear frequency conversion.
- High Nonlinear Coefficients: Enables efficient harmonic generation and optical parametric processes.
- Electro-Optic Capability: Suitable for modulators, Q-switches, and Pockels cells.
- Precision Fabrication: Flatness, parallelism, and surface quality ensure reliable laser performance.
Applications
- Laser Frequency Conversion: Doubling, tripling, and quadrupling of Nd:YAG lasers.
- Electro-Optical Modulation: High-speed modulators and optical signal control.
- Q-Switching Crystals: For Pockels cells in pulsed laser systems.
- High-Pulse-Energy Lasers: Suitable for advanced research and industrial applications.
Frequently Asked Questions
KDP/DKDP (KD*P) crystals are commonly used for doubling, tripling, and quadrupling the Nd:YAG laser at room temperature. They are also used as electro-optic modulators, Q-switches, and Pockels Cells.
The advantages of KDP/DKDP (KD*P) crystals include good UV transmission, high optical damage threshold, high birefringence, and high nonlinear coefficients.
Yes, KDP/DKDP (KD*P) crystals are used for laser frequency conversion, specifically for harmonic generation to achieve high pulse energy.
KDP/DKDP (KD*P) crystals are excellent electro-optic crystals with high electro-optic coefficients, making them ideal for electro-optical modulation.
Yes, KDP/DKDP (KD*P) crystals are commonly used as Q-switching crystals for Pockels cells.
