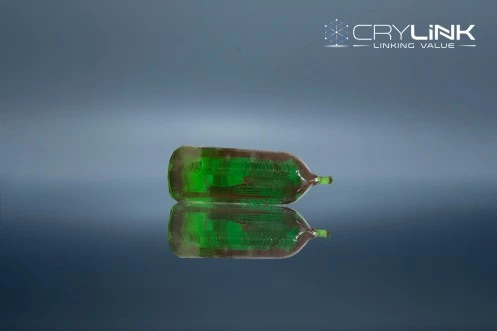

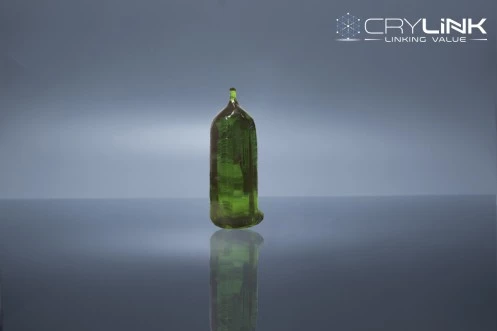

Cr Tm Ho:YAG Laser Crystal for Medical and Military Applications
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2019
Description
Cr,Tm,Ho:YAG Laser Crystal is an advanced laser material known for its high efficiency and versatility, primarily used in generating laser emissions at a wavelength of 2.1 µm. This crystal is effectively pumped by either a Xenon lamp or diode, with the pump source mainly deriving from the flashlamp energy absorbed by chromium (Cr3+), while holmium (Ho3+) serves as the working ion. Thulium (Tm3+) plays a crucial intermediary role in transferring energy, ensuring efficient operation of the laser system.
The 2.1 µm laser wavelength produced by the Cr,Tm,Ho:YAG crystal is particularly notable for its ability to be absorbed by water, which makes it highly effective for various applications. Additionally, it transmits through the atmosphere with ease and is considered safe for the eyes. These properties make the crystal an excellent choice for medical treatments, laser radar systems, and military applications. Furthermore, the 2.1 µm laser serves as an ideal pump source for mid-infrared optical parametric oscillators operating in the 3-5 µm range.
This laser crystal boasts a wide absorption band and high slope efficiency, making it suitable for both flash lamp and diode pumping methods. The material's physical and chemical properties, such as its cubic structure, high melting point, and robust thermal conductivity, contribute to its reliability and effectiveness in demanding environments. The Cr,Tm,Ho:YAG crystal is available in various sizes and specifications, ensuring versatility and adaptability to meet specific operational requirements.
Cr Tm Ho:YAG Laser Crystal for Medical and Military Applications
Specifications |
|
|---|---|
| Type Of Crystal: | Yb:KGW |
| Crystal Diameter: | 6 mm |
| Crystal Length: | 50 mm |
| AR Coating: | One side |
Features
- Efficient Laser Crystal: Cr,Tm,Ho:YAG is a highly efficient laser crystal that can be pumped by a Xenon lamp or diode.
- Wavelength: Operates at a lasing wavelength of 2.1 µm, which is safe for the eyes and ideal for various applications.
- Wide Absorption Band: Capable of absorbing a wide range of wavelengths, enhancing its versatility.
- High Slope Efficiency: Offers high slope efficiency, making it suitable for demanding applications.
Applications
- Medical Treatment: The 2.1 µm laser wavelength is highly absorbed by water, making it ideal for precise medical applications.
- Laser Radar: The laser can transmit through the atmosphere easily, making it suitable for laser radar systems.
- Military Applications: The eye-safe 2.1 µm wavelength is beneficial for various military uses.
- Mid-Infrared Optical Parametric Oscillator Pump Source: The 2.1 µm laser serves as an ideal pump source for 3-5 µm mid-infrared optical parametric oscillators.
Frequently Asked Questions
Cr, Tm, Ho:YAG laser crystal is widely used in medical treatment, laser radar, military, and 2100nm laser.
The features of Cr, Tm, Ho:YAG laser crystal are wide absorption band, working at room temperature, 2.1 mm lasing wavelength is for eye, high slope efficiency, and can be pumped by flash lamp or diode.
Cr, Tm, Ho:YAG is a high efficient laser crystal that is pumped by Xenon lamp or diode with a wavelength of 2.1μm.
The ideal pump source for 3-5 μm mid-infrared optical parametric oscillator is 2.1 μm laser.
The wavelength of the laser wave that can be absorbed by water very well is 2.1 μm.
