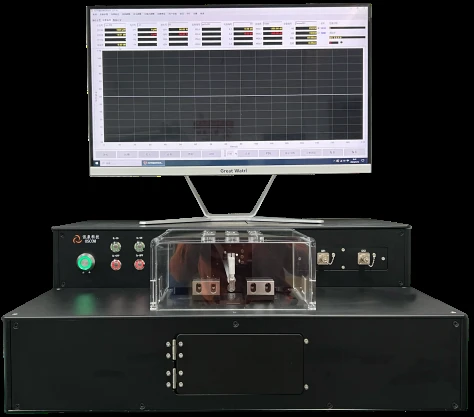

Optical Fiber Taper for Splitters and Multiplexers XQ7110

Name: Optical Fiber Taper for Splitters and Multiplexers XQ7110
Brand: Shenzhen Oscom Technology Co., Ltd
Availability: InStock

Description

Coupler Fiber Taper (XQ7110)

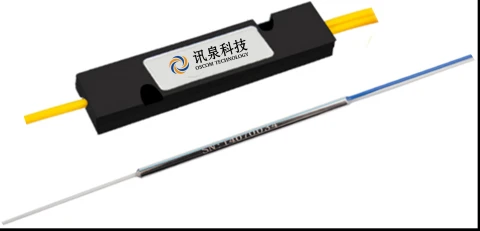

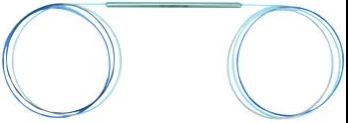

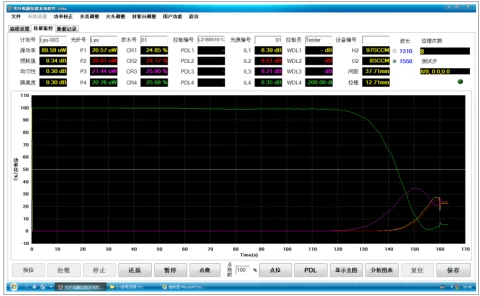

The XQ7110 series taper from Shenzhen Oscom Technology Co., Ltd. is a versatile and highly compatible solution designed for the production of various optical fiber splitters and WDM wavelength division multiplexers. This series is adept at creating conventional 1x2, 2x2, 1x3, and 1x4 optical fiber splitters, as well as SSC, WBC, DWC, and TWC devices with a range of optical splitting ratios. Additionally, it supports 980/1550WDM, 1310/1550WDM, and 850/1310nm multi-mode devices, making it an ideal choice for batch manufacturing of diverse tapering devices.

With its multifunctional capabilities, the XQ7110 series ensures high compatibility across various applications, providing a reliable and efficient solution for optical fiber tapering needs. The device's design focuses on precision and adaptability, catering to the demands of modern optical fiber technology. Its robust construction and advanced features make it suitable for both small-scale and large-scale production environments, ensuring consistent performance and high-quality output.

Shenzhen Oscom Technology Co., Ltd., located in the Guangming District of Shenzhen, China, is committed to delivering cutting-edge technology and exceptional service. The XQ7110 series is a testament to their dedication to innovation and quality in the field of optical fiber technology.

Specifications

Tapering Spacing:	10 - 100 mm, 1 - 20 mm, Other
Unilateral Tapering Speed:	0 – 800 um/sec
Fiber Holder Movement Resolution:	1.6 um
Scanning Resolution:	+/- 1um
Heater Left & Right Movement Resolution:	1.2 μm/step
Packaging Stage Movement Resolution:	2.5 μm/step
Hydrogen Flow Range:	0-300 sccm
Oxygen Flow Range:	0-100 sccm
Detector Type:	InGaAs/Si
Wavelength Range:	800-1700/400-1100 nm
Optical Power Detection Dynamic Range:	-60 - +3 dBm
Optical Power Measurement Resolution:	0.01 dB
Operating Environment Temperature:	23±3 ℃
Operating Environment Humidity:	50-70% RH
Operating Power Supply:	AC100-240V/50-60Hz/5A
Dimensions:	610×496×230 mm
Weight:	53 Kg
Heater Scan Width:	±20 mm
Tapering Spacing:	18-70 mm (Typical), 14-100 mm (Custom)

Download Data Sheet

Features

Versatile Applications: The XQ7110 series is designed for creating conventional 1x2/2x2/1x3/1x4 optical fiber splitters and WDM wavelength division multiplexers, including SSC, WBC, DWC, TWC devices.
Wide Compatibility: Supports various optical splitting ratios and multi-mode devices such as 980/1550WDM, 1310/1550WDM, and 850/1310nm.
Customizable Tapering: Offers tapering spacing from 18-70mm (typical) and 14-100mm (custom).
Precision Control: Features a heater scan width of ±20mm and a unilateral tapering speed of 0-800μm/s.
High Resolution: Fiber holder movement resolution of 1.6μm, heater movement resolution of 1.2μm/step, and packaging stage movement resolution of 2.5μm/step.
Gas Flow Range: Hydrogen flow range of 0-300sccm and oxygen flow range of 0-100sccm.
Advanced Detection: Equipped with InGaAs/Si detector type and a wavelength range of 800-1700/400-1100nm.
Optical Power Measurement: Dynamic range of -60 to +3dBm with a resolution of 0.01dB.
Stable Operating Environment: Operates efficiently at a temperature of 23±3℃ and humidity of 50-70%RH.
Flexible Power Supply: Compatible with AC100-240V/50-60Hz/5A.
Compact Design: Dimensions of 610×496×230mm and a weight of 53Kg.
Configuration Options: Available in models XQ7111, XQ7112, and XQ7113, each with specific applications and configurations such as ceramic heaters, hybrid heaters, and various fiber holders and optical power detectors.

Applications

Production of fiber splitters and WDM wavelength division multiplexers

Add to Watchlist (My Watchlist)

Ships from:

China

Sold by:

Shenzhen Oscom Technology Co., Ltd

On FindLight:

since 2022

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the XQ7110 series used for?

The XQ7110 series taper is mainly used for making conventional 1x2/2x2/1x3/1x4 optical fiber splitters and WDM wavelength division multiplexers, including devices with various optical splitting ratios and multi-mode devices such as 980/1550WDM, 1310/1550WDM, and 850/1310nm.

What are the typical and custom tapering spacings for the XQ7110?

The typical tapering spacing for the XQ7110 is 18-70mm, while custom spacing can range from 14-100mm.

What is the operating environment for the XQ7110?

The XQ7110 operates in an environment with a temperature of 23±3℃ and humidity of 50-70% RH.

What is the power supply requirement for the XQ7110?

The XQ7110 requires an AC power supply of 100-240V, 50-60Hz, and 5A.

What are the dimensions and weight of the XQ7110?

The dimensions of the XQ7110 are 610×496×230mm, and it weighs 53kg.

What types of detectors are used in the XQ7110?

The XQ7110 uses InGaAs/Si detectors with a wavelength range of 800-1700/400-1100nm.

What are the different product models available for the XQ7110 series?

The XQ7110 series includes models XQ7111, XQ7112, and XQ7113, each designed for specific applications such as single mode couplers, WDM wavelength division multiplexers, and multi-mode coupler production.
