Micro-nano Fiber Taper (XQ71B0)

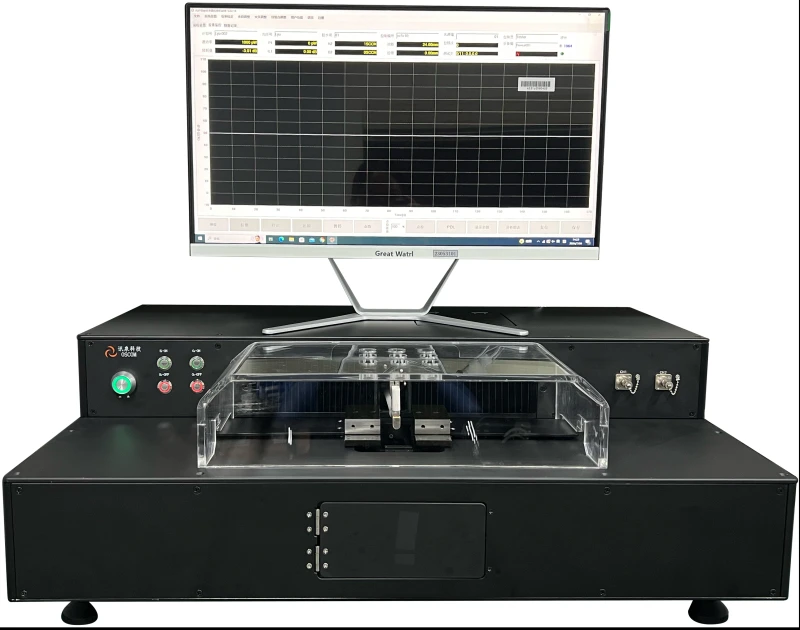

The XQ71B0 Micro-nano Fiber Taper is a cutting-edge tool designed for the precise creation of micro-nano fibers, primarily utilized in the field of optical fiber sensing. This advanced device incorporates high-precision components such as lead screws and guide rails, ensuring exceptional tapering accuracy. The XQ71B0 is capable of producing cone diameters of less than 1μm, with adjustable cone lengths ranging from 1 to 10 cm, making it an ideal choice for scientific research conducted by universities and other institutions.
Engineered for stability and reliability, the XQ71B0 offers ease of use, allowing researchers and professionals to focus on their work without the hassle of complex operations. Its robust design and user-friendly interface make it a preferred choice for those seeking to advance their research in optical fiber technology.
SHENZHEN OSCOM TECHNOLOGY CO., LTD., located in the Guangming District of Shenzhen, China, is committed to providing high-quality products and exceptional customer service. For more information, please contact us via phone at +86-755-83118073 or email at Sales@szoscom.com.
Micro-nano Fiber Taper for Optical Fiber Sensing XQ71B0
Specifications
| Tapering Spacing: | 1 - 50 mm, 10 - 100 mm, Other |
|---|---|
| Unilateral Tapering Speed: | 0 – 1000 um/sec |
| Fiber Holder Movement Resolution: | 0.4 um |
| Scanning Resolution: | +/- 1um |
| Optical Power Detection Dynamic Range: | -60-+3dB |
| Tapering Spacing: | 18-70mm / 18-200mm |
| Heater Scan Width: | ±20mm / ±50mm |
| Weight: | 53Kg |
| Dimensions (L×W×H): | 610×496×230mm / 790x525x230mm |
| Operating Power Supply: | AC100-240V/50-60Hz/5A |
| Operating Environment Humidity: | 50-70%RH |
| Operating Environment Temperature: | 23±3℃ |
| Optical Power Measurement Resolution: | 0.01dB |
| Unilateral Tapering Speed: | 0-1000μm/s |
| Wavelength Range: | 800-1700nm |
| Detector Type: | InGaAs |
| Oxygen Flow Range: | 0-100sccm |
| Hydrogen Flow Range: | 0-300sccm |
| Packaging Stage Movement Resolution: | 2.5μm/step |
| Heater Left & Right Movement Resolution: | 1.2μm/step |
| Fiber Holder Movement Resolution: | 0.4μm |
Download Data Sheet
Features

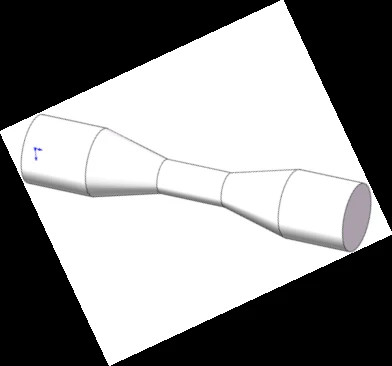

- High Precision Tapering: The XQ71B0 utilizes a high-precision lead screw and guide rail to ensure accurate tapering of micro-nano fibers, with cone diameters less than 1μm and adjustable cone lengths from 1 to 10 cm.
- Versatile Tapering Spacing: Offers tapering spacing options of 18-70mm and 18-200mm, catering to various micro-nano fiber production needs.
- Adjustable Heater Scan Width: Features a heater scan width of ±20mm to ±50mm, providing flexibility in the tapering process.
- Precision Movement: Equipped with a fiber holder movement resolution of 0.4μm, heater left & right movement resolution of 1.2μm/step, and packaging stage movement resolution of 2.5μm/step for precise control.
- Gas Flow Control: Supports a hydrogen flow range of 0-300sccm and an oxygen flow range of 0-100sccm for optimal tapering conditions.

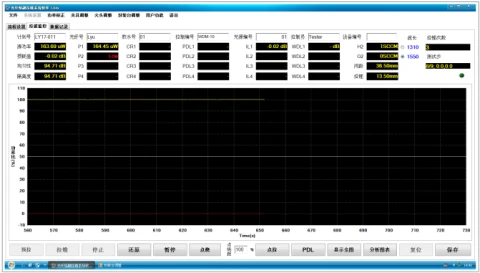

- Advanced Detection: Incorporates an InGaAs detector with a wavelength range of 800-1700nm, offering an optical power detection dynamic range of -60 to +3dB and a measurement resolution of 0.01dB.
- Stable Operating Environment: Designed to operate in environments with a temperature of 23±3℃ and humidity of 50-70%RH.
- Flexible Power Supply: Compatible with AC100-240V/50-60Hz/5A power supply, ensuring adaptability to various power sources.
- Compact Design: Available in dimensions of 610×496×230mm or 790x525x230mm, with a weight of 53Kg, making it suitable for different laboratory setups.
- Application-Specific Models: Choose between XQ71B1 for conventional micro-nano fiber production and XQ71B2 for extended production, each with a 1-channel optical power detector.
Applications
- Conventional Micro-Nano Fiber Production
- Product Model: XQ71B1
- Application: Suitable for conventional micro-nano fiber production.
- Configuration:
- Tapering Spacing: 18-70mm
- 1-channel optical power detector
- Extended Micro-Nano Fiber Production
- Product Model: XQ71B2
- Application: Suitable for extended micro-nano fiber production.
- Configuration:
- Tapering Spacing: 18-200mm
- 1-channel optical power detector
