Description

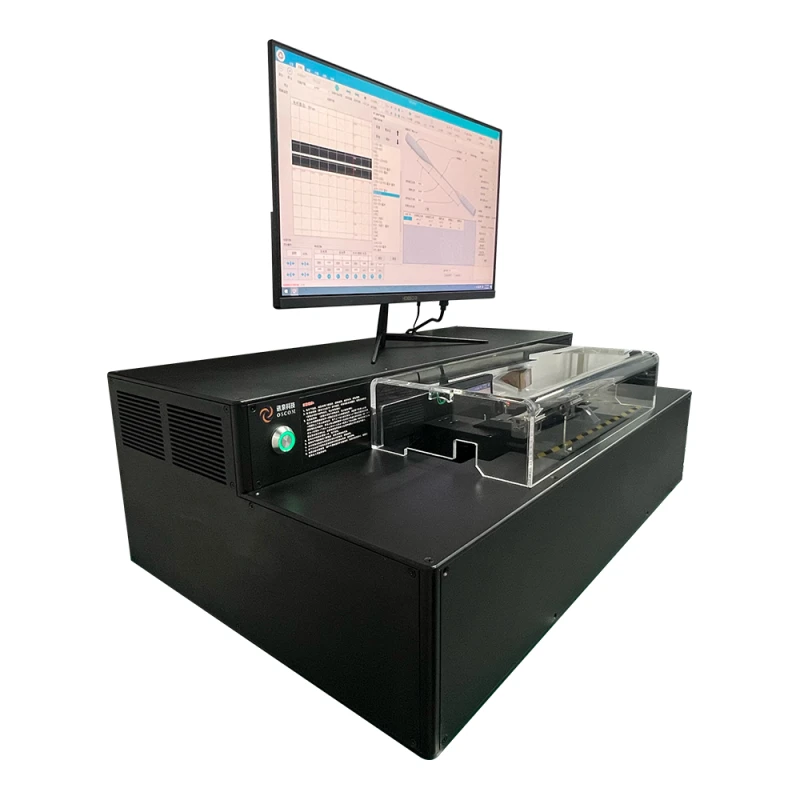

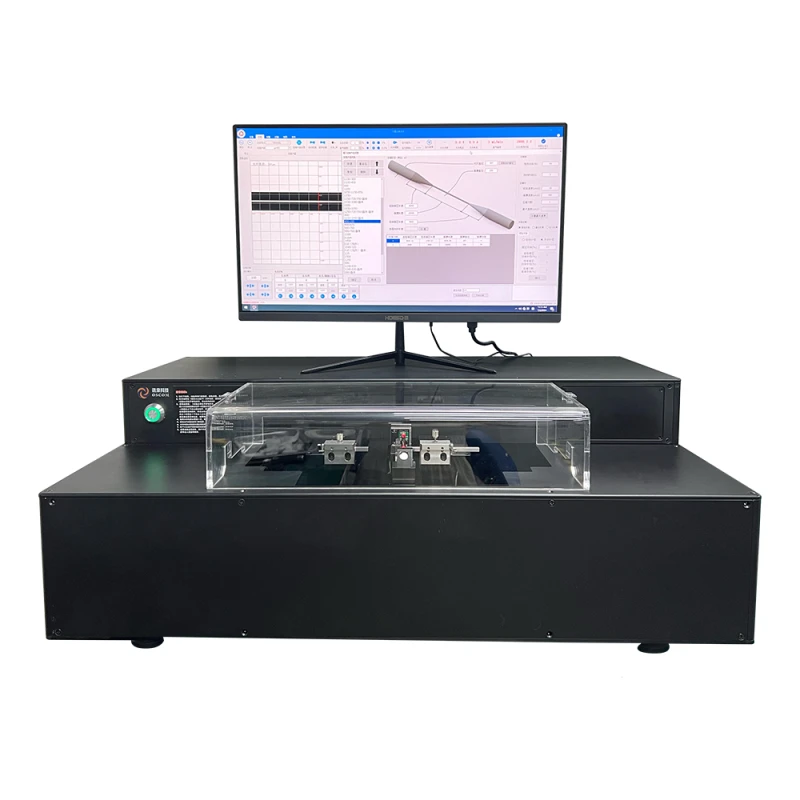

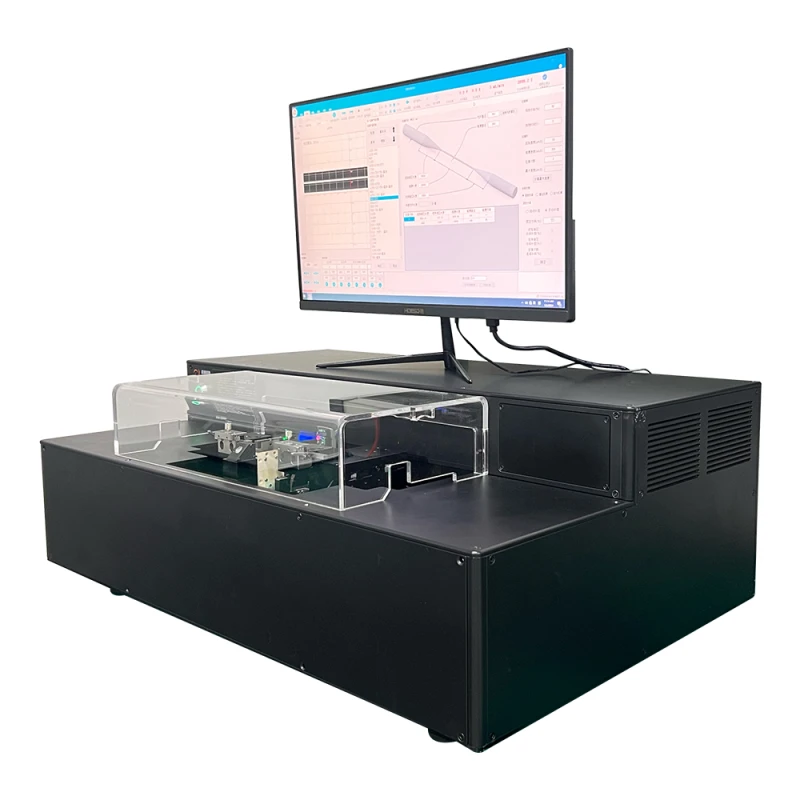

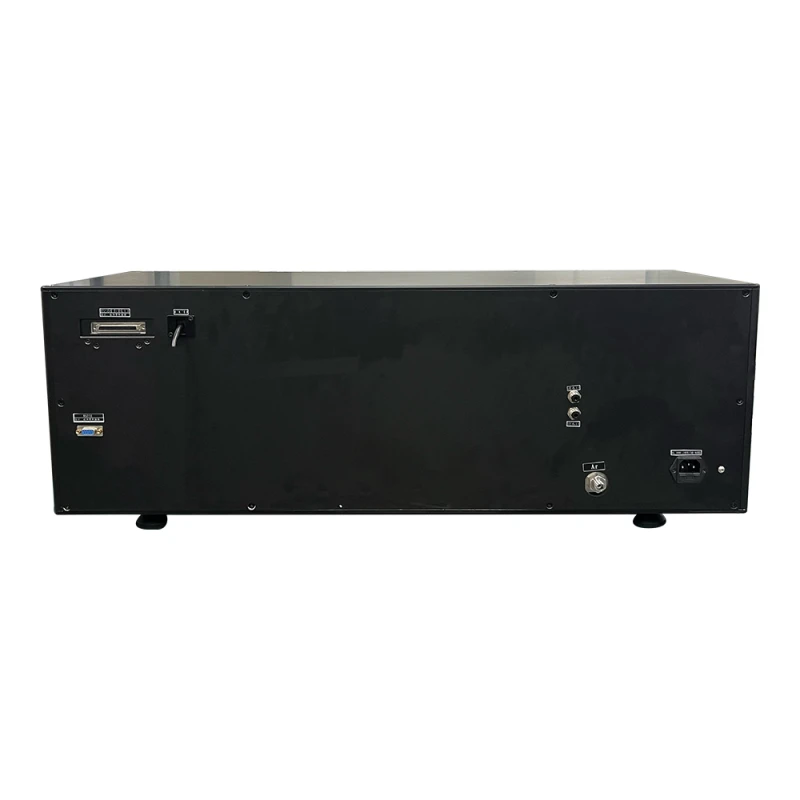

XQ7190A is a graphite fiber taper with U-shaped heated graphite filament as heat source which is designed independently by OSCOM Technology. It mainly used for manufacturing ultra high power optical combiner and it can taper low melting point fiber, quartz fiber, special fiber, glass tube, quartz rod, etc. XQ7190A is equipped with automatic fiber tapering system, the automatic tapering and cone area scan will be accomplished after inputting fiber and tapering diameters which greatly improve the success rate of tapering.

OSCOM TECHNOLOGY - Graphite Fiber Taper - XQ7190A

Visit the Shenzhen Oscom Technology Co., Ltd Store

Specifications

Tapering Spacing: 50 - 200 mm, 50 - 600 mm
Unilateral Tapering Speed: 0 – 1000 um/sec
Fiber Holder Movement Resolution: 0.1 um
Tapering Diameter: 80 – 1500 um
Heating Temperature: 30 – 2500 degC
Scanning Resolution: +/- 3um
Parameters: XQ7190A
Tapering Spacing: 50-200/50-600mm
Unilateral Tapering Speed: 0-1000μm/s
Fiber Holder Movement Resolution: 0.1μm
Tapering Diameter: 80-1500μm
Graphite Components: Φ0.25mm/Φ0.6mm/Φ1.6mm
Heating Temperature: 30-2500℃
Protective Gas: Argon
Refrigeration System: Water-cooling
CCD View: 2.8x2.1mm or customized
Image-forming System: Single lens
Cone Analysis: Automatic scanning in z-axis direction
Scanning Resolution: ±3μm
Measuring System: Automatic measurement
Tapering Type: Unilateral/Reverse/Same direction tapering
Tension System: Figure/Curve monitoring
Tension Range: Max: 5000gf
Operating Environment: Temperature: 23±3℃/Humidity: 50-70%RH
Operating Power Supply: AC100-240V/50-60Hz/5A
Dimensions (LxWxH): 850x550x280/1300x550x280mm
Weight: 60/80Kg

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Innovative Design: The XQ7190A is a graphite fiber taper featuring a U-shaped heated graphite filament as a heat source, independently designed by OSCOM Technology.
  • Versatile Application: Ideal for manufacturing ultra-high power optical combiners, it can taper low melting point fiber, quartz fiber, special fiber, glass tube, quartz rod, etc.
  • Automatic Tapering System: Equipped with an automatic fiber tapering system, allowing for precise tapering and cone area adjustments after inputting fiber and tapering diameters.
  • Technical Precision:
    • Tapering Spacing: 50-200/50-600mm
    • Unilateral Tapering Speed: 0-1000 μm/s
    • Fiber Holder Movement Resolution: 0.1 μm
    • Tapering Diameter: 80-1500 μm
    • Heating Temperature: 30-2500℃
  • Advanced Components: Features graphite components with diameters of Φ0.25mm/Φ0.6mm/Φ1.6mm and a protective gas system using Argon.
  • Efficient Cooling System: Includes a water-cooling refrigeration system to maintain optimal operating conditions.
  • High-Resolution Viewing: Comes with a CCD view of 2.8x2.1mm or customizable options and a single lens image-forming system.
  • Comprehensive Measurement and Analysis:
    • Automatic scanning in z-axis direction with a scanning resolution of ±3 μm
    • Automatic measurement system
  • Diverse Tapering Options: Supports unilateral, reverse, and same direction tapering types.
  • Robust Tension System: Includes figure/curve monitoring with a tension range up to 5000 gf.
  • Optimal Operating Environment: Designed to operate efficiently at a temperature of 23±3℃ and humidity of 50-70% RH.
  • Flexible Power Supply: Compatible with AC100-240V/50-60Hz/5A power supply.
  • Compact Dimensions: Available in two sizes: 850x550x280mm or 1300x550x280mm, with a weight of 60/80

Applications

  • Industrial Lasers
  • Optical Fiber Communication
  • Optical Fiber Sensing
  • Biomedicine
  • Laser Radar
  • Military Industry

Frequently Asked Questions

What is the XQ7190A Graphite Fiber Taper?
The XQ7190A taper is a graphite fiber taper with a U-shaped heated graphite filament as a heat source, designed by OSCOM Technology. It is mainly used for manufacturing ultra-high power optical combiners and can taper various types of fibers and rods.
What are the main applications of the XQ7190A fiber taper?
The XQ7190A fiber taper is primarily used for manufacturing power combiners and tapering glass tubes, quartz fibers, low melting point fibers, special fibers, and quartz rods.
What is the tapering speed of the XQ7190A fiber taper?
The unilateral tapering speed of the XQ7190A ranges from 0 to 1000 μm/s.
What is the operating temperature range for the XQ7190A fiber taper?
The heating temperature of the XQ7190A taper can be adjusted from 30°C to 2500°C.
What type of protective gas is used with the XQ7190A fiber taper?
The XQ7190A fiber taper uses Argon as the protective gas.
What are the power supply requirements for the XQ7190A taper?
The XQ7190A requires an AC power supply of 100-240V, 50-60Hz, and 5A.
What is the operating environment for the XQ7190A?
The XQ7190A taper should be operated in an environment with a temperature of 23±3°C and humidity levels between 50-70% RH.

Got more questions? Use the inquiry form to ask the supplier directly.
