Long Lead Screw Fiber Taper (XQ7170)

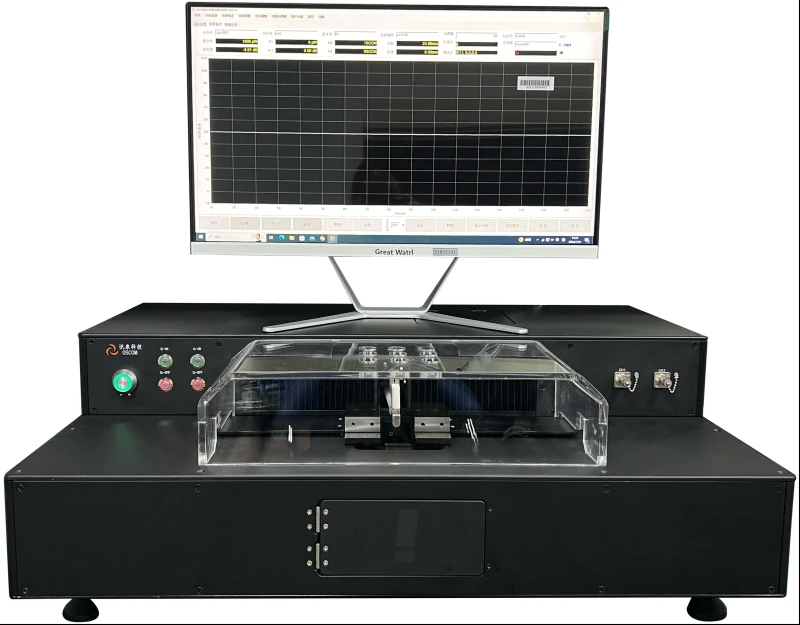

The XQ7170 from Shenzhen Oscom Technology Co., Ltd. is a specialized tool designed for the production of high-power optical fiber combiners and unique cone-shaped fiber bundles. This product is engineered to extend the tapering movement length between 200mm and 500mm, making it an ideal choice for mass production environments. Equipped with a specialized optical fiber holder and heater, the XQ7170 ensures stability, reliability, and ease of use, catering to the demands of high-power fiber combiner manufacturing.

One of the standout features of the XQ7170 is its precision in tapering spacing, which ranges from 18mm to 500mm. The unilateral tapering speed can reach up to 1000μm/s, allowing for efficient and precise manufacturing processes. The device also boasts high-resolution movement capabilities, with the fiber holder movement resolution at 0.8μm and the heater's left and right movement resolution at 1.2μm per step. Additionally, the packaging stage movement resolution is set at 2.5μm per step, ensuring meticulous control over the production process.

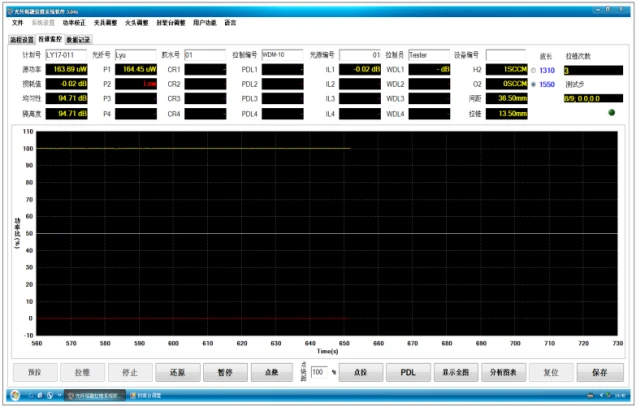

The XQ7170 is designed to operate within a wavelength range of 800-1700nm or 400-1100nm, with an optical power detection dynamic range of -60 to +3dB. The optical power measurement resolution is finely tuned at 0.01dB, providing accurate readings essential for high-quality fiber production. The device operates optimally in environments with temperatures of 23±3℃ and humidity levels between 50-70% RH, powered by an AC100-240V/50-60Hz/5A supply. With dimensions of 790x525x230mm or 1043x466.5x253mm and a weight of 55Kg, the XQ7170 is a robust and reliable addition to any fiber manufacturing setup.
