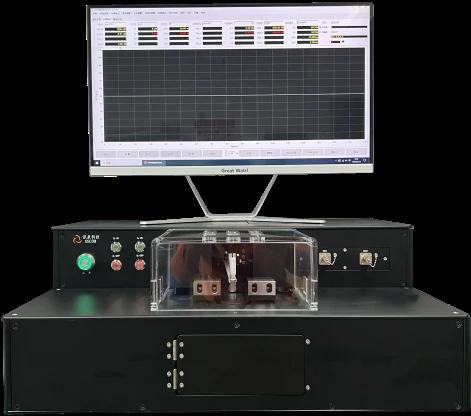

Hydrogen-oxygen Flame Coupler Fiber Taper (XQ7110B)
The XQ7110B represents a significant advancement in fiber taper technology, building upon the foundation of its predecessor with a comprehensive upgrade to its hardware, circuit structure, and software system. This enhancement ensures improved stability and reliability, making it an ideal choice for professionals in the fiber optics industry. The XQ7110B is designed to cater to the needs of manufacturing conventional fiber splitters and WDM wavelength division multiplexers, including SSC, WBC, DWC, and TWC devices. Its multifunctional capabilities and high compatibility make it particularly suitable for batch production of various tapering devices.
This state-of-the-art equipment is engineered to handle a wide range of optical splitting ratios and supports multi-mode devices such as 980/1550WDM, 1310/1550WDM, and 850/1310nm. The XQ7110B's versatility is further enhanced by its ability to accommodate different tapering configurations, ensuring that it meets the diverse requirements of modern optical manufacturing processes. With its precise control and advanced features, the XQ7110B is a valuable asset for any organization looking to optimize its fiber tapering operations.
In addition to its robust performance, the XQ7110B offers a user-friendly experience with its intuitive interface and customizable options. The device's design prioritizes ease of use, allowing operators to efficiently manage and adjust settings to achieve optimal results.
Whether you are involved in producing couplers, combiners, or other optical components, the XQ7110B provides the reliability and precision necessary to meet the demands of today's fast-paced technological landscape.

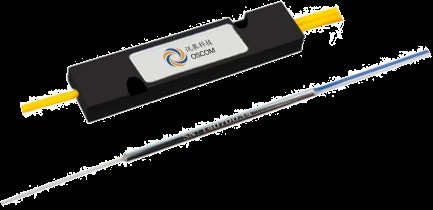

Hydrogen-Oxygen Flame Coupler Fiber Taper for Optical Devices XQ7110B
Specifications
| Tapering Spacing: | 1 - 50 mm, 10 - 100 mm, Other |
|---|---|
| Unilateral Tapering Speed: | 0 – 800 um/sec |
| Fiber Holder Movement Resolution: | 1 um |
| Scanning Resolution: | +/- 1um |
| Optical Power Detection Dynamic Range: | -60 - +3dBm |
| Tapering Spacing: | 18-60mm |
| Heater Left & Right Scan Width: | ±20mm |
| Weight: | 53kg |
| Dimensions: | 610x496x230mm |
| Operating Power Supply: | AC100-240V/50-60Hz/5A |
| Operating Environment Humidity: | 50-70%RH |
| Operating Environment Temperature: | 23±2℃ |
| Optical Power Measurement Resolution: | 0.01dB |
| Unilateral Tapering Speed: | 0-800μm/s |
| Wavelength Range: | 800-1700/400-1100 nm |
| Detector Type: | InGaAs/Si(Short wavelength measurement) |
| Oxygen Flow Range: | 0-100sccm or Customizable |
| Hydrogen Flow Range: | 0-300sccm or Customizable |
| Packaging Table Movement Resolution: | <0.00125 mm/step |
| Heater Left & Right Movement Accuracy: | <0.00125 mm/step |
| Fiber Holder Movement Accuracy: | <0.001mm/step |
Download Data Sheet
Features
- Advanced Design: The XQ7110B features an upgraded hardware and software system, enhancing stability and reliability for fiber tapering processes.
- Versatile Applications: Ideal for manufacturing conventional 1x2/2x2/1x3/1x4 fiber splitters and WDM wavelength division multiplexers, including SSC, WBC, DWC, and TWC devices.
- High Compatibility: Suitable for batch manufacturing of various tapering devices, supporting a wide range of optical splitting ratios and multi-mode devices.
- Precision Tapering: Offers tapering spacing of 18-60mm with a unilateral tapering speed of 0-800μm/s.
- Accurate Movement: Features movement accuracy of less than 0.001mm/step for fiber holders and less than 0.00125 mm/step for heater and packaging table movements.
- Customizable Gas Flow: Hydrogen flow range of 0-300sccm and oxygen flow range of 0-100sccm, both customizable to meet specific requirements.
- Wide Wavelength Range: Supports wavelength measurement ranges of 800-1700 nm and 400-1100 nm with InGaAs/Si detectors.
- Dynamic Optical Power Detection: Offers a dynamic range of -60 to +3dBm with a measurement resolution of 0.01dB.
- Optimal Operating Conditions: Designed to operate at a temperature of 23±2℃ and humidity of 50-70%RH.
- Flexible Power Supply: Operates on AC100-240V/50-60Hz/5A, accommodating various power environments.
- Compact and Robust: Dimensions of 610x496x230mm and a weight of 53kg, ensuring a sturdy and space-efficient design.
- Comprehensive Configuration Options: Offers standard and optional configurations, including motor setups, optical power detectors, ceramic heaters, and customizable features like flow meters and vacuum adsorption.
- Enhanced Customization: Provides options for UV light sources, tension monitoring, online cleaving, and high precision motors to tailor the device to specific needs.
Applications

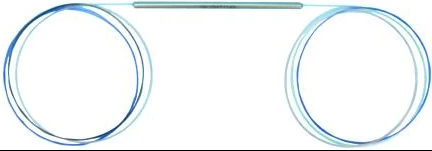

- Conventional Fiber Splitters: Ideal for creating 1x2, 2x2, 1x3, 1x4, and other fiber splitters.
- Wavelength Division Multiplexers (WDM): Suitable for manufacturing WDM devices such as SSC, WBC, DWC, TWC with various optical splitting ratios.
- Multi-mode Devices: Compatible with 980/1550WDM, 1310/1550WDM, and 850/1310nm multi-mode devices.
- Batch Manufacturing: Highly suitable for batch production of various tapering devices due to its multifunctionality and high compatibility.
- Customizable Tapering: Tapering spacing can be customized from 15-90mm to meet specific requirements.
- Tension Monitoring: Equipped with tension monitoring and tension test capabilities.
- On-line Cleaving: Features on-line cleaving with package table module options.
- High Precision Motors: Option for high precision motors for enhanced performance.
Frequently Asked Questions
What is the XQ7110B Hydrogen-oxygen Flame Coupler Fiber Taper used for?
What are the key features of the XQ7110B fiber taper?
What is the tapering spacing range for the XQ7110B?
What is the operating environment for the XQ7110B fiber taper?
What are the power supply requirements for the XQ7110B?
Can the XQ7110B be customized?
What is the weight and size of the XQ7110B fiber taper?
