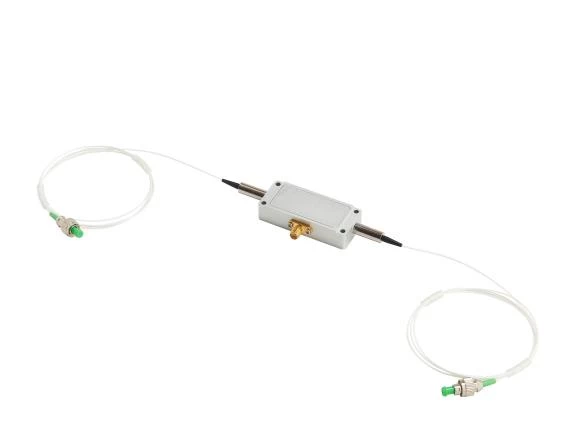

Optical Fiber Coupled Acousto-Optic Modulator (FAOM) Customized Quantum Optics

Name: Optical Fiber Coupled Acousto-Optic Modulator (FAOM) Customized Quantum Optics
Brand: CSRayzer Optical Technology
Availability: InStock

Description

Optical fiber coupled acousto-optic modulator mainly includes acousto-optic crystal and optical fiber collimator, etc. The modulation signal acts on the piezoelectric converter in the form of electrical signal, and the frequency and amplitude of the input modulation signal are changed to realize the frequency modulation and amplitude modulation of the laser. The optical fiber AOM with wavelength of 400-1550nm can be customized according to the needs of users.

Specifications

Center Wavelength:	400 nm
Operational Wavelength Range:	400 – 1550 nm
Acoustic Mode:	Transverse
Operating Frequency:	80 MHz
Insertion Loss:	≤3 dB
Polarization Extinction Ratio:	≥18 dB
Extinction Ratio:	≥50 dB

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Low insertion loss
High on-off extinction ratio
Fast rising edge
High polarization extinction ratio
High withstand power

Applications

Quantum Optics

Name

Work Email

Organization (recommended)

How many do you need?

Your message to supplier

Ships from:

China

Sold by:

CSRayzer Optical Technology ✓ Verified Supplier

On FindLight:

since 2020

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is an Optical Fiber Coupled Acousto-Optic Modulator (FAOM)?

An Optical Fiber Coupled Acousto-Optic Modulator (FAOM) is a device that includes an acousto-optic crystal and an optical fiber collimator. It modulates laser frequency and amplitude by acting on a piezoelectric converter with an electrical signal.

What are the key features of the CSRAYZER Optical Fiber Coupled Acousto-Optic Modulator?

The key features include low insertion loss, high on-off extinction ratio, fast rising edge, high polarization extinction ratio, and high withstand power.

What wavelength range can the CSRAYZER FAOM be customized for?

The CSRAYZER FAOM can be customized for wavelengths ranging from 400 nm to 1550 nm according to user needs.

What is the insertion loss of the CSRAYZER FAOM models?

The insertion loss of the CSRAYZER FAOM models is typically ≤3 dB, with some models having an insertion loss of ≤2.5 dB or ≤4 dB.

What is the polarization extinction ratio for the CSRAYZER FAOM models?

The polarization extinction ratio for the CSRAYZER FAOM models ranges from ≥18 dB to ≥25 dB, depending on the specific model.

What is the rising/falling edge time for the CSRAYZER FAOM models?

The rising/falling edge time for the CSRAYZER FAOM models varies from ≤10 ns to ≤60 ns, depending on the specific model.

How can I contact CSRAYZER Optical Technology Co., Ltd for more information?

You can contact CSRAYZER Optical Technology Co., Ltd by phone at +86-17707135527 or by email at INTL@csrayzer.com. More information is also available on their website at www.csrayzer.cn.
