Description

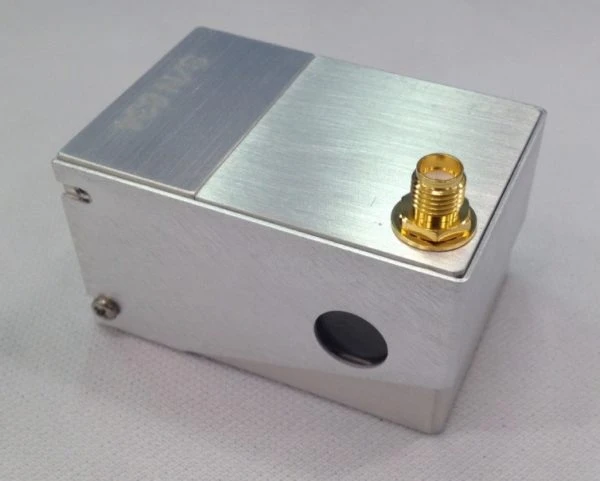

Achieve unmatched precision and speed with G&H's acousto-optic deflectors (AOD), designed for high-speed laser beam scanning across a wide range of applications. With operating rates exceeding 250 MHz, our AO deflectors deliver exceptional performance, making them ideal for material processing, digital imaging, and more.
Incredible Accuracy at Incredible Speeds
Our AO deflectors resolve hundreds to thousands of spots within just a few degrees, enabling scan times as fast as a few microseconds. The total number of resolvable spots is determined by the acoustic wave's traversal time across the optical beam within the AO crystal (known as access time) and the operating frequency bandwidth.
Wavelength Coverage and Scan Angles
Our AO deflectors provide comprehensive wavelength coverage from 266 nm to 10.6 µm, with typical scan angles ranging from ~5 mrad to >60 mrad, depending on the wavelength and RF bandwidth. These capabilities ensure flexibility for diverse laser beam scanning requirements.
Highly Uniform Diffraction Efficiency
Whether performing 1D or 2D beam scanning or deflecting a beam through a fixed angle, our AO deflectors deliver highly uniform diffraction efficiency across the full scan angle. This ensures consistent power throughput, critical for high-precision applications.
Flexible Design Options
We offer a variety of active aperture sizes, up to 15 mm, and utilize high-performance AO materials, including:
TeO₂
Crystal Quartz
Germanium
Sapphire
Custom design options are also available, including solutions optimized for shorter wavelengths and wider scan angles to meet the unique needs of volume OEM applications.
Advanced 2D Beam Scanning
For advanced 2D beam scanning, two deflectors can be cascaded in series. Our AODF Dual Driver with phase-synchronized outputs provides optimal RF driver control for these applications, enabling seamless and precise beam manipulation.
Standard and Customized Solutions
We offer a wide range of standard AO deflectors for wavelengths from 266 nm to 1500 nm. For specialized applications, we provide custom AO deflector solutions, including multi-channel configurations for high-speed, high-volume OEM requirements.
EQ Photonics GmbH - AOD 4085
Specifications |
|
|---|---|
| Center Wavelength: | 1064 nm |
| Operational Wavelength Range: | 750 – 1064 nm |
| Acoustic Mode: | Transverse |
| Operating Frequency: | 85 MHz |
| Light Polarization: | Linear |
| Optical Power Density: | Not Specified |
| Deflection Angle: | Not Specified |
| Frequency Range: | 55 - 110 MHz |
| Scan Angle: | up to 51.5 mrad |
| Diffraction Efficiency: | 70 % |
| Active Aperture: | 15 mm |
Features
- great for high power XY scanning applications
- highly uniform diffraction efficiency
- large scan angles
- Solid-state design
- Accurate position control
- Fast scan speeds
- Good temperature stability
- Repeatable performance
- Custom designs available
The acousto-optical deflector enables a wide range of deflection angles of incoming laser beams to first order. The deflection angle changes proportionally with the applied frequency. The requirements for a deflector are typically characterised by the number of points that can be displayed, the tuning range (RF) and the resulting deflection angle, the minimum diffraction efficiency that can be achieved, the wavelength and the beam parameters.
Applications
- Heterodyne-interferometry
- laser tweezer
- online-process control
- optical inspection
- material processing
- 2D - XY scanning
