Description
The high speed fiber coupled acousto-optic modulator has the characteristics of fast rise time, wide modulation bandwidth range, high laser peak power, and its compact structure, high reliability, suitable for harsh environments.

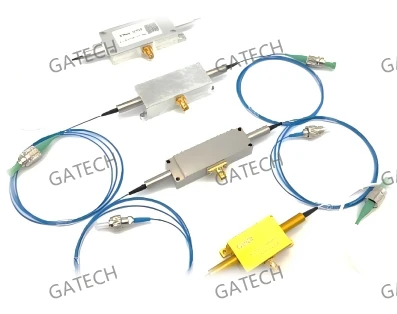

Fiber-Coupled Acousto-Optic Modulator, 2100nm, 200MHz, PM Fiber
Guangao Technology
Specifications
| Center Wavelength: | 2100 nm |
|---|---|
| Acoustic Mode: | Transverse |
| Operating Frequency: | 200 MHz |
| Light Polarization: | Linear |
| Interaction Material: | Tellurium Dioxide |
| Wavelength: | 2100 nm |
| Average Optical Power Handling: | 500 mW |
| Insertion Loss: | 5.0 dB |
| Extinction Ratio: | 18 dB |
| Extinction Ratio (RF ON/RF OFF): | 50 dB |
| Return Loss (RF ON/RF OFF): | 40 dB |
| Rise-time/fall-time (10%-90%): | 10 ns |
| Frequency: | 200 MHz |
| VSWR: | 1.3:1 |
| Input Impedance: | 50 Ω |
| RF Power: | 3.0 W |
| RF Connector: | SMA |
| Frequency Shift: | +200 MHz Upshift |
| Fiber Type: | PM1950 |
| Fiber Connector: | FC/APC |
| Fiber Length: | 1.0 m |
Download Data Sheet
Features
- Model: GA-FCAOM-2100-M200-t1-S5
- Interaction Material: Tellurium Dioxide
- Wavelength: 2100 nm (Other wavelengths available on request)
- Average Optical Power Handling: 500 mW
- Insertion Loss: Typical 5.0 dB, Max 6.0 dB
- Extinction Ratio: 18 dB Linear (PM fibre)
- Extinction Ratio (RF ON/RF OFF): 50 dB
- Return Loss (RF ON/RF OFF): 40 dB
- Rise-time/Fall-time (10%-90%): Typical 10 ns, Max 12 ns
- Frequency: 200 MHz
- VSWR: 1.3:1
- Input Impedance: 50 Ω
- RF Power: Typical 3.0 W, Max 3.5 W (Higher RF power will cause damage)
- RF Connector: SMA
- Frequency Shift: +200 MHz Upshift
- Fiber Type: PM1950
- Fiber Connector: FC/APC
- Fiber Length: 1.0 m
Applications
Fiber-optic sensing, optical communications, quantum technology, etc.
Frequently Asked Questions
What is the model number of the product?
The model number of the product is GA-FCAOM-2100-M200-t1-S5.
What is the typical wavelength for this device?
The typical wavelength for this device is 2100 nm.
What is the maximum average optical power handling?
The maximum average optical power handling is 500 mW.
What is the typical insertion loss of the device?
The typical insertion loss of the device is 5.0 dB.
What is the extinction ratio when the RF is on and off?
The extinction ratio when the RF is on and off is 50 dB.
What type of fiber connector is used in this device?
The device uses an FC/APC fiber connector.
What is the maximum RF power the device can handle?
The maximum RF power the device can handle is 3.0 W. Higher RF power will cause damage.
