AOTF Acousto-Optic Tunable Filters

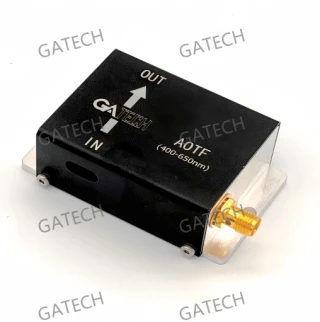

Acousto-Optic Tunable Filter

Acousto-Optic Tunable Filter

Sold by: Guangao Technology Ships from: China
Specifications
Wavelength Range: 400 – 2000 nm
Number Of Wavelength Channels: 1
Max Diffraction Efficiency: 85 %
Polarization: Unpolarized, Linear
Wavelength Range: Ultraviolet to Infrared

Did You Know?

An Acousto-Optic Tunable Filter (AOTF) is a pass-band transmission filter, which exploits the acousto-optic interaction inside an anisotropic medium. Anisotropy is a characteristic of a material that implies different properties in different directions. AOTFs are generally fabricated in Tellurium Dioxide, operating within the visible to near/mid infra-red. These filters are used to rapidly and dynamically select a specific wavelength from a broadband or multi-line laser source. As the applied radio frequency is varied, the transmitted wavelength changes, thus “tuning” the wavelength of the beam or image in tens of microseconds or less.

Frequently Asked Questions

An AOTF is a solid-state, electronically tunable optical filter that uses the acousto-optic effect in an anisotropic crystal to diffract and spectrally select light. An RF-driven acoustic wave propagating in the crystal creates a dynamic grating; only wavelengths satisfying the phase-matching (Bragg) condition are efficiently diffracted into a specific output angle, enabling rapid, programmable wavelength selection without moving parts.

What is an AOTF?

An AOTF (Acousto-Optic Tunable Filter) is a solid-state, electronically tunable optical filter that uses acoustic waves in a crystalline medium to diffract and spectrally select light. By varying the applied RF frequency, the AOTF changes its transmission wavelength without moving parts, enabling rapid, programmable wavelength selection for imaging, spectroscopy, and laser systems.

Typical AOTF specifications

On FindLight you will find AOTF devices designed for UV, visible, and IR operation. Key parameters include:

  • Wavelength range: Common AOTF models cover bands such as 400–700 nm (VIS), 650–1100 nm (NIR), or 1–5 µm (IR), with single or multi-octave coverage.
  • Spectral resolution: Full-width at half maximum (FWHM) typically from 0.1 to several nanometers, depending on aperture size, interaction length, and wavelength.
  • Aperture and clear aperture: Typical AOTF apertures range from a few millimeters to >10 mm, affecting throughput, divergence tolerance, and imaging performance.
  • Diffraction efficiency: Peak first-order efficiency may reach tens of percent, varying with polarization, wavelength, and RF power.
  • RF drive: Center frequencies often span 30–200 MHz or higher, with specified RF power, impedance, and modulation bandwidth.
  • Crystal material and polarization: TeO2, quartz, and other birefringent media are used; many AOTF devices are polarization-sensitive and may require input polarization control.
  • Clear aperture geometry and acceptance angle: Critical for imaging AOTF applications and coupling from fiber or free-space beams.

Typical AOTF applications

An AOTF is used in hyperspectral imaging, fluorescence microscopy, Raman and absorption spectroscopy, laser wavelength selection, fiber-laser pulse shaping, and multi-line laser beam conditioning. Fast electronic tuning makes an AOTF suitable for wavelength-scanning instruments, programmable notch or bandpass filtering, and multi-channel detection systems.

Buyer guidance on FindLight

When selecting an AOTF, compare wavelength coverage, spectral resolution, aperture size, diffraction efficiency, and RF drive requirements against your light source, detector, and system geometry. Verify whether the AOTF includes an RF driver or requires a separate module, and review mounting, thermal management, and interface constraints.

On FindLight you can evaluate available AOTF products side by side, inspect datasheets, and request quotes directly from manufacturers. No registration is required to contact vendors, allowing you to obtain lead times, customization options, and integration support for your AOTF-based optical system.
