Laser Pulse Pickers

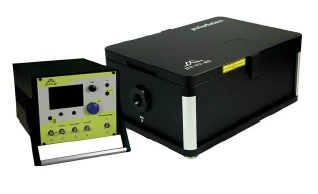

The pulseSelect is an acousto-optical single pulse selector developed for the special demands of femtosecond laser technology. Pulse distortion is minimized by a low dispersive design and the use of reflective optics.  The use of an acousto-optical selection element allows for high repetition rates ...

Specifications

Wavelength Range: 680 – 1080 nm
Max Laser Input Power: 5 W
Input Frequency Range: 70 – 85 MHz
Input Polarization: Horizontal, Vertical

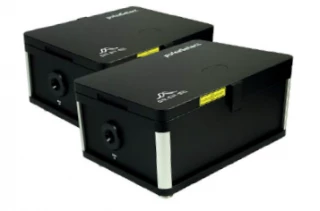

The pulseSelect Dual is a single pulse selector using two acousto-optical Bragg cells. The pulseSelect Dual comes in two variants: pulseSelect Dual (serial) This version is designed to allow for highest contrast ratio of above 6000:1 by placing two Bragg cells, both synchronized to common clock, in serial configuration ...

Specifications

Wavelength Range: 680 – 1080 nm
Max Laser Input Power: 5 W
Input Frequency Range: 70 – 85 MHz
Input Polarization: Horizontal, Vertical
The pulseSelect is an acousto-optical single pulse selector developed for the special demands of femtosecond laser technology. Pulse distortion is minimized by a low dispersive design and the use of reflective optics.  The use of an acousto-optical selection element allows for high repetition rates ...

Specifications

Wavelength Range: 500 – 1600 nm
Max Laser Input Power: 2 W
Input Frequency Range: 70 – 85 MHz
Input Polarization: Horizontal, Vertical
The pulseSelect is an acousto-optical single pulse selector developed for the special demands of femtosecond laser technology. Pulse distortion is minimized by a low dispersive design and the use of reflective optics.  The use of an acousto-optical selection element allows for high repetition rates ...

Specifications

Wavelength Range: 680 – 1080 nm
Max Laser Input Power: 5 W
Input Frequency Range: 70 – 85 MHz
Input Polarization: Horizontal, Vertical
The pulseSelect Dual is a single pulse selector using two acousto-optical Bragg cells. The pulseSelect Dual comes in two variants: pulseSelect Dual (serial) This version is designed to allow for highest contrast ratio of above 6000:1 by placing two Bragg cells, both synchronized to common clock, in serial configuration ...

Specifications

Wavelength Range: 680 – 1080 nm
Max Laser Input Power: 5 W
Input Frequency Range: 70 – 85 MHz
Input Polarization: Horizontal, Vertical
The pulseSelect Dual is a single pulse selector using two acousto-optical Bragg cells. The pulseSelect Dual comes in two variants: pulseSelect Dual (serial) This version is designed to allow for highest contrast ratio of above 6000:1 by placing two Bragg cells, both synchronized to common clock, in ...

Specifications

Wavelength Range: 500 – 1600 nm
Max Laser Input Power: 2 W
Input Frequency Range: 70 – 85 MHz
Input Polarization: Horizontal, Vertical

Frequently Asked Questions

In simple terms, a Laser Pulse Picker is an electronically controlled optical switch. They are acousto-optic or electro-optic modulator devices used to select specified pulses of laser systems while blocking all the others.

As described in the answer to the question above, pulse pickers are used to extract a single pulse from a continuous and fast pulse train. Common applications include regenerative amplifier control, which is a process used to generate short yet strong pulses of laser light. Pulse picking is a common task in the laser industry, where engineers must resample the repetition rate of pulsed lasers.

A Laser Pulse Train is a regular sequence of pulses that may last over a long period of time. The repetition rate of these ultrashort pulses is typically 10MHz – 10GHz. All pulsed lasers generate some form of a pulse train. For example, an ultrafast amplified laser might generate a train of pulses that are separated from each other by 1/1000s of a second. In this case, we would say that the it generates a 1kHz pulse train.

The laser Pulse Picker will reduce a laser repetition rate by applying short voltage pulses to an electro-optical crystal, allowing control over the state of pulses in the pulse train. So the operation of a pulse picker is split into two key elements: the application of voltage pulses, and the synchronization or temporal alignment of this applied voltage with optical pulses.

Important properties include switching time (for high input repetition rates), max repetition rate, energy loss, optical bandwidth (for broadband pulses), chromatic dispersion, aperture, acceptance angle, and optical nonlinearity (for pulses with high peak powers).

The key parameters to study when selecting a laser pulse picker for your applications are the wavelength range, input frequency range, maximum insertion loss, input polarization, and maximum laser input power.

Laser Pulse Pickers: Precision Timing for High-Speed Optical Systems

Laser pulse pickers are essential tools in advanced photonics, enabling precise selection of individual pulses from high-repetition-rate laser sources. By utilizing acousto-optic modulators (AOMs), these devices offer rapid, electronic control over pulse timing, making them indispensable in applications ranging from ultrafast spectroscopy to quantum optics.

What Is a Laser Pulse Picker?

A laser pulse picker is an acousto-optic device that selectively transmits individual pulses from a continuous pulse train. It operates by applying an RF signal to an AOM, creating a dynamic diffraction grating that interacts with the incoming laser beam. By tuning the RF frequency, the device can diffract specific pulses while blocking others, effectively reducing the laser repetition rate.

Key features include:

  • High-speed operation: Capable of selecting pulses at rates up to several gigahertz.

  • Low insertion loss: Ensures minimal attenuation of transmitted pulses.

  • High extinction ratio: Provides excellent suppression of unwanted pulses.

Applications of Laser Pulse Pickers

Laser pulse pickers are utilized across various fields:

  • Ultrafast spectroscopy: Enables time-resolved measurements by isolating individual pulses for detection.

  • Quantum optics: Facilitates experiments requiring precise control over photon timing and synchronization.

  • Laser material processing: Allows for selective pulse delivery in micromachining and engraving applications.

  • Biomedical imaging: Enhances techniques like multiphoton microscopy by controlling pulse timing and intensity.

Choosing the Right Laser Pulse Picker

Selecting an appropriate laser pulse picker involves considering several factors:

  • Wavelength compatibility: Ensure the device is compatible with the laser's operating wavelength.

  • Repetition rate: Match the pulse picker’s capabilities with the laser's repetition rate.

  • Beam diameter: Verify that the device can accommodate the laser beam's size.

  • Control interface: Determine the ease of integration with existing systems, including software and hardware interfaces.

Explore Laser Pulse Pickers on FindLight

FindLight offers a curated selection of laser pulse pickers from leading manufacturers. Our platform allows you to filter products based on key specifications, ensuring you find the perfect match for your application. Whether you're working in ultrafast spectroscopy, quantum optics, or another field, FindLight provides the tools you need to enhance your optical systems.

Did You know?

Laser pulse pickers are acousto-optic modulator (AOM) based devices designed to select pulses of ultrafast laser systems. Ultra-short pulses are in most cases generated by a mode-locked laser in the form of a pulse train, with a repetition rate of 10 MHz to 10 GHz. For various reasons, it is often necessary to pick certain pulses and block others. This can be achieved by using a laser pulse picker. The properties of a pulse picker can be critical based on the application, such as the switching time, maximum repetition rate, energy loss of transmitted pulses, and optical bandwidth, just to name a few.
