APE PulseSelect Standard
Description
The pulseSelect is an acousto-optical single pulse selector developed for the special demands of femtosecond laser technology. Pulse distortion is minimized by a low dispersive design and the use of reflective optics. The use of an acousto-optical selection element allows for high repetition rates and high contrast ratio. The pulse repetition rate can be reduced by using an adjustable internal frequency divider or by external triggering. With the pulseSelect low division ratios down to fREP/2 are possible. It has an integrated RF power limitation and protection circuit to prevent modulator damage. For highest stability the phase of the RF carrier frequency is locked to the repetition rate of the laser that is used with. Besides the standard version suited for fs or ps mode-locked Ti:Sapphire lasers, custom wavelength ranges in the VIS are available. For improved contrast ratio of above 6000:1 A·P·E offers the double stage version pulseSelect DUAL (seriell) and for selecting pulses from two synchronized laser sources simultaneously the pulseSelect DUAL parallel.
APE PulseSelect Standard
Specifications |
|
|---|---|
| Wavelength Range: | 500-1600nm |
| Max Laser Input Power: | 2 W |
| Input Frequency Range: | 70-85MHz |
| Input Polarization: | Horizontal, Vertical |
Features
Reduction of the repetition rate of mode-locked lasers
Low dispersion
Suitable for fs and ps mode-locked lasers
Division ratios down to fREP/2 (optional)
Applications
Laser pulse selection
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The pulseSelect is an acousto-optical pulse picker designed for the special demands of femtosecond laser technology. It is used for laser pulse selection.
The pulseSelect minimizes pulse distortion through the use of a low dispersive design and reflective optics.
Yes, the pulse repetition rate can be reduced with the pulseSelect using an adjustable internal frequency divider or by external triggering.
The pulseSelect allows for division ratios down to fREP/2 (optional).

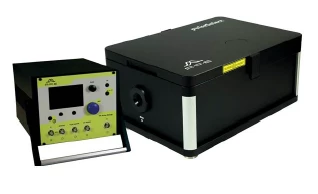

The pulseSelect Single consists of an optical module and control electronics, while the pulseSelect Dual is available in two variants: Serial and Parallel. The Serial variant offers an improved contrast ratio of over 6000:1, while the Parallel version allows the simultaneous picking of pulses from two synchronized laser sources.
