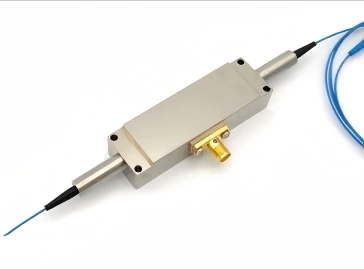

Thumbnail of Acousto-Optic Modulator GA-FCAOM-1064-M200-o1-R3 photo 1

Description

The high speed fiber coupled acousto-optic modulator has the characteristics of fast rise time, wide modulation bandwidth range, high laser peak power, and its compact structure, high reliability, suitable for harsh environments.

Acousto-Optic Modulator GA-FCAOM-1064-M200-o1-R3

Guangao Technology

Specifications

Center Wavelength: 1060 nm
Operational Wavelength Range: 1030 – 1090 nm
Acoustic Mode: Transverse
Operating Frequency: 200 MHz
Light Polarization: Linear
Interaction Material: Tellurium Dioxide
Wavelength: 1060 nm
Average Optical Power Handling: 1 W
Insertion Loss: 2.5 dB
Extinction Ratio: 18 dB
Extinction Ratio(RF ON/RF OFF): 50 dB
Return Loss(RF ON/RF OFF): 40 dB
Rise-time/fall-time(10%-90%): 10 ns
Frequency: 200 MHz
VSWR: 1.3:1
Input Impedance: 50 Ω
RF Power: 2.5 W
RF Connector: SMA
Frequency Shift: 200 MHz Upshift
Fiber Type: PM980
Fiber Connector: FC/APC or FC/PC
Fiber Length: 1.0 m

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Interaction Material: Tellurium Dioxide
  • Operating Wavelength: 1030–1090 nm (Typical: 1060 nm; other wavelengths available upon request)
  • Average Optical Power Handling: Up to 3 W (Typical: 1 W)
  • Insertion Loss: Typical 2.5 dB, Maximum 3.0 dB
  • Extinction Ratio (Linear, PM Fiber): 18 dB
  • Extinction Ratio (RF ON/OFF): 50 dB
  • Return Loss (RF ON/OFF): 40 dB
  • Rise/Fall Time (10%–90%): Typical 10 ns, Maximum 12 ns (Customizable)
  • Operating Frequency: 200 MHz
  • Frequency Shift: 200 MHz (Upshift)
  • VSWR: 1.3:1
  • Input Impedance: 50 Ω
  • RF Power Input: Max 2.5 W (Damage risk above 3.0 W)
  • RF Connector Type: SMA
  • Fiber Type: PM980
  • Fiber Connector Options: FC/APC or FC/PC
  • Fiber Length: 1.0 meter

Applications

  • Ultrafast Lasers
  • Fiber Optic Sensing
  • Cold Atoms
  • Quantum Communication

Frequently Asked Questions

What is the model number of the Fiber-AOM?
The model number is GA-FCAOM-1064-M200-o1-R3.
What is the typical wavelength range for this device?
The typical wavelength range is 1030 nm to 1090 nm, with a typical wavelength of 1060 nm. Other wavelengths are available on request.
What is the average optical power handling capacity of the Fiber-AOM?
The average optical power handling capacity is 3W, with a typical power handling of 1W.
What is the extinction ratio of the device?
The extinction ratio is 18 dB for linear (PM fiber) and 50 dB for RF ON/RF OFF.
What is the rise-time/fall-time specification for the device?
The rise-time/fall-time is 12 ns (min) and 10 ns (typical), and it is customizable.
What type of fiber is used in this device?
The fiber type used is PM980.
What are the available fiber connectors for this device?
The available fiber connectors are FC/APC or FC/PC.

Got more questions? Use the inquiry form to ask the supplier directly.
