Description

The acousto-optic Q switch can modulator continuous laser into giant pulse lasers with different frequencies, different pulse widths, and different codes.

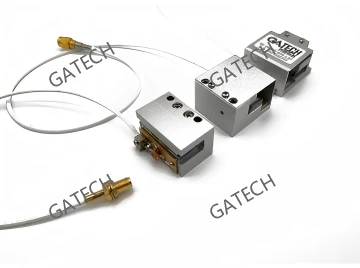

Acousto-Optic Q-Switch Conduction-Cooled GA-CQ080-800-A15-HC1

Guangao Technology

Specifications

Center Wavelength: 800 nm
Acoustic Mode: Longitudinal
Operating Frequency: 80 MHz
Light Polarization: Linear
Optical Power Density: 1 KW/cm2
Deflection Angle: 11.1 mrad
Interaction Material: Crystal Quartz
Wavelength: 800 nm
Frequency: 80 MHz
Damage Threshold: ≥ 1 GW/cm²
Transmission: > 99.6 %
Active Aperture: 1.5 mm
Polarization: Linear
Acoustic Mode: Compressional
Separation Angle: 11.1 mrad
Rise-time (10-90%): 113 ns/mm
VSWR @68MHz: <1.3:1
Loss Modulation: 85%
RF Connector: SMA-F
RF Line Length: 180-200mm
Max. RF Power: 20 W (Nom)
Cooling: Conduction-cooled
Storage Temp.: -20 to +70 ℃

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

It features high peak power, narrow pulse width, high repetition frequency, fast modulation speed, high on-off extinction ratio. The losses in the "off" state are extremely low, can maximize the output intensity and has excellent reliability.

Applications

  • Laser Marking
  • Laser Engraving
  • Laser Medicine
  • Laser Ranging

Frequently Asked Questions

What is the primary function of the GA-CQ080-800-A15-HC1 acousto-optic modulator?
The primary function of the GA-CQ080-800-A15-HC1 acousto-optic modulator is to control and modulate a laser beam using sound waves within a crystal quartz material.
What is the operating wavelength for this acousto-optic modulator?
The operating wavelength for the GA-CQ080-800-A15-HC1 acousto-optic modulator is 800 nm.
What is the maximum RF power the modulator can handle?
The maximum RF power the modulator can handle is 20 W nominal.
What is the damage threshold for this device?
The damage threshold for the GA-CQ080-800-A15-HC1 acousto-optic modulator is greater than or equal to 1 GW/cm².
What type of cooling does the modulator require?
The GA-CQ080-800-A15-HC1 acousto-optic modulator requires conduction cooling.
What is the VSWR at 68 MHz for this modulator?
The VSWR at 68 MHz for this modulator is less than 1.3:1.
What is the storage temperature range for this device?
The storage temperature range for the GA-CQ080-800-A15-HC1 acousto-optic modulator is from -20 to +70 ℃.
