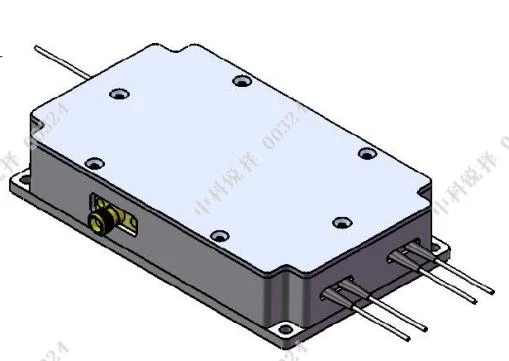

Dual-output AOM Integrated Module for Quantum Optical System

Name: Dual-output AOM Integrated Module for Quantum Optical System
Brand: CSRayzer Optical Technology
Availability: InStock

Description

Using acousto-optic modulator (AOM) to control laser frequency, switch light and generate modulation sideband is a common technical means, which is often used in optical systems of quantum optics, cold atoms, ion traps, quantum calculation and quantum precision measurement. Dual-output AOM integrated optical module integrates two acousto-optic modulators with different frequency points in the same module, saving volume. The input and output are fiber-coupled outputs, and the wavelength can be customized at will from 400 to 1100 nm.

Specifications

Center Wavelength:	509 nm
Operational Wavelength Range:	400 – 1100 nm
Acoustic Mode:	Transverse
Operating Frequency:	80 MHz
Rising Edge:	≤40 ns
Switching Extinction Ratio:	≥55 dB
Polarization Extinction Ratio:	≥25 dB
Return Loss:	≥45 dB
Peak Power:	2 W
Fiber Type:	SM/PM
Connector:	FC/APC or FC/PC

Download Data Sheet

Applications

Quantum optics

Cold atoms

Ion traps

Quantum calculation

Quantum precision measurement

Add to Watchlist (My Watchlist)

Ships from:

China

Sold by:

CSRayzer Optical Technology

On FindLight:

since 2020

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the Dual-output AOM Integrated Module used for?

The Dual-output AOM Integrated Module is used to control laser frequency, switch light, and generate modulation sidebands. It is commonly used in optical systems of quantum optics, cold atoms, ion traps, quantum calculation, and quantum precision measurement.

What is the central wavelength range for the module?

The central wavelength can be customized at will from 400 to 1100 nm, with standard options including 509, 633, 780, and 852 nm.

What is the structure of the module?

The module has a 1X4 structure.

What is the AOM frequency shift range?

The AOM frequency shift is optional between 80 MHz and 200 MHz.

What are the working and storage temperature ranges for the module?

The working temperature range is 0 to 50°C, and the storage temperature range is -40 to 85°C.

What is the peak power of the module?

The peak power of the module is 2 watts.

What types of fiber and connectors are compatible with the module?

The module is compatible with SM (single-mode) and PM (polarization-maintaining) fiber types, and it supports FC/APC or FC/PC connectors.
