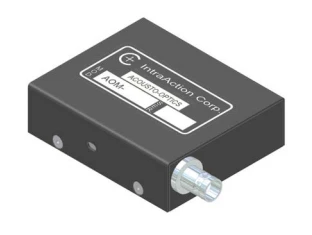

AOM-405AF1 ACOUSTO-OPTIC MODULATOR/FREQUENCY SHIFTER

Description

MODEL AOM-40AF SERIES ACOUSTO-OPTIC MODULATOR/FREQUENCY SHIFTER.

Specifications

Center Wavelength:	570 nm
Operational Wavelength Range:	440 – 700 nm
Acoustic Mode:	Transverse, Longitudinal
Operating Frequency:	40 MHz
Light Polarization:	Random, Linear, Circular, Elliptical
Optical Power Density:	50 KW/cm2
Deflection Angle:	6.9 mrad

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

INTENSITY MODULATION
OPTICAL FREQUENCY SHIFTING
LASER BEAM DEFLECTION
HIGH OPTICAL POWER CAPABILITY
HIGH RELIABILITY
EXCELLENT TEMPERATURE STABILITY

Request Quote

To: IntraAction Corp
Re: AOM-405AF1 ACOUSTO-OPTIC MODULATOR/FREQUENCY SHIFTER

Name

Work Email

Organization

Country

Your message to supplier

Get quotes from similar suppliers (Recommended)

Thank you, your message was sent successfully.

Ships from:: United States
Sold by:: IntraAction Corp
On FindLight:: since 2019

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What are the features of the AOM-405AF1?

The AOM-405AF1 features intensity modulation, optical frequency shifting, laser beam deflection, high optical power capability, high reliability, and excellent temperature stability.

What is the acoustic center frequency of the AOM-405AF1?

The acoustic center frequency of the AOM-405AF1 is 40 MHz.

What is the AOM-405AF1 Acousto-Optic Modulator/Frequency Shifter?

The AOM-405AF1 is a model of the AOM-40AF series Acousto-Optic Modulator/Frequency Shifter.

What is the drive power of the AOM-405AF1?

The drive power of the AOM-405AF1 is 4.5 watts (633 nm).

What is the optical frequency shift range of the AOM-405AF1?

The optical frequency shift range of the AOM-405AF1 is ±(30 to 50) MHz.
