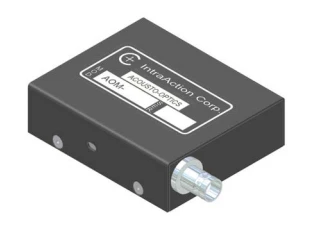

AOM-402AF3 ACOUSTO-OPTIC MODULATOR/FREQUENCY SHIFTER
Specifications
| Center Wavelength: | 900 nm |
|---|---|
| Operational Wavelength Range: | 700 – 1100 nm |
| Acoustic Mode: | Transverse, Longitudinal |
| Operating Frequency: | 40 MHz |
| Light Polarization: | Random, Linear, Circular, Elliptical |
| Optical Power Density: | 50 KW/cm2 |
| Deflection Angle: | 8.6 mrad |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
INTENSITY MODULATION
OPTICAL FREQUENCY SHIFTING
LASER BEAM DEFLECTION
HIGH OPTICAL POWER CAPABILITY
HIGH RELIABILITY
EXCELLENT TEMPERATURE STABILITY
Frequently Asked Questions
What is the AOM-402AF3 Acousto-Optic Modulator/Frequency Shifter used for?
The AOM-402AF3 Acousto-Optic Modulator/Frequency Shifter is used for intensity modulation, optical frequency shifting, and laser beam deflection.
What is the drive power of the AOM-402AF3?
The drive power of the AOM-402AF3 is 3 watts (780 nm).
What is the optical frequency shift range of the AOM-402AF3?
The optical frequency shift range of the AOM-402AF3 is ±(30 to 50) MHz.
What is the size of the AOM-402AF3?
The size of the AOM-402AF3 (less connector) is 0.88 H x 2.94 D x 2.46 W inches or 22.4 H x 74.7 D x 62.5 W mm.
What is the static optical insertion loss of the AOM-402AF3?
The static optical insertion loss of the AOM-402AF3 is 2 percent (633nm).
