Acousto-Optic Modulator / Frequency Shifter 1550nm 80MHz- AOM-1550-80M-05-S-C1-SMF28e-1-1-1-FA

CSRayzer Optical Technology
REQUEST QUOTE
Acousto-Optic Modulator / Frequency Shifter 1550nm 80MHz- AOM-1550-80M-05-S-C1-SMF28e-1-1-1-FA
  • image0
  • image1

OVERVIEW

This is an Acousto-Optic Modulator / Frequency Shifter operating at 1550 nm wavelength and 80 MHz repetition rate. It has a fast modulation speed, low insertion loss, high extinction ratio, low power consumption, good temperature stability and high performance reliability.


This optoelectronic product uses the principle of acousto-optic interaction to perform amplitude modulation and frequency shift processing on various lasers. It has an all-metal structure design, compact and sturdy hermetic packaging structure, and innovative packaging technology that ensures high reliability and temperature stability.

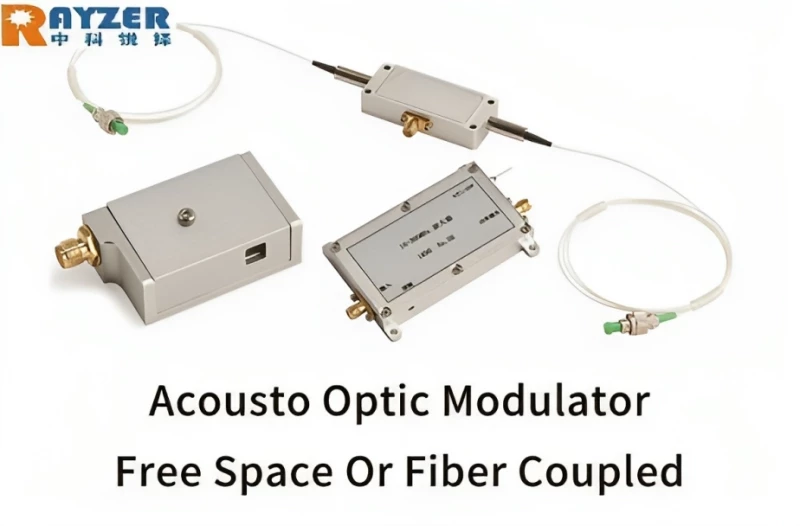

CSRayzer provides a range of free space or fiber-coupled acousto-optic modulators that are an ideal choice for Q-switched fiber lasers, laser Doppler coherent applications, ultrafast laser frequency pulse pickers, linear frequency adjustments and more. The company has frequency shifters operating in a wide range of wavelength spectrum from visible (300 nm) to infrared (2,000 nm) and frequency range from 35 MHz to 300 MHz.

SPECIFICATION

  • Center Wavelength: 1550 nm
  • Operational Wavelength Range: 1520 - 1580 nm
  • Acoustic Mode: Transverse
  • Operating Frequency: 80 MHz
  • Light Polarization: Random
  • Optical Power Density: 1 KW/cm2
  • Deflection Angle: 45 mrad
  • Fiber Connector: FC/APC
  • Fiber Type: SMF28e
  • Fiber Length: 1 m
  • Interaction Material: Tellurium Dioxide
  • Ultrasonic Velocity: 4200 m/s
  • Insertion Loss: 2.0 dB
  • Extinction Ratio (Turn On/Off): 50 dB
  • Rise-Time/Fall-Time: 50 ns
  • Return Loss: 40 dB
  • Voltage Standing Wave Ratio: 1.2:1
  • Average Optical Power: 0.5 W
  • Input Impedance: 50 Ω
  • Operating Temperature: -20 ~ +60 ℃
Download Data Sheet

Applications

Acousto-Optic Modulators (AOMs) from CS Rayzer can be used in a number of applications including:


-  Ultrafast (ps and fs) fiber laser systems
-  Acousto Optic Frequency Shifting
-  Laser Pulse Picker
-  Q-switched fiber lasers
-  Laser Doppler Velocimetry
-  Linear frequency adjustments

KEY FEATURES

This Acousto-Optic Modulator (AOM) comes with the following key features:


-  Low Insertion Loss
-  Compact Size
-  Stable Performance
-  Customized configuration Available
-  Low and efficient Cost
