Description
This is an Acousto-Optic Modulator (AOM) / Frequency Shifter operating at 1550 nm and 40 MHz repetition rate. It features fast modulation speed, low insertion loss, high extinction ratio, low power consumption, good temperature stability and high performance reliability. Thanks to these characteristics it is an ideal choice for Q-switching, laser pulse picking and ultrafast laser systems (in both picosecond and femtosecond range).
This optoelectronic device uses the principle of acousto-optic interaction to perform amplitude modulation and frequency shift processing on lasers. It operates in a wide wavelength range. It has an all-metal structure design, compact and sturdy hermetic packaging structure. Our proprietary packaging technology ensures high reliability and temperature stability.

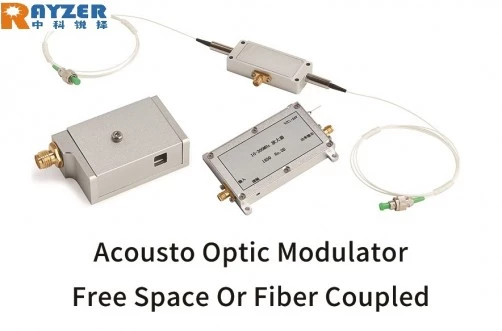

A wide range of products: CSRayzer provides a range of free space or fiber-coupled acousto-optic modulators, with wavelength range from 300 nm to 2000 nm, and frequency range from 35 MHz to 300 MHz. They are the perfect choice for Q-switched fiber lasers, laser Doppler coherent applications, ultrafast laser frequency pulse pickers, linear frequency adjustment.
Acousto-Optic Modulator / Frequency Shifter 1550nm 40MHz
Specifications
Center Wavelength: | 1550 nm |
---|---|
Operational Wavelength Range: | 1520 – 1580 nm |
Acoustic Mode: | Transverse |
Operating Frequency: | 40 MHz |
Light Polarization: | Not Specified |
Optical Power Density: | 1 KW/cm2 |
Deflection Angle: | 45 mrad |
Material: | TeO2 |
Min. Polarization Extinction Ratio: | 18 dB |
Min. Extinction Ratio (1st Order On/Off): | 50 dB |
Max. Insertion Loss: | 2.5 dB |
Max. Rise-Time/Fall-Time: | 60 ns |
Max. Voltage Standing Wave Ratio: | 1.2 : 1 |
Fiber Type: | PM1550 Panda Fiber with 900 μm Loose Tube |
Pigtail Fiber Length: | 1 m |
Connector: | FC/APC |
Features
- Low insertion loss
- Compact footprint
- Stable performance
- Availability of custom configurations
- Low price to quality ratio
Applications
Thanks to robust performance characteristics this Acousto-Optic Modulator / Frequency Shifter 1550nm 40MHz is a great fit for a number of demanding applications including:
- Ultrafast picosecond and femtosecond fiber laser systems
- Acousto-optic frequency shifters
- Laser pulse pickers
Frequently Asked Questions
What is the operating wavelength range of the Acousto-Optic Modulator / Frequency Shifter?
What is the frequency range of the Acousto-Optic Modulator / Frequency Shifter?
What is the maximum insertion loss of the Acousto-Optic Modulator / Frequency Shifter?
What is the minimum polarization extinction ratio of the Acousto-Optic Modulator / Frequency Shifter?
What is the maximum average optical power of the Acousto-Optic Modulator / Frequency Shifter?
