Description
This is an Acousto-Optic Modulator operating at 1064nm wavelength and 200MHz repetition rate. It features outstanding operating characteristics including fast modulation speed, low insertion loss, high extinction ratio, low power consumption, good temperature stability and high performance reliability.
The robust performance parameters make this Acousto-Optic Modulator the perfect component choice for ultrafast laser systems, optical switches and more.
Wide Range of Products: CS Rayzer offers a variety of acousto-optic modulators with wavelength range from 300 nm to 2000 nm, and frequency range from 35 MHz to 300 MHz. Please consult the data sheet for ordering information:
Ordering Information: AOM‐①‐②‐③‐④‐⑤‐⑥‐⑦‐⑧‐⑨‐⑩
- Signal Wavelength: 1064‐1064nm | 1550‐1550nm | 1310‐1310nm
- Frequency: 200‐200MHz | 100‐100 MHz | 80‐80MHz
- Handing Power: 05‐500mW | 10‐1W | 50‐5W
- Function: S‐Frequency | A‐Amplitude Modulation

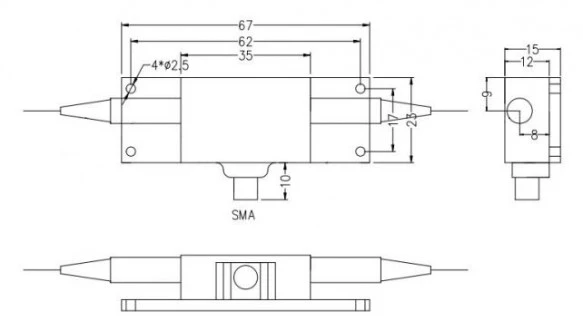

- Package Dimension: C1‐67*23*15
- Fiber Type: PM980‐PM980 | PM1550‐PM1550 | SMF28e‐ SMF28e
- Fiber Length: 1‐1m | 1.5‐1.5m
- Fiber Jacket: 0‐Bare Fiber | 1‐900μm Loose Tube
- Jacket Length: 1‐1m | S‐Specify
- Connector: FU‐FC/PC | FA‐FC/APC | S‐specify

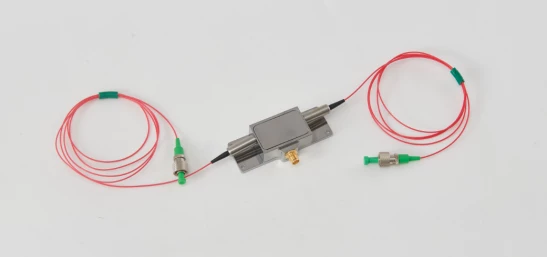

Acousto-Optic Modulator 1064nm 200MHz PM980
Specifications
| Center Wavelength: | 1064 nm |
|---|---|
| Operational Wavelength Range: | 1030 – 1090 nm |
| Acoustic Mode: | Longitudinal |
| Operating Frequency: | 200 MHz |
| Light Polarization: | Not Specified |
| Optical Power Density: | 0.5 KW/cm2 |
| Deflection Angle: | 12.66 mrad |
| Rise/fall Time: | 10 ns |
| Insertion Loss: | 2.5 dB |
| Ultrasonic Velocity: | 4200 m/s |
| Extinction Ratio (Turn On/Off): | 50 dB |
| Polarization Extinction Ratio: | 18 dB |
| Return Loss: | 40 dB |
| Voltage Standing Wave Ratio: | 1.2 : 1 |
| Peak Optical Power (Pulse): | 1 kW |
| Input Impedance: | 50 Ω |
| RF Power: | 2.5 W |
| Device Interface: | SMA |
| Fiber Type: | PM980 |
| Fiber Length: | 1 m |
| Fiber Connector: | FC/APC |
Download Data Sheet
Features
- Low Insertion Loss
- Compact Size
- Stable Performance
- Customized configuration Available
- Low and efficient Cost
Applications
Thanks to its outstanding performance parameters this Acousto-Optic Modulator is a preferred choice for many applications including:
- Ultrafast fiber laser systems
- Optical Switch
- Acousto-Optic Frequency Shifters
- Laser Pulse Pickers
- Amplitude Modulation
Frequently Asked Questions
What is the operating wavelength of the Acousto-Optic Modulator?
The Acousto-Optic Modulator operates at a wavelength of 1064nm.
What is the repetition rate of the Acousto-Optic Modulator?
The repetition rate of the Acousto-Optic Modulator is 200MHz.
What are the key features of the Acousto-Optic Modulator?
The key features of the Acousto-Optic Modulator include fast modulation speed, low insertion loss, high extinction ratio, low power consumption, good temperature stability, and high performance reliability.
What applications is the Acousto-Optic Modulator suitable for?
The Acousto-Optic Modulator is suitable for applications such as ultrafast fiber laser systems, optical switches, acousto-optic frequency shifters, laser pulse pickers, and amplitude modulation.
What is the range of wavelengths and frequencies available for the acousto-optic modulators?
The acousto-optic modulators offered by CS Rayzer have a wavelength range from 300nm to 2000nm and a frequency range from 35MHz to 300MHz.
