Acousto-Optic Modulator 1053nm 200M
Description

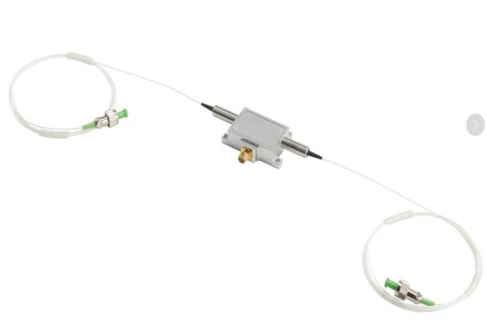

The CSRayzer AOM-1053-200M-05-C1-PM980-1-1-1-FA is a high-performance fiber-coupled acousto-optic modulator designed for precision optical signal modulation at 1053 nm. Utilizing high-quality tellurium dioxide as the interaction material, this device delivers a stable modulation frequency of 200 MHz, making it ideal for Q-switching, pulse shaping, and intensity modulation in advanced laser systems. It supports up to 500 mW average optical power and 0.5 kW peak power, and is built with PM980 polarization-maintaining fiber to ensure high polarization extinction ratios and excellent signal integrity.
With a compact footprint (67 × 23 × 15 mm) and integrated FC/APC connector, the AOM is suitable for integration into tight optical setups. It offers fast rise/fall times (≤10 ns), low insertion loss (≤2.5 dB), and a high on/off extinction ratio (≥45 dB), ensuring efficient and precise light control. Engineered for robust operation across a broad temperature range (-10°C to +65°C), this AOM is well-suited for use in scientific research, industrial laser systems, and advanced photonics applications.
Acousto-Optic Modulator 1053nm 200M
Specifications |
|
|---|---|
| Center Wavelength: | 1053 nm |
| Operational Wavelength Range: | 1030 – 1090 nm |
| Acoustic Mode: | Longitudinal |
| Operating Frequency: | 200 MHz |
| Light Polarization: | |
| Optical Power Density: | 0.5 KW/cm2 |
| Deflection Angle: | 12.66 mrad |
| Fiber Type: | PM980 |
| Rise/fall Time: | 10 ns |
| Interaction Material: | Tellurium Dioxide |
| Operating Wavelength Range: | ±20 nm |
| Max. Insertion Loss: | 2.5 dN |
| Min. Polarization Extinction Ratio: | 20 dB |
| Max. Rise/Fall Time (10–90%): | ≤1.5:1 |
| Max. Average Optical Power: | 500 mW |
| Operating Temperature: | +10 to +65 °C |
| Storage Temperature: | -20 to +70 °C |
| AOM Package Dimensions: | 67 × 23 × 15 mm |
Features
- High Modulation Frequency: Operates at 200 MHz for fast and efficient modulation
- Narrowband Operation: Optimized for 1053 nm with ±20 nm range
- High Extinction Ratio: Delivers ≥45 dB on/off contrast for clean signal control
- Low Insertion Loss: Ensures high signal throughput with ≤2.5 dB typical loss
- Fast Response Time: ≤10 ns rise/fall time enables rapid signal switching
- Polarization Maintaining: PM980 fiber alignment preserves signal polarization
- Compact Design: 67 × 23 × 15 mm AOM housing for easy system integration
- FC/APC Connector: Ensures low back-reflection and reliable fiber coupling
Applications
- Laser Q-Switching: Enables precise control of laser pulse timing
- Pulse Shaping: Ideal for ultrafast laser systems requiring clean modulation
- Optical Signal Processing: Used in photonic circuits and research systems
- Spectroscopy and Sensing: Facilitates modulated light sources for detection
- High-Precision Machining: Integrated into industrial laser tools for fine control
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
The wavelength range of the acousto-optic modulator is from 300 nm to 2000 nm.
The frequency range of the acousto-optic modulator is from 35 MHz to 300 MHz.
The acousto-optic modulator can be used in ultrafast picosecond and femtosecond fiber laser systems, optical switches, acousto-optic frequency shifters, laser pulse pickers, and amplitude modulation.
The maximum insertion loss of the acousto-optic modulator is 2.5 dB.
The operating temperature range of the acousto-optic modulator is -10 to +65 degrees Celsius.
