Description
CSRayzer offers acousto-optic modulators with fast modulation speed, low insertion loss, high extinction ratio, low power consumption, good temperature stability and high performance reliability, with wavelength range from 300 nm to 2000 nm, and frequency range from 35 MHz to 300 MHz.
The AOM could be free space, or fiber coupled.

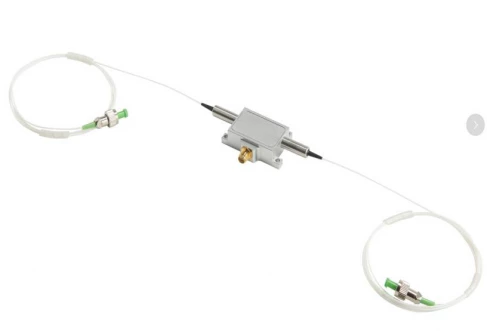

Acousto-Optic Modulator 1030nm 200MHz PM980
Specifications
| Center Wavelength: | 1030 nm |
|---|---|
| Operational Wavelength Range: | 1030 – 1060 nm |
| Acoustic Mode: | Longitudinal |
| Operating Frequency: | 200 MHz |
| Light Polarization: | Not Specified |
| Optical Power Density: | 0.5 KW/cm2 |
| Deflection Angle: | 12.66 mrad |
Download Data Sheet
Features
- Low Insertion Loss
- Compact Size
- Stable Performance
- Customized configuration Available
- Low and efficient Cost
Applications
- Ultrafast Picosecond and Femtosecond fiber Laser system
- Optical Switch
- Acousto-Optic Frequency Shifter
- Laser Pulse Picker
- Amplitude Modulation
- etc.
Frequently Asked Questions
What is the wavelength range of the acousto-optic modulator?
The wavelength range of the acousto-optic modulator is from 300 nm to 2000 nm.
What is the frequency range of the acousto-optic modulator?
The frequency range of the acousto-optic modulator is from 35 MHz to 300 MHz.
Can the acousto-optic modulator be fiber coupled?
Yes, the acousto-optic modulator can be fiber coupled.
What are the applications of the acousto-optic modulator?
The applications of the acousto-optic modulator include ultrafast picosecond and femtosecond fiber laser systems, optical switches, acousto-optic frequency shifters, laser pulse pickers, and amplitude modulation.
What is the maximum insertion loss of the acousto-optic modulator?
The maximum insertion loss of the acousto-optic modulator is 2.5 dB.
