Acousto-Optic Modulator / Frequency Shifter 1064nm 150MHz
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2020
Description

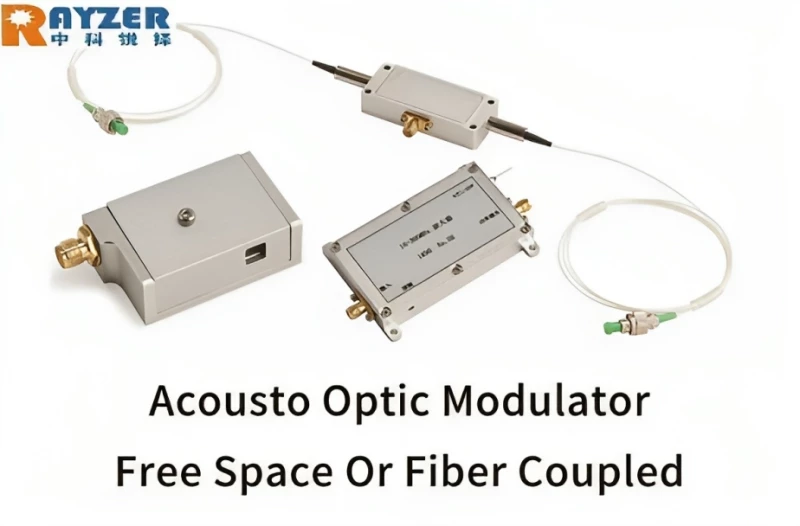

This is an Acousto-Optic Modulator / Frequency Shifter operating at 1064nm wavelength and 150MHz frequency. It has a fast modulation speed, low insertion loss, high extinction ratio, low power consumption, good temperature stability and high performance reliability.
This optoelectronic product uses the principle of acousto-optic interaction to perform amplitude modulation and frequency shift processing on various lasers. It has an all-metal structure design, compact and sturdy hermetic packaging structure, and innovative packaging technology that ensures high reliability and temperature stability.
CSRayzer provides a range of free space or fiber-coupled acousto-optic modulators that are an ideal choice for Q-switched fiber lasers, laser Doppler coherent applications, ultrafast laser frequency pulse pickers, linear frequency adjustments and more. The company has frequency shifters operating in a wide range of wavelength spectrum from visible (300 nm) to infrared (2,000 nm) and frequency range from 35 MHz to 300 MHz.
Acousto-Optic Modulator / Frequency Shifter 1064nm 150MHz
Specifications |
|
|---|---|
| Center Wavelength: | 1064 nm |
| Operational Wavelength Range: | 1030 – 1080 nm |
| Acoustic Mode: | Transverse |
| Operating Frequency: | 150 MHz |
| Light Polarization: | |
| Optical Power Density: | 1 KW/cm2 |
| Deflection Angle: | 45 mrad |
| Interaction Material: | Tellurium Dioxide |
| Max. Insertion Loss: | 2.1 dB |
| Min. Polarization Extinction Ratio: | 20 dB |
| Max. Rise-Time/Fall-Time (10%-90%): | 20 ns |
| Min. Extinction Ratio (Turn-On/Off): | 45 dB |
| Max. Voltage Standing Wave Ratio: | 1.5:1 |
| Input Impedance: | 50 Ω |
| Max. RF Power: | 2.5 W |
| Fiber Type: | PM980 / PM1060L |
| Operating Temperature: | -10 to +65 ℃ |
Features
This Acousto-Optic Modulator (AOM) comes with the following key features:
- Low Insertion Loss
- Compact Size
- Stable Performance
- Customized configuration Available
- Low and efficient Cost
Applications
Acousto-Optic Modulators (AOMs) from CS Rayzer can be used in a number of applications including:
- Ultrafast (ps and fs) fiber laser systems
- Acousto Optic Frequency Shifting
- Laser Pulse Picker
- Q-switched fiber lasers
- Laser Doppler Velocimetry
- Linear frequency adjustments
Frequently Asked Questions
The operating wavelength is 1064nm and the frequency is 150MHz.
The key features include low insertion loss, compact size, stable performance, customized configuration availability, and low and efficient cost.
This modulator can be used in ultrafast fiber laser systems, acousto-optic frequency shifting, laser pulse picking, Q-switched fiber lasers, laser Doppler velocimetry, and linear frequency adjustments.
The maximum insertion loss is 2.1dB.
The maximum average optical power is 500mW, but other power options are available upon request.
