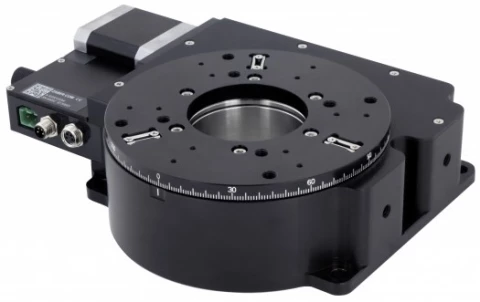

X-RST-E Series High Load Motorized Rotary Stages with Encoders
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2016
Description
Zaber's X-RST-E Series represents a pinnacle in motorized rotary stage technology, specifically engineered for high-load applications. These stages are designed with a robust built-in controller and motor encoders, ensuring precise angular positioning and seamless integration into various setups. With a substantial load capacity of 50 kg and a torque capability of up to 10 N-m, these stages are ideal for demanding environments where reliability and precision are paramount.
Each unit is a stand-alone solution, requiring only a standard 24-48 V power supply, making it highly versatile and easy to deploy. The intuitive design includes an indexed knob, allowing for manual control at variable speeds in both directions. This feature provides flexibility for users who need to operate the stage without a computer, simply by pressing and holding the knob to toggle between velocity and position modes, turning to move the stage, and pressing to stop.
Connectivity is streamlined through USB 2.0 or RS-232 ports, with the capability to daisy-chain multiple units, including other Zaber products. This daisy-chaining feature not only simplifies setup but also allows multiple devices to share a single power supply, reducing clutter and enhancing efficiency. The stages are equipped with convenient locking, 4-pin, M8 connectors, ensuring secure and reliable connections.
Overall, the X-RST-E Series is a testament to Zaber's commitment to simplifying motion control. These rotary stages are not only powerful and precise but also designed with user-friendliness in mind, making them a valuable addition to any high-load, precision-oriented application.
X-RST-E Series High Load Motorized Rotary Stages with Encoders
Specifications |
|
|---|---|
| Vacuum Compatible: | No |
| Built-in Controller: | Yes, Optional |
| Range: | 360 degrees |
| Unidirectional Accuracy: | 0.16 degrees |
| Repeatability: | <0.005 degrees |
| Backlash: | 0.05 degrees |
| Encoder Resolution: | 200 CPR |
| Stage Diameter: | 120 mm |
| Built-in Controller: | Yes |
| Aperture With Kinematic Mounting Options: | 50.8 mm |
| Centred Load Capacity: | 50 kg |
| Maximum Speed: | 24 degrees/s |
| Maximum Torque: | 10 N-m |
Features
- High Load Capacity: Supports up to 50 kg centered load, ideal for high load, angular positioning applications.
- Speed and Torque: Achieves speeds up to 24 deg/s and torque up to 10 N-m for efficient motion control.
- Built-in Controller: Comes with an integrated controller, allowing for daisy-chaining with other Zaber products.
- Encoder Feedback: Features encoder position feedback with slip/stall detection and automatic recovery for reliable operation.
- Power Sharing: Multiple X-Series products can share a single power supply, simplifying setup.
- Manual Control: Includes an indexed knob for smooth manual control at variable speeds in both directions.
- Connectivity: Connects to USB 2.0 or RS-232 ports, with convenient locking 4-pin M8 connectors for secure connections.
- 360 Degree Range: Offers a full 360-degree range with high precision and repeatability.
- Precision and Accuracy: Features a microstep size of 0.00015625 degrees and unidirectional accuracy of 0.16 degrees.
- Environmental Compliance: RoHS and CE compliant, ensuring safety and environmental protection.
- Versatile Operation: Operates in a temperature range of 0-50 degrees C, suitable for various environments.
Applications
- Precision Optical Alignment: Accurate angular positioning for mirrors, lenses, and filters
- Industrial Automation: Heavy-load rotary positioning for manufacturing equipment
- Robotics: Reliable rotational joints and tooling control
- Laboratory Research: Repeatable motion control for experiments and testing
- Metrology and Inspection: High-accuracy rotational positioning in measurement systems
Frequently Asked Questions
No, the Zaber X-RST-E Series motorized rotation stage has an indexed knob that provides smooth manual control at variable speeds in both directions for versatile operation even without a computer.
The load capacity of the Zaber X-RST-E Series motorized rotation stage is 50 kg centered load capacity.
The communication interface for the Zaber X-RST-E Series motorized rotation stage is RS-232.
The Zaber X-RST-E Series motorized rotation stage requires a standard 24-48 V power supply.
The torque rating of the Zaber X-RST-E Series motorized rotation stage is 10 N-m.
