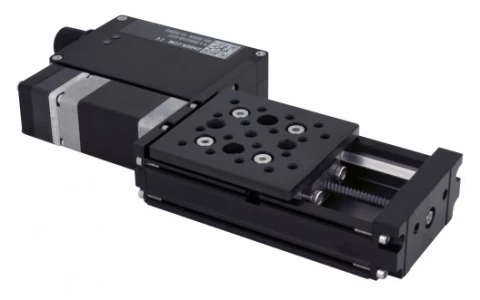

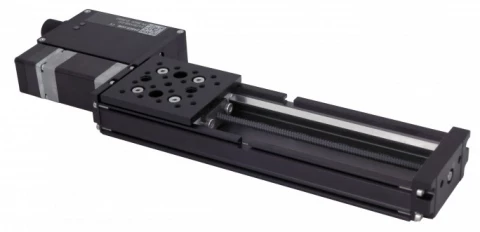

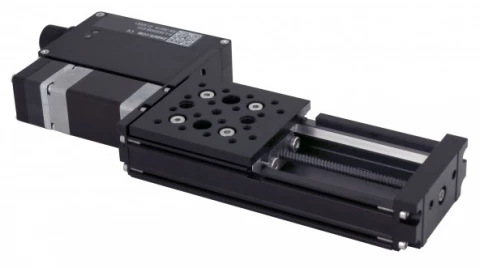

X-LSM-E Miniature Motorized Linear Stage with Encoder Controller
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2016
Description
Zaber's X-LSM-E Series represents a groundbreaking advancement in motion control technology, offering a compact yet powerful solution for precise linear movements. These miniature motorized linear stages are equipped with built-in motor encoders and controllers, making them ideal for applications that demand high thrust and speed capabilities. Designed as stand-alone units, they require only a standard 24 V or 48 V power supply, ensuring ease of integration into various systems.
The X-LSM-E Series is engineered for seamless operation, featuring a built-in motor encoder that facilitates closed-loop operation and slip/stall recovery. This ensures reliable performance even under demanding conditions. Additionally, an optional indexed knob allows for manual control, providing flexibility for users who prefer hands-on operation without the need for a computer interface.
Connectivity is a key feature of the X-LSM-E Series. These stages can connect to a computer via RS-232 or USB ports, and they support daisy-chaining with other Zaber products. This not only simplifies system configuration but also allows multiple devices to share a single power supply, thanks to the shared power capability of the daisy-chain. The units are equipped with secure, locking 4-pin M8 connectors, ensuring stable and reliable connections.
With a height of just 21 mm, the X-LSM-E Series is perfect for applications requiring a low profile. Despite their small size, these stages achieve impressive speeds of up to 104 mm/s and can handle loads up to 10 kg. The innovative design and precision engineering make these stages an excellent choice for multi-axis systems, particularly in applications like microscope stages. For enhanced control, the X-LSM-E Series can be paired with an X-JOY3 joystick controller, allowing for intuitive manual operation and the ability to save and recall stage positions effortlessly.
X-LSM-E Miniature Motorized Linear Stage with Encoder Controller
Specifications |
|
|---|---|
| Axes Of Motion: | One |
| Travel Range: | 200 mm |
| Load Capacity (Horizontal): | 10 kg |
| Load Capacity (Vertical): | 10 kg |
| Max Speed: | 104 mm/s |
| Built-in Controller: | Yes |
| Integrated Motor Mounted Encoder: | Yes |
Features
- Compact and Versatile Design: With a height of only 21 mm, the X-LSM-E Series is perfect for applications requiring a small profile, making it an ideal choice for microscope stages and other compact setups.
- Multiple Travel Options: Available in 25, 50, 100, 150, and 200 mm travel lengths to suit a wide range of applications.
- High Load Capacity: Capable of supporting up to 10 kg, these stages offer robust performance for demanding tasks.
- Fast and Powerful: Achieves speeds up to 104 mm/s and provides a maximum thrust of 55 N, ensuring rapid and efficient motion control.
- Built-In Controller and Encoder: Features an integrated 200 CPR motor-mounted encoder for closed-loop operation, slip/stall detection, and recovery.
- Easy Integration and Connectivity: Connects via RS-232 or USB ports and can be daisy-chained with other Zaber products, sharing power through a single supply.
- Precise Motion Control: Equipped with a precision lead screw drive system and needle roller bearings for smooth and accurate motion.
- Manual and Automated Control: Optional indexed knob for manual control and compatibility with the X-JOY3 joystick controller for multi-axis systems.
- Durable and Compliant: RoHS and CE compliant, ensuring high standards of safety and environmental responsibility.
- Temperature Range: Operates efficiently in environments ranging from 0 to 50 degrees Celsius.
- Sturdy Construction: Features stiffness in pitch of 55 N-m/deg and is equipped with M3 and M6 threaded holes for secure mounting.
- Plug and Play Setup: Designed for easy installation and operation, providing a hassle-free user experience.
- Advanced Features: Includes magnetic hall sensor for limit or home sensing and LED indicators for operational status.
Applications
- Microscope Stages: The X-LSM-E Series is ideal for creating multi-axis systems in an XY configuration, making them excellent choices for microscope stages.
- Precision Automation: With high speed and load capacity, these stages are perfect for applications requiring precise motion control in automation systems.
- Compact Spaces: At only 21 mm high, these miniature stages are suitable for applications where space is limited.
- Research and Development: The built-in motor encoder allows for precise control and slip/stall recovery, making them suitable for experimental setups.
- Industrial Applications: With a maximum thrust of 55 N and a load capacity of 10 kg, these stages can handle demanding industrial tasks.
- Educational Purposes: Their plug-and-play design makes them easy to set up and operate, ideal for educational settings where ease of use is crucial.
- Manual and Computer Control: An optional indexed knob and compatibility with RS-232 or USB ports provide versatile control options.
- Multi-Axis Systems: Daisy-chaining capability with other Zaber products allows for the development of complex multi-axis systems.
Frequently Asked Questions
Yes, the X-LSM-E Series linear stages can be used in a multi-axis system, particularly in the XY configuration for microscope stages.
Yes, the X-LSM-E Series linear stages can be controlled manually with an optional indexed knob.
The X-LSM-E Series linear stages require a standard 24 V or 48 V power supply.
The X-LSM-E Series linear stages have a load capacity of up to 10 kg.
The X-LSM-E Series linear stages can achieve speeds up to 104 mm/s.
